Sharp LC-26S7E-BK

2008-03-14
LC-19S7E-BK LC-26S7E-BK LC-32S7E-BK
17

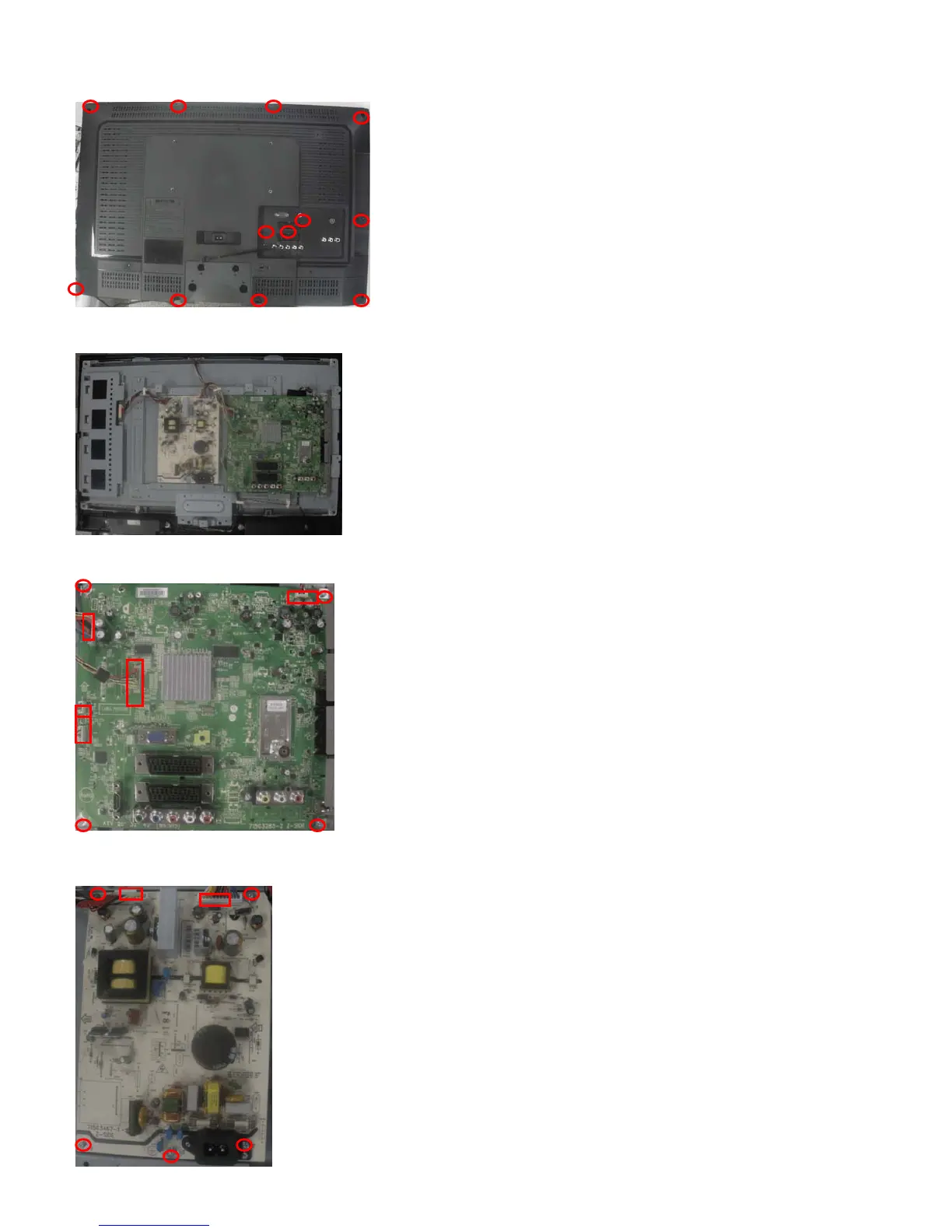

Step 2. Remove the REAR COVER Assy.
1. Remove the 12 screws. Detach the REAR COVER as Fig.5.
Fig.5
Step 3. Remove the Main, Power, IR, Key board, and the Speakers.
Fig.6
1. Remove the 4 screws,and disconnect 5 cables to move the Scaler Board as Fig.7
Fig.7
3. Remove the 5 screws and disconnect 2 cables. Detach the Power board as Fig.8.
Fig.8
