Sharp LC-26S7E-BK User Manual

2008-03-14
LC-19S7E-BK LC-26S7E-BK LC-32S7E-BK
19

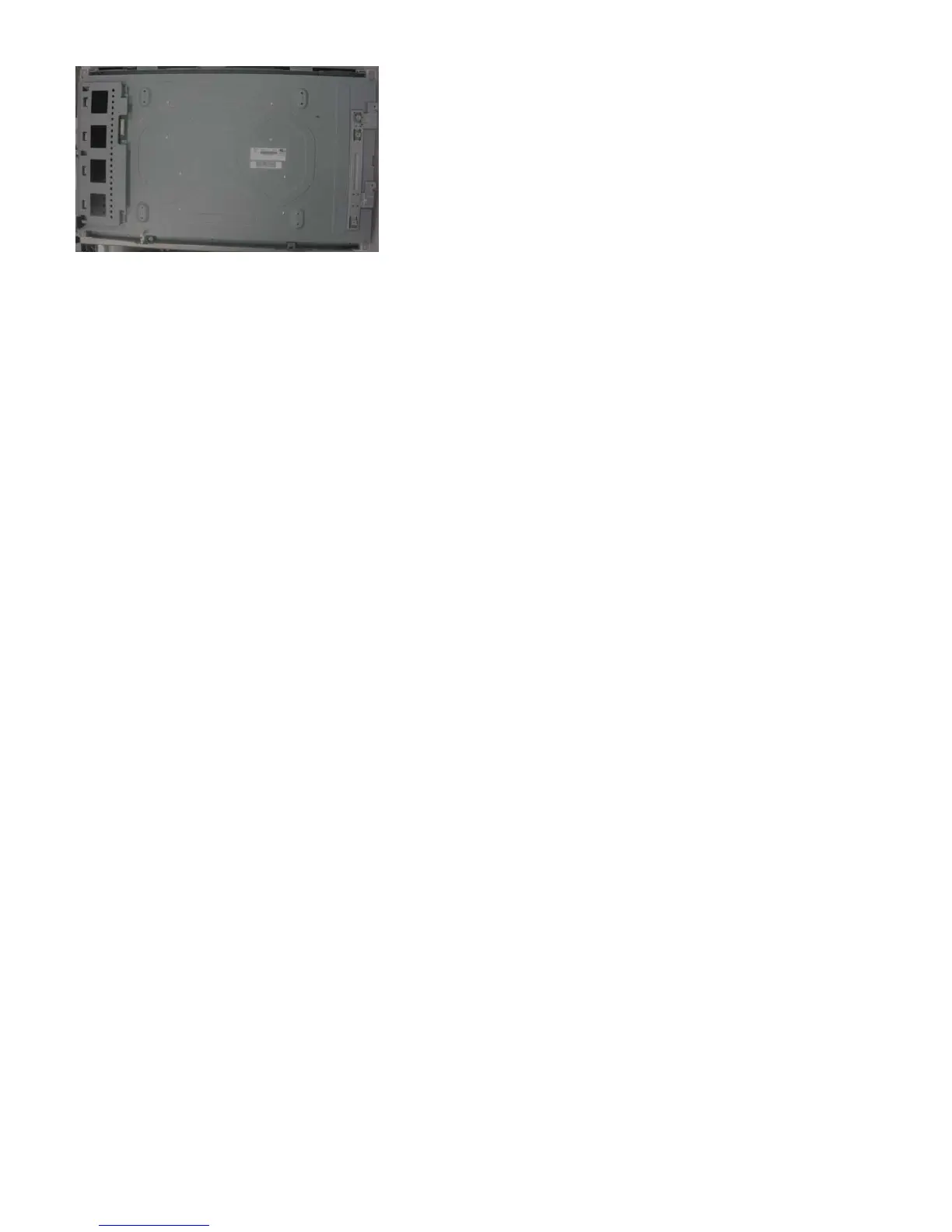

2. The below picture is panel as Fig.14
Fig.14
2. Set Re-assembly
To re-assemble the whole set, execute all processes in reverse order.
Notes:
a. While re-assembling, make sure that all cables are placed and connected in their original position.
b. Pay special attention not to damage the EMC foams at the SSB shielding. Check that EMC foams are put
correctly on their places.

Sharp LC-26S7E-BK Specifications

General

Game mode	No
Teletext function	Yes
Display diagonal	26 \
Display brightness	450 cd/m²
Display resolution	1366 x 768 pixels
Display technology	LCD
Viewing angle, vertical	150 °
Contrast ratio (typical)	800:1
Viewing angle, horizontal	160 °
RS-232 ports	0
Headphone outputs	1
SCART ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Product color	Black
Panel mounting interface	200 x 100 mm
Power consumption (sleep)	0.19 W
Power consumption (standby)	0.21 W
Power consumption (typical)	67.6 W
RMS rated power	10 W
Tuner type	Analog

Weight and Dimensions

Depth (with stand)	239.8 mm
Width (with stand)	657.8 mm
Height (with stand)	491.1 mm
Weight (with stand)	8400 g
Depth (without stand)	91.6 mm
Height (without stand)	448.4 mm
