LC-26SB25E/S/RU, LC-32SB25E/S/RU, LC-42SB55E/S/RU
15

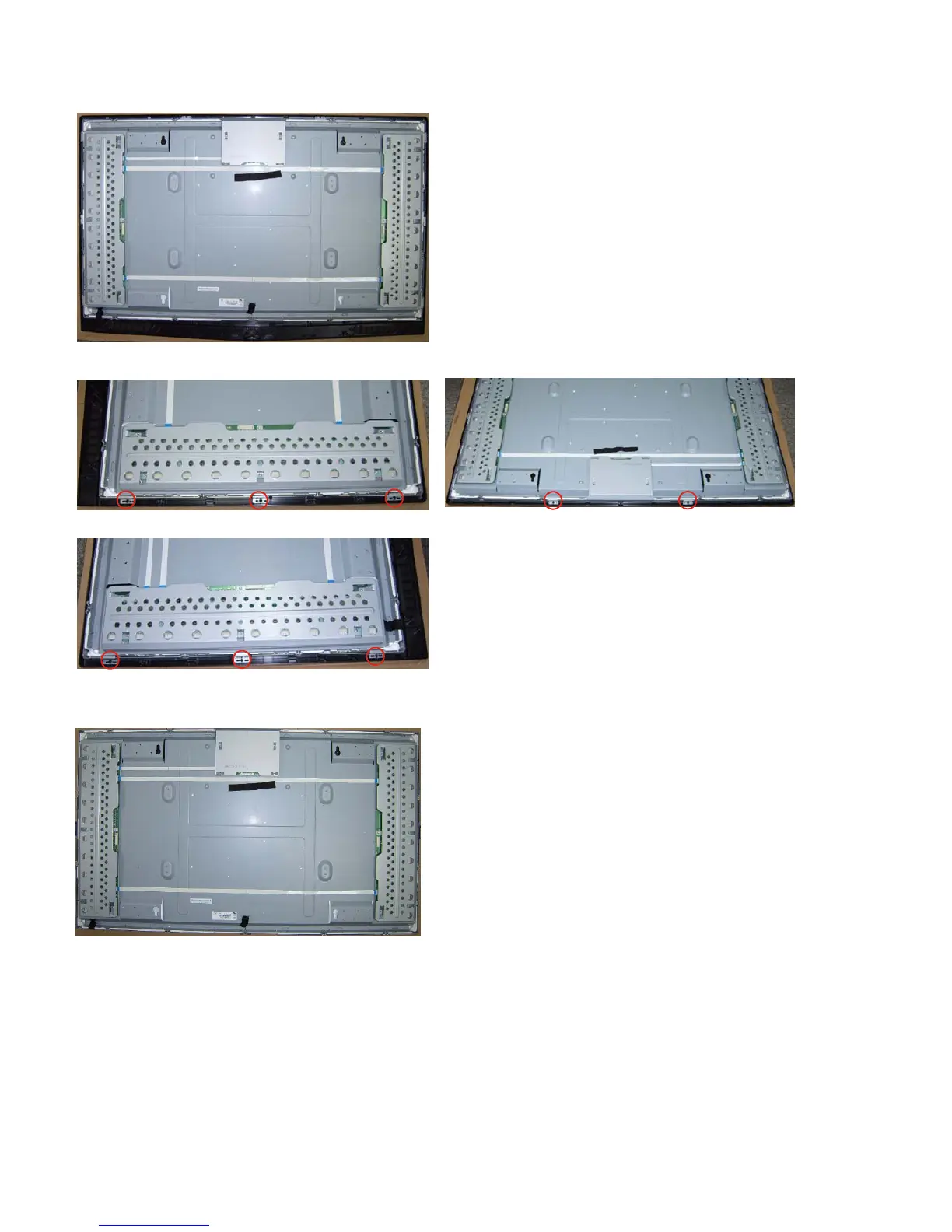

Step 5. Remove the Bezel Assy.
1. Remove the 8 screws. Detach the Bezel Assy as Fig.15~Fig.18.
Fig.15
Fig.16 Fig.17
Fig.18
2. The below picture is panel as Fig.19.
Fig.19
2. Set Re-assembly
To re-assemble the whole set, execute all processes in reverse order.
Notes:
a. While re-assembling, make sure that all cables are placed and connected in their original position.
b. Pay special attention not to damage the EMC foams at the SSB shielding. Check that EMC foams are put
correctly on their places.
