Sharp LC-26SB25E Service Manual

2008-03-14
LC-26SB25E/S/RU, LC-32SB25E/S/RU, LC-42SB55E/S/RU
17

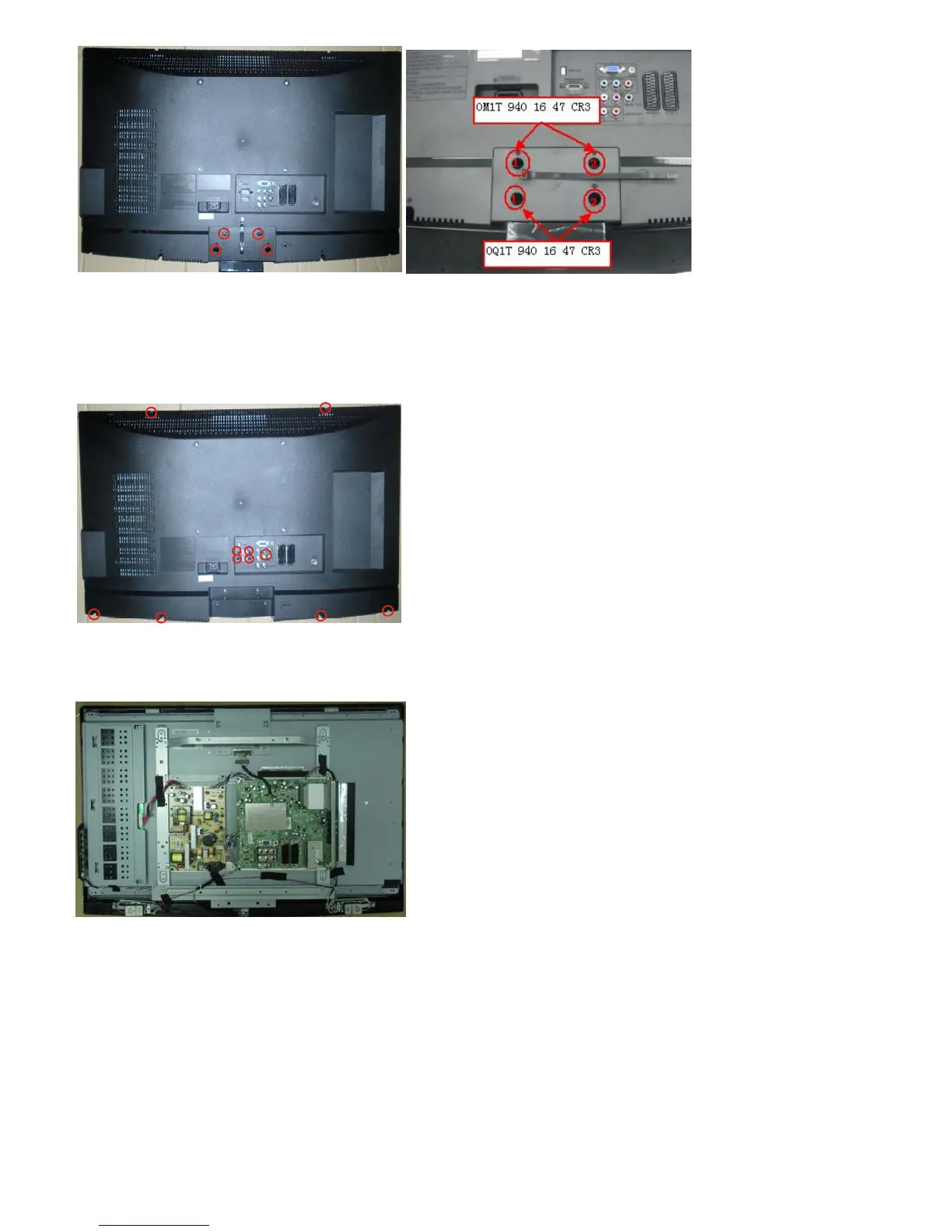

Fig.4
2. Remove the 4 screws. Detach the BASE STAND as Fig.5.
Step 2. Remove the REAR COVER Assy.
1. Remove the 9 screws. Detach the REAR COVER as Fig.5.
Fig.5
Step 3. Remove the Main, Power, IR, Key board and the Speakers.
Fig.6
1. Remove the 6 screws and disconnect 6 cables. Detach the Main board as Fig.7 and Fig.8.
