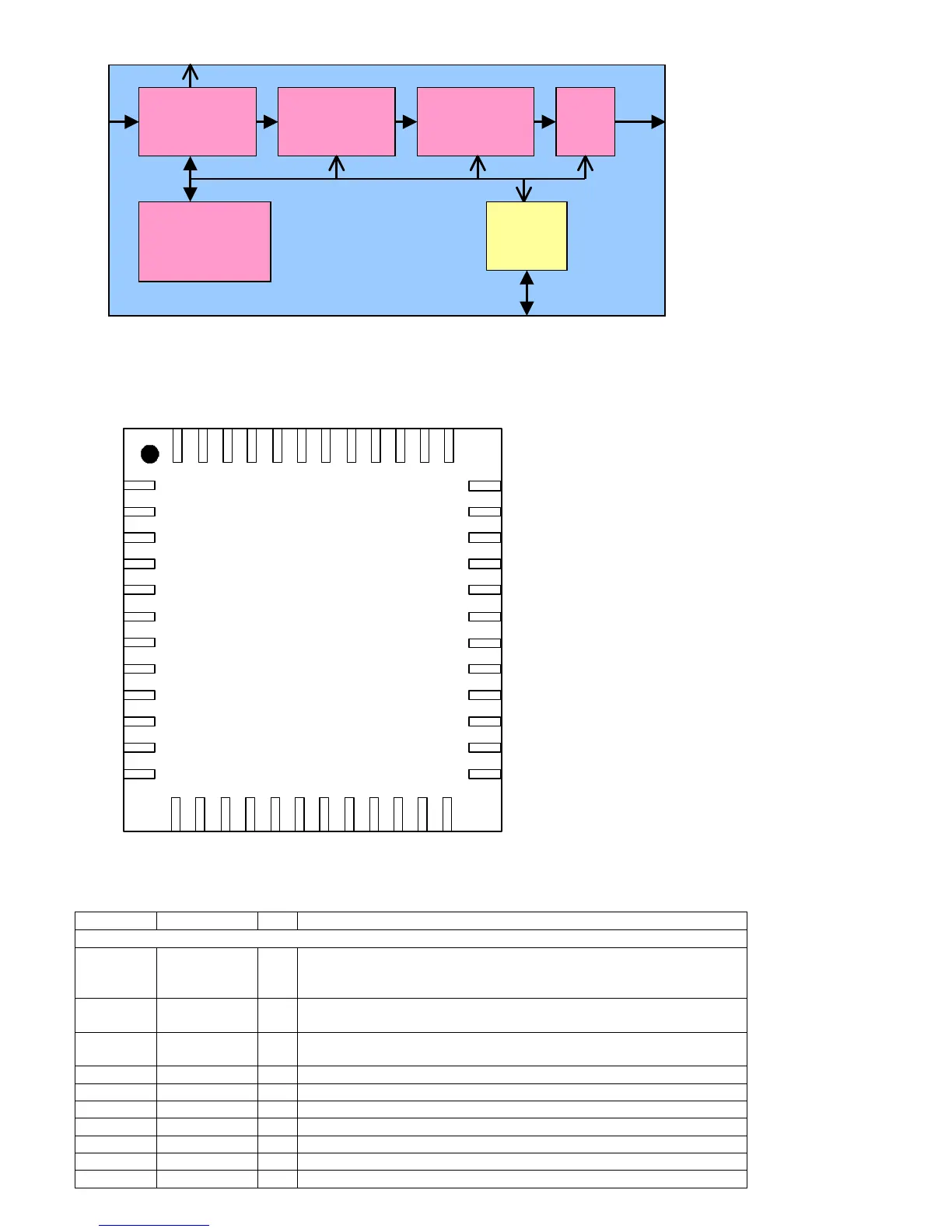

2.8.2 Pin Connections and short description
Pin Numbers Symbol Type Description
Transport Stream / I2C Address setting
9 TSDATA7 I/O
1. TS data output. In serial transport stream mode, TSDATA [7:0] are the same, you
can select one of them as serial transport stream data.
2. I2C chip address, SA2, HW strapping during reset, default internal pull low.
10 TSDATA6 I/O
1. TS data output.
2. I2C chip address, SA1, HW strapping during reset, default internal pull low.
11 TSDATA5 I/O
1. TS data output.
2. I2C chip address, SA0, HW strapping during reset, default internal pull high.
13 TSDATA4 O TS data output.
14 TSDATA3 O TS data output.
15 TSDATA2 O TS data output.
16 TSDATA1 O TS data output.
17 TSDATA0 O TS data output.
18 TSERR O TS packet error indicator
19 TSVAL O TS output valid signal
ADC&RF
Interface
Time Domain
Processing
Freq. Domain
Processing
FEC
System
Controller
Host
Interface
IF
TSIF
AGC
I2C
1
2
3
4
5
6
7
8
9
10
11
12
36
35
34
33
32
31
30
29
28
27
26
25
13
14
15
16
17
18
19
20
21
22
23
24
48
47
46
45
44
43
42
41
40
39
38
37
AGND
AGND
XTALI
XTALO
AVD D3 3
RSSI_IN
VDD12
DGND
TSDATA7
TSDATA6
TSDATA5
VDD33
TSDATA4
TSDATA3
TSDATA2
TSDATA1
TSDATA0
TSERR
TSVAL
TSSYNC
TSCLK
VDD33
DGND
VDD12
RF_AGC
IF_AGC
VDD33
GIO0
RESET_B
XTALCLK_SEL1
XTALCLK_SEL0
DGND
VDD33
VDD12
SDA
SCL
AVDD33
REFTOP
VCMEXT
REFBOT
IIP
IIN
AVDD33
AGND
VDD12
DGND
SCLT
SDAT
