Sharp LC-26SH12U

DISASSEMBLY INSTRUCTIONS
B1-2

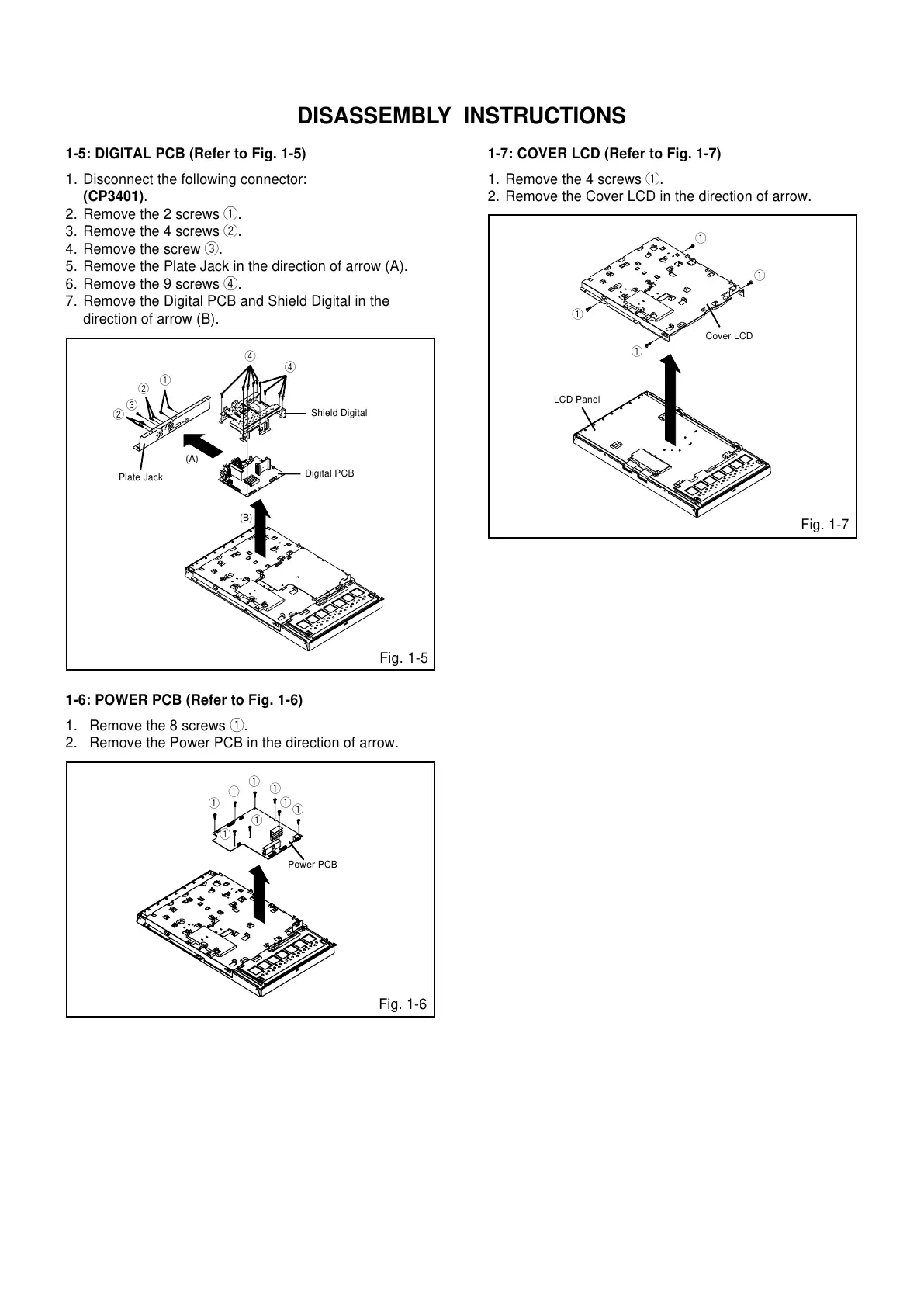

Fig. 1-5
1-5: DIGITAL PCB (Refer to Fig. 1-5)
1.
2.
3.
4.
5.
6.
7.
Disconnect the following connector:
(CP3401).
Remove the 2 screws 1.
Remove the 4 screws 2.
Remove the screw 3.
Remove the Plate Jack in the direction of arrow (A).
Remove the 9 screws 4.
Remove the Digital PCB and Shield Digital in the
direction of arrow (B).
1-6: POWER PCB (Refer to Fig. 1-6)
1.
2.
Remove the 8 screws 1.
Remove the Power PCB in the direction of arrow.
Fig. 1-6
1-7: COVER LCD (Refer to Fig. 1-7)
1.
2.
Remove the 4 screws 1.
Remove the Cover LCD in the direction of arrow.
1
Cover LCD
Fig. 1-7
1
1
1
LCD Panel
(B)
(A)
1
2
Digital PCB
2
3
Plate Jack
Shield Digital
4
4
Power PCB
1
1
1
1
1
1
1
1
