Sharp LC-26SH7E/RU

2008-03-14
LC-19SH7E/RU, LC-26SH7E/RU, LC-32SH7E/RU, LC-42SH7E/RU
13

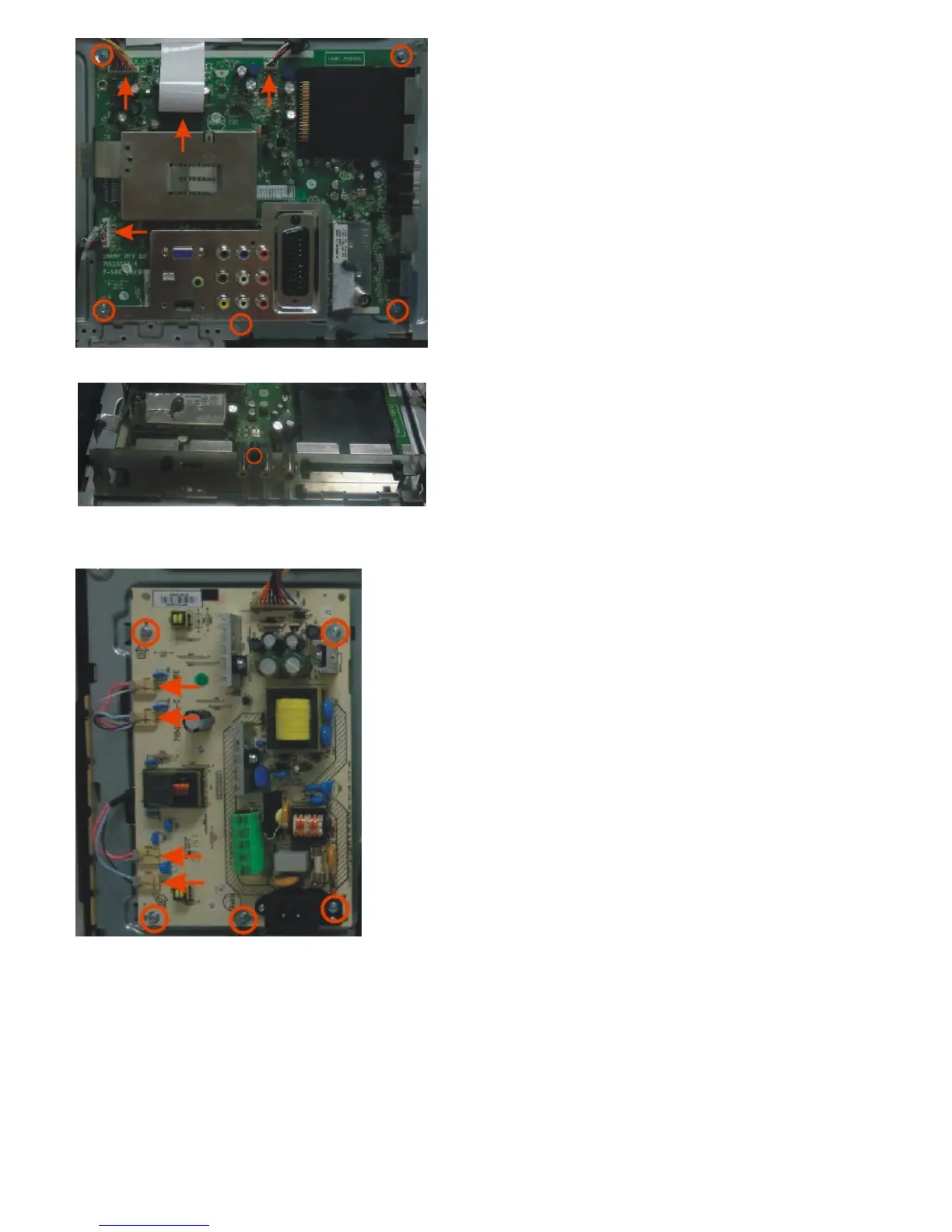

Fig.7
Fig.8
2. Remove the 5 screws and disconnect 4 cables. Detach the Power board as Fig.9.
Fig.9
Step 4. Remove the Bezel.
1. Remove the 6 screws. Detach the Bezel as Fig.10.
