Sharp LC-26SH7E/RU

2008-03-14
LC-19SH7E/RU, LC-26SH7E/RU, LC-32SH7E/RU, LC-42SH7E/RU
19

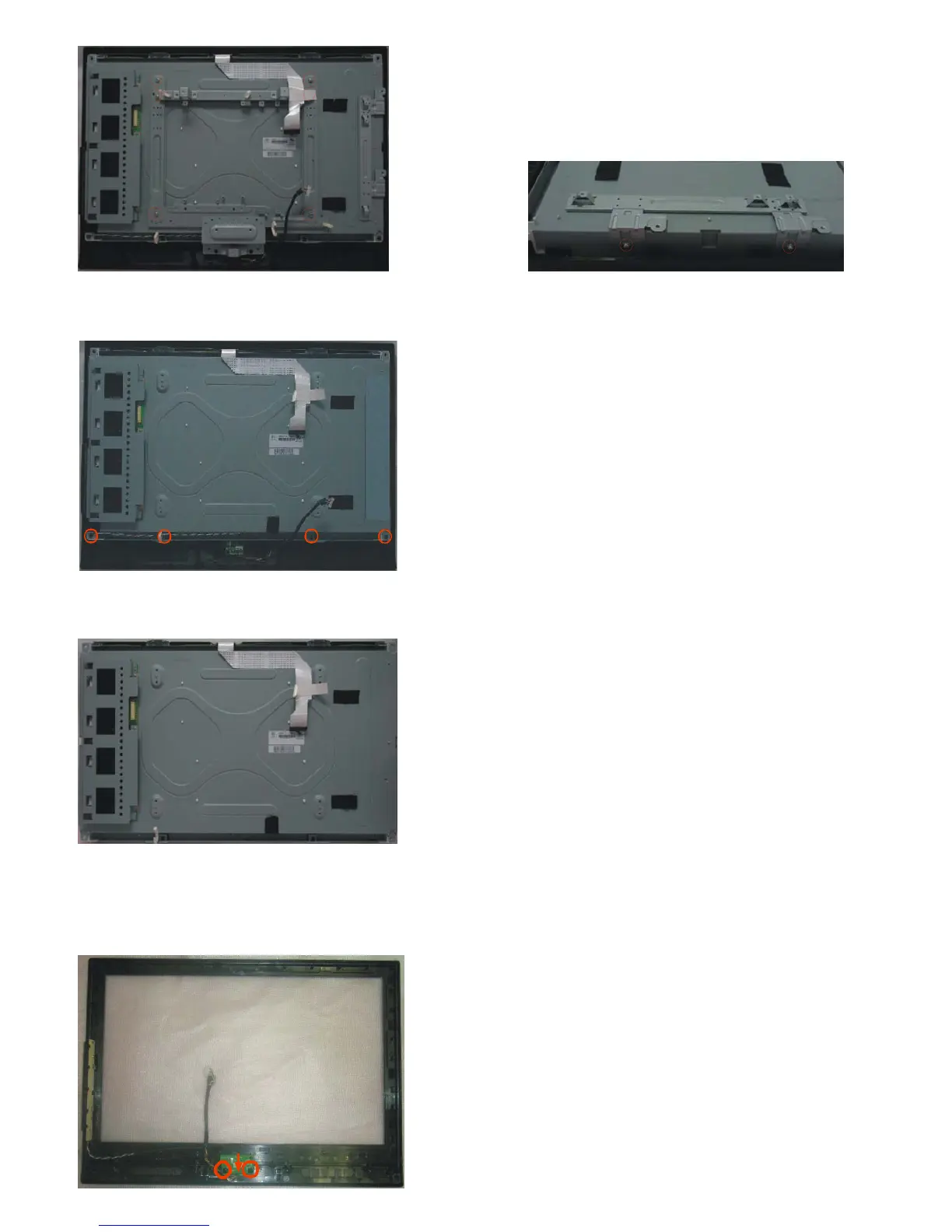

Fig.26 Fig.27
2. Remove the 4 screws. Detach the Bezel as Fig.28.
Fig.28
Panel:
Fig.29
Step 5. Remove the IR and Key board.
1. Remove the 2 screws and disconnect 1 cable. Detach the IR board as Fig.30.
