CHAPTER 4. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS

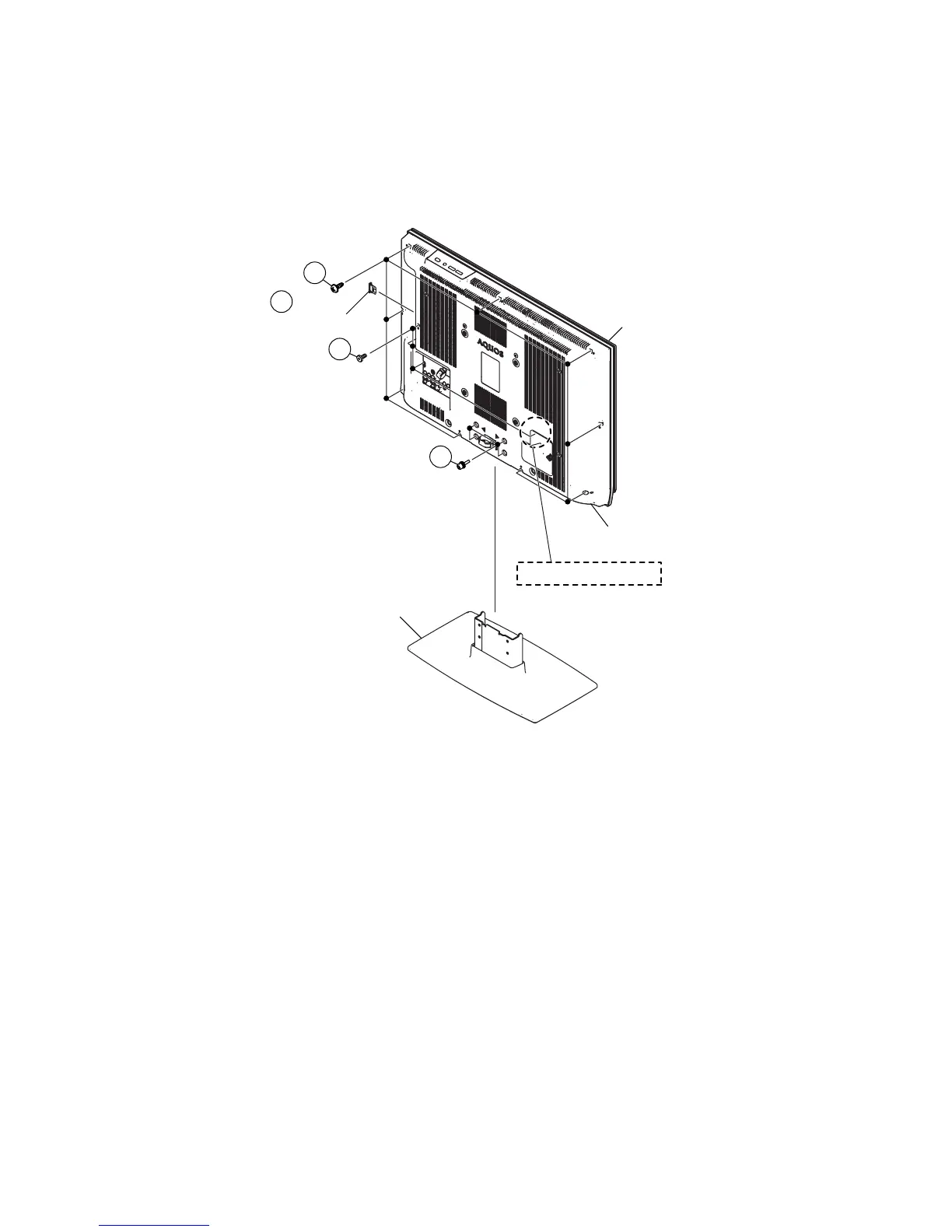

1. Remove the SD Card Cover.
2. Remove the 4 lock screws and detach the Stand Base Ass'y.
3. Remove the 9 lock screws, 3 lock screws and detach the Rear Cabinet. (LC-32D62U)
Remove the 9 lock screws, 4 lock screws and detach the Rear Cabinet. (LC-37D62U)
Front Cabinet
Rear Cabinet
SD Card Cover
Stand Base Ass'y
1
2
3
3
LC-37D62U Only
