LC-32D62U/LC-37D62U 1st
5 – 12
5. Component 33K signal adjustment
6. Component 1080P signal adjustment
Adjustment item Adjustment conditions Adjustment procedure
1 Setting 1080i signal Feed the 100% color bar signal to VIDEO 1 COMPONENT input.
2 Automatic adjust-
ment execution
Move the cursor to [ HDTV ADJ] and press the [ENTER] key.
When [ HDTV ADJ FINISH] appears, the adjustment is complete.
Adjustment item Adjustment conditions Adjustment procedure
1 Setting 1080p signal Feed the 100% color bar signal to VIDEO 1 COMPONENT input.
2 Automatic adjust-
ment execution
Move the cursor to [ COMP67K ADJ] and press the [ENTER] key.
When [ COMP67K ADJ FINISH] appears, the adjustment is complete.

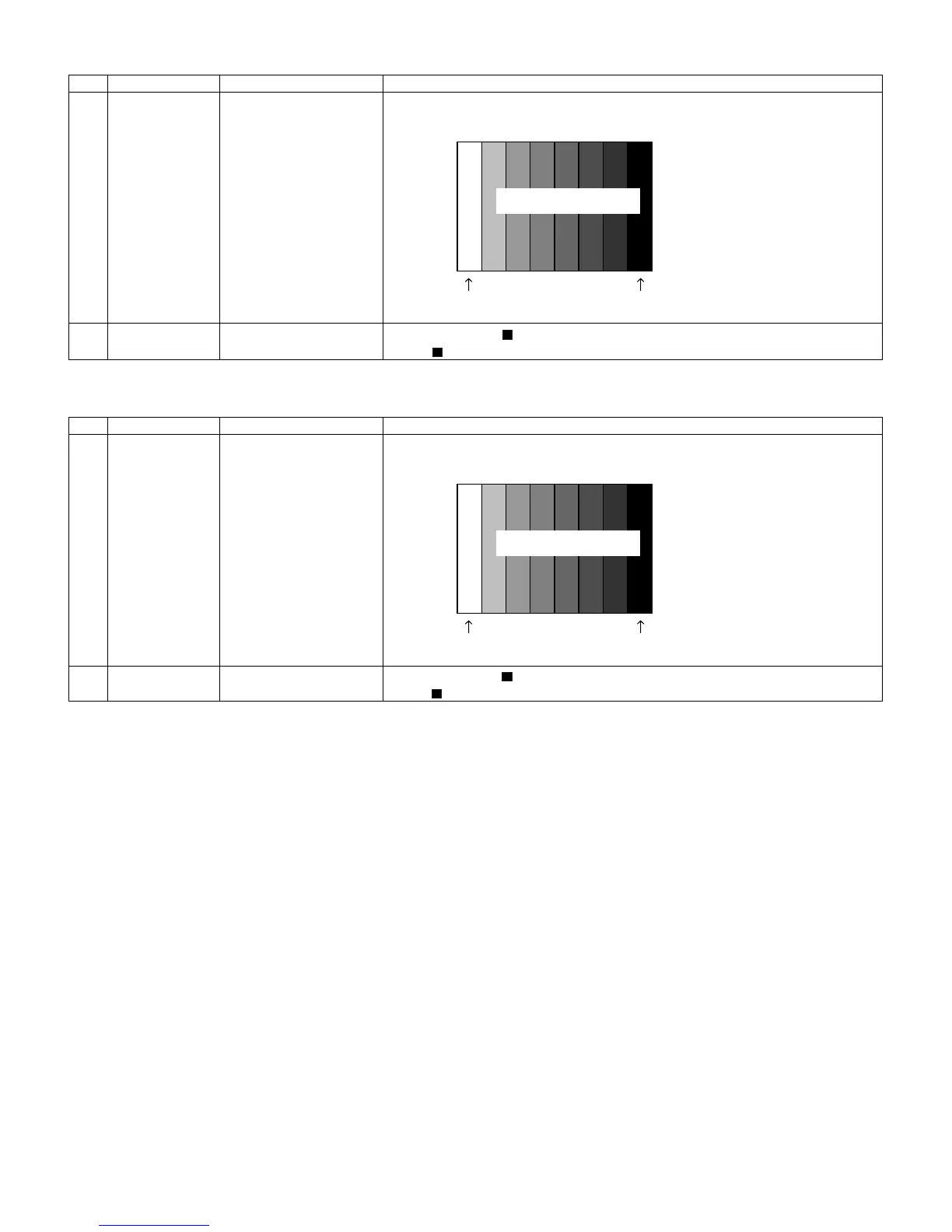

0% black
1080i
100% color bar
100% white
100% Color saturation
0% black
1080p
100% color bar
100% white
100% Color saturation
