Sharp LC-32D65E Service Manual

LC-32D65E/RU, LC-37D65E/RU
25
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[10] SUPPLIED ACCESSORIES
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[9] LCD PANEL MODULE ASSEMBLY (LC-37D65E/RU)
1 CCHSMA478WJ01 J Back Light Chassis Ass'y
2 CANGK4053TP02 AX J Bezel Ass'y (Top)
3 CANGK4053TP01 AS J Bezel Ass'y (Bottom)
4 CANGK4052TP01 AL J Bezel Ass'y, x2 (Left/Right)
5 CHLDZ3805TP03 AV J Panel Chassis Ass'y (Top)
6 CHLDZ3806TP03 AU J Panel Chassis Ass'y (Bottom)
7 CHLDZ3807TP03 AS J Panel Chassis Ass'y (Left)
8 CHLDZ3808TP03 AS J Panel Chassis Ass'y (Right)
9 CPWBX4010TPXB J LCD Control PWB Unit
10 LHLDZB166WJKZ J Lamp Holder (L)
11 LHLDZB167WJKZ J Lamp Holder (R)
12 LX-BZ2312TPZZ AB J Screw, x8 (M3*3.2 Bezel)
13 LX-EZA028WJF9 AB J Screw, x6 (Panel Chassis)
14 LX-HZA042WJF8 AB J Screw, x12 (M3X18BL-Bezel)
15 PCOVUA122WJZZ BD J Diffusion Plate
16 PCOVWA018WJKZ J SJ Connector Cover
17 PCOVWA024WJKZ J SJ Connector Cover 2
19 PSHEPA691WJZZ BC J Lens Sheet, x2
21 PSLDMB419WJFW J LCD Control PWB Cover
22 QPWBM0575TPZZ AN J CS-FPC 80pin, x2
23 QSOCFA003WJZZ AD J Lamp Socket, x16
24 RCORFA061WJZZ AG J Ferrite Core, x4
25 RLMP-0664TPZZ AQ J Lamp Unit, x16
26 RUNTK3841TPZZ AN J GND-PWB1
27 RUNTK3842TPZZ AN J GND-PWB2
28 XHPS730P04WS0 J Screw, x11 (SJ COVER/CONT PWB)
29 XHPS730P08KS0 AB J Screw, x4 (M3X8 GND PWB)
[10] SUPPLIED ACCESSORIES
X1 LHLDWA173WJKZ AE J Cable Clamp
!
X2 QACCKA007WJPZ AK J AC Cord 2Pin (for EUROPE without U.K. and Ireland)
!
X2 QACCBA054WJPZ AM N S AC Cord 3Pin (for U.K. and Ireland)
X3 RRMCGA586WJSA AS N S Remote Control unit
X4 TiNS-D717WJZZ AQ N S Operation Manual (ENGLISH...) (LC-32/37D65E)
X6 TiNS-D719WJZZ AR N S Operation Manual (POLISH...) (LC-32/37D65E)
X7 TiNS-D720WJZZ AE N S Operation Manual (RUSSIAN) (LC-32/37D65RU)
X8 TGAN-A801WJZZ AD N S Warranty Card (U.K. and Ireland)
X9 TGAN-A802WJZZ AD N S AQUOS Care Plan (U.K. and Ireland)
X10 TGAN-A077WJZZ AE J Warranty Card (Russian)
X11 Not Available - - "AAA" size battery
X12 CDAi-A482WJ02 BC N S Stand Ass'y (LC-32D65E/RU)
X12 CDAi-A484WJ02 BD S Stand Ass'y (LC-37D65E/RU)
X12-1 Not Available - - Tool for Stand

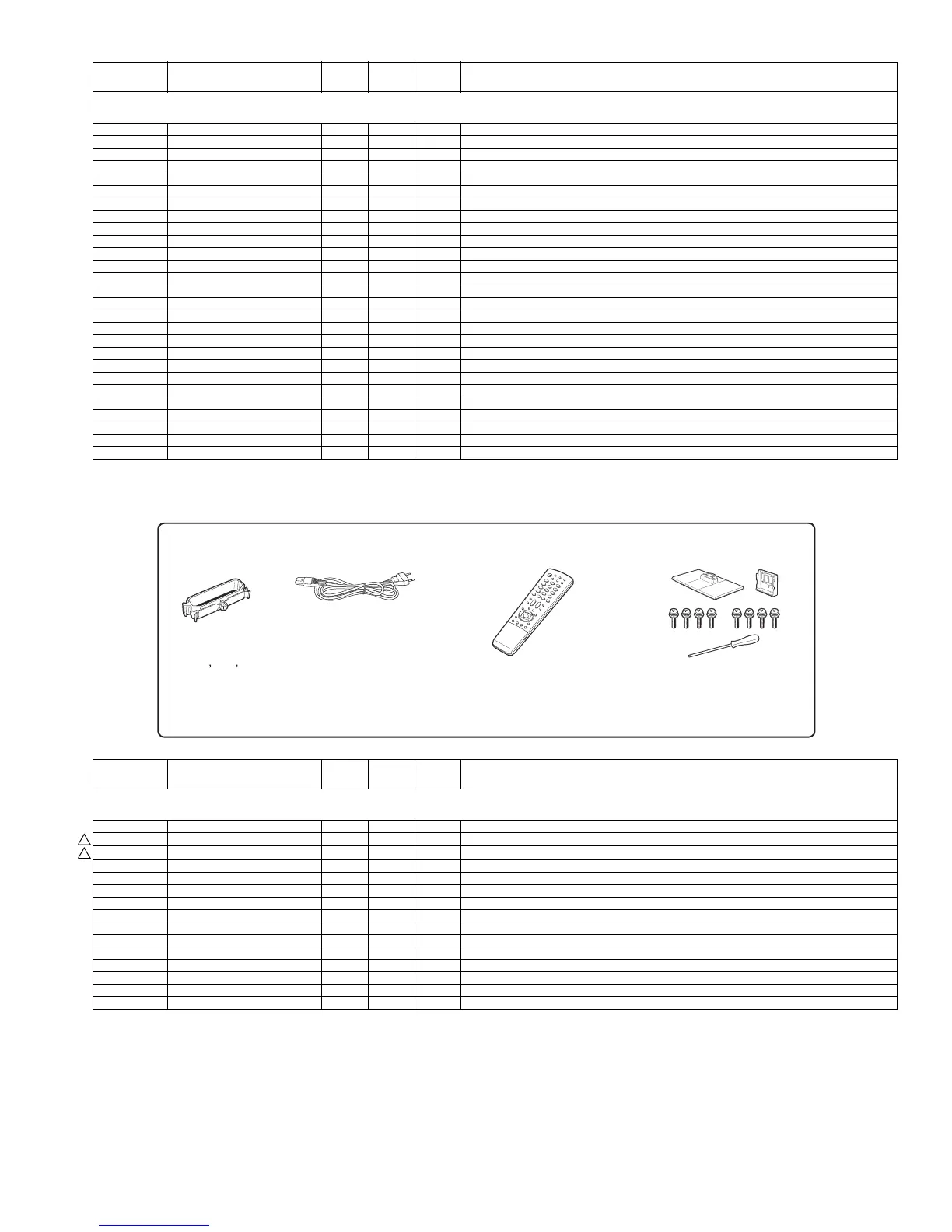

X13 TCAUZA354WJZZ AB N S CAUTION_CLASS_A
Remote control unit
AC cord
Cable clamp
Operation manual
“AAA” size alkaline battery
PrStand unit oduct shape varies
in some countries.
X1
X12
X12-1
X11 X13
X2
X4 X6 X7
X8
X9
X10
X3
Warranty Card (U.K. and Ireland)
AQUOS Care Plan (U.K. and Ireland)
Warranty Card (Russian)
Stand Ass'y
Tool for Stand
CAUTION_CLASS_A
