LC-32G4U/G4D
LC-37G4U/G4D

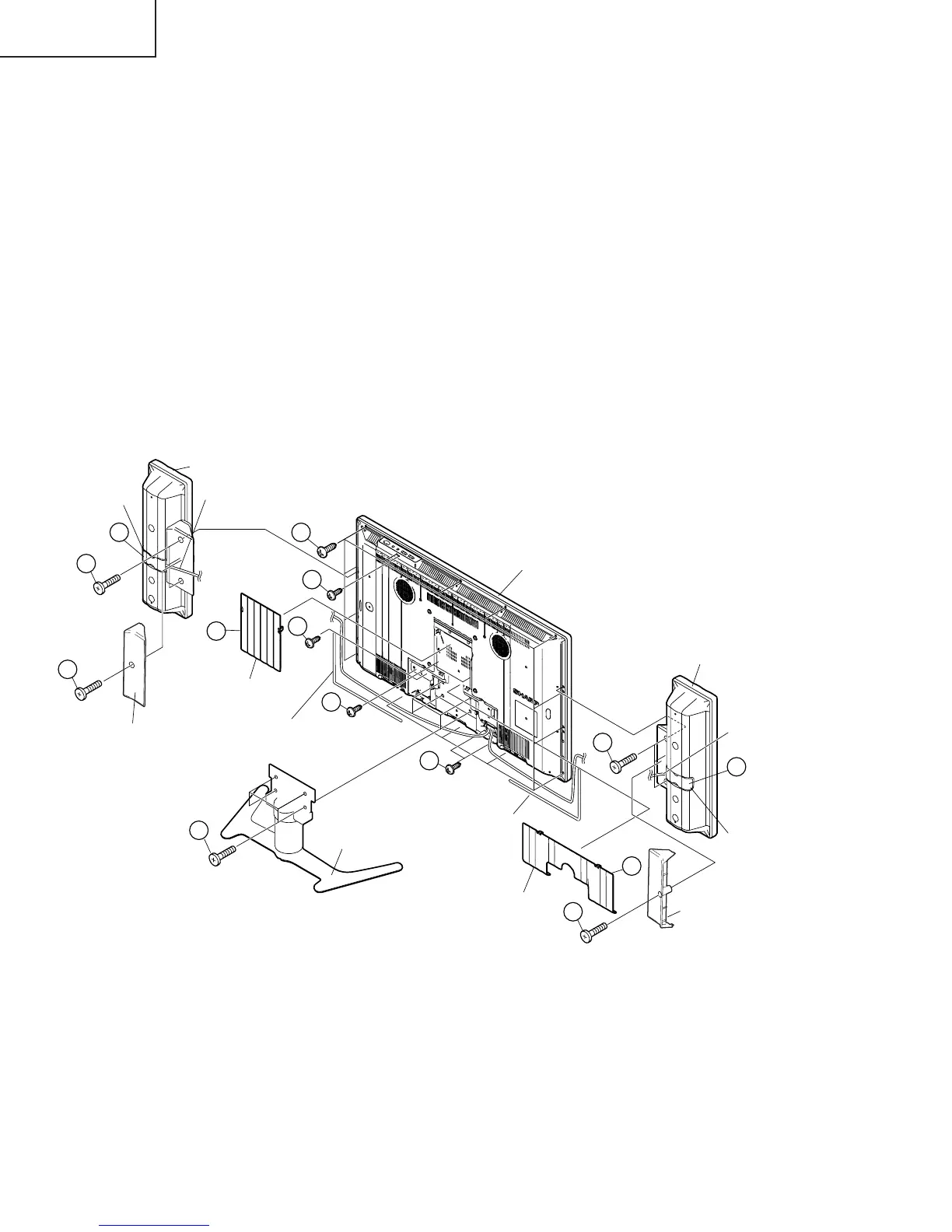

REMOVING OF MAJOR PARTS
1. Remove the terminal covers 1 and 2.
2. Remove the 2 SP terminal rubber covers 3 to disconnect each SP wires.
3. Remove the 2 SP bracket cover mounting screws 4 to detach the SP bracket covers.
4. Remove the 6 speaker mounting screws 5 to detach the speakers.
5. Remove the 4 stand mounting screws 6 to detach the stand.
6. Disconnect each SP wire cover.
7. To detach cabinet B, remove the cabinet lock screws, the 13 M4 plastic screws 7, the 2 M4 machine screws 8,
the 3 M3 plastic screws 9, and the 2 M3 machine screws 0.
LC-32G4U/G4D
5
9
10
1
7
9
6
2
8
5
3
3
4
4
Terminal Cover (Top)
Terminal Cover (Bottom)
Stand
SP Bracket Cover
SP Bracket Cover
SP Terminal
Rubber Cover
SP Terminal
Rubber Cover
SP Wire
SP Wire
Speaker
SP Wire Cover
SP Wire Cover
Cabinet B
Speaker
