Sharp LC-32G4U User Manual

16
LC-32G4U/G4D
LC-37G4U/G4D
LC-37G4U/G4D
5
9
10
1
7
9
6
2
8
5
3
3
4
4

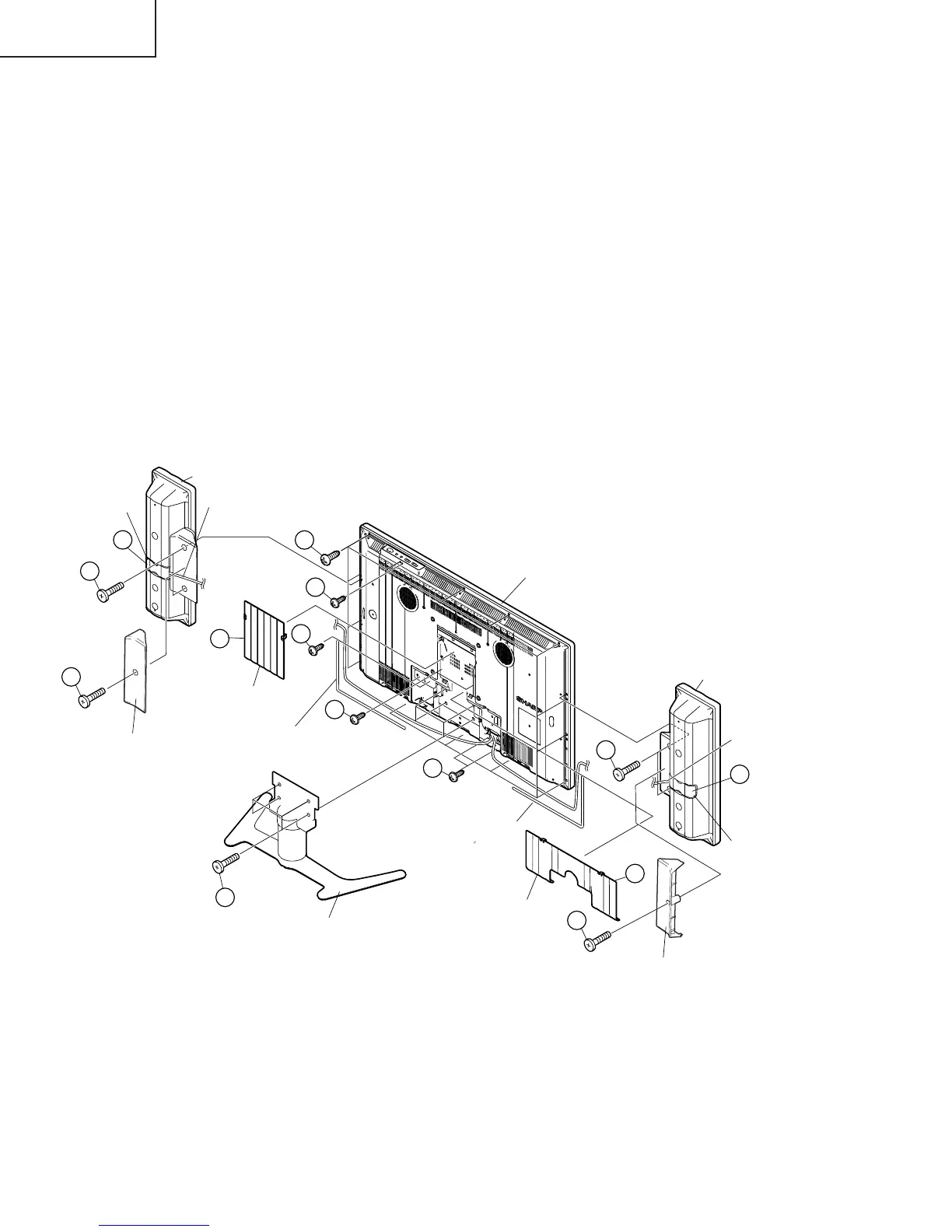

Terminal Cover (Top)
Terminal Cover (Bottom)
Stand
SP Bracket Cover
SP Bracket Cover
SP Terminal
Rubber Cover
SP Terminal
Rubber Cover
SP Wire
SP Wire
Speaker
SP Wire Cover
SP Wire Cover
Cabinet B
Speaker
1.1.
Re-
move
the
ter-
mi-
nal
cov-
ers
(1)
and
(2)
.
2.
Re-
move
the
4
stand
mounting
screws
(3)
,
and
sepa-
rate
the
stand
from
the
main
unit.
Then,
put
the
main
unit
in
1. Remove the terminal covers 1 and 2.
2. Remove the SP terminal rubber covers 3 to disconnect each SP wires.
3. Remove the 2 SP bracket cover mounting screws 4 to detach the SP bracket covers.
4. Remove the 4 speaker mounting screws 5 to detach the speakers.
5. Remove the 4 stand mounting screws 6 to detach the stand.
6. Disconnect each SP wire covers.
7. To detach cabinet B, remove the cabinet lock screw, the 13 M4 plastic screws 7, the 2 M4 machine screws 8,
the 3 M3 plastic screws 9, and the 2 M3 machine screws 0.
