17
LC-32G4U/G4D
LC-37G4U/G4D
12
Top Operation Section
Assembly
FPC
13
13
11
Shield Plate
Earth Plate
15
TMDS RX PWB
14
14
14
14

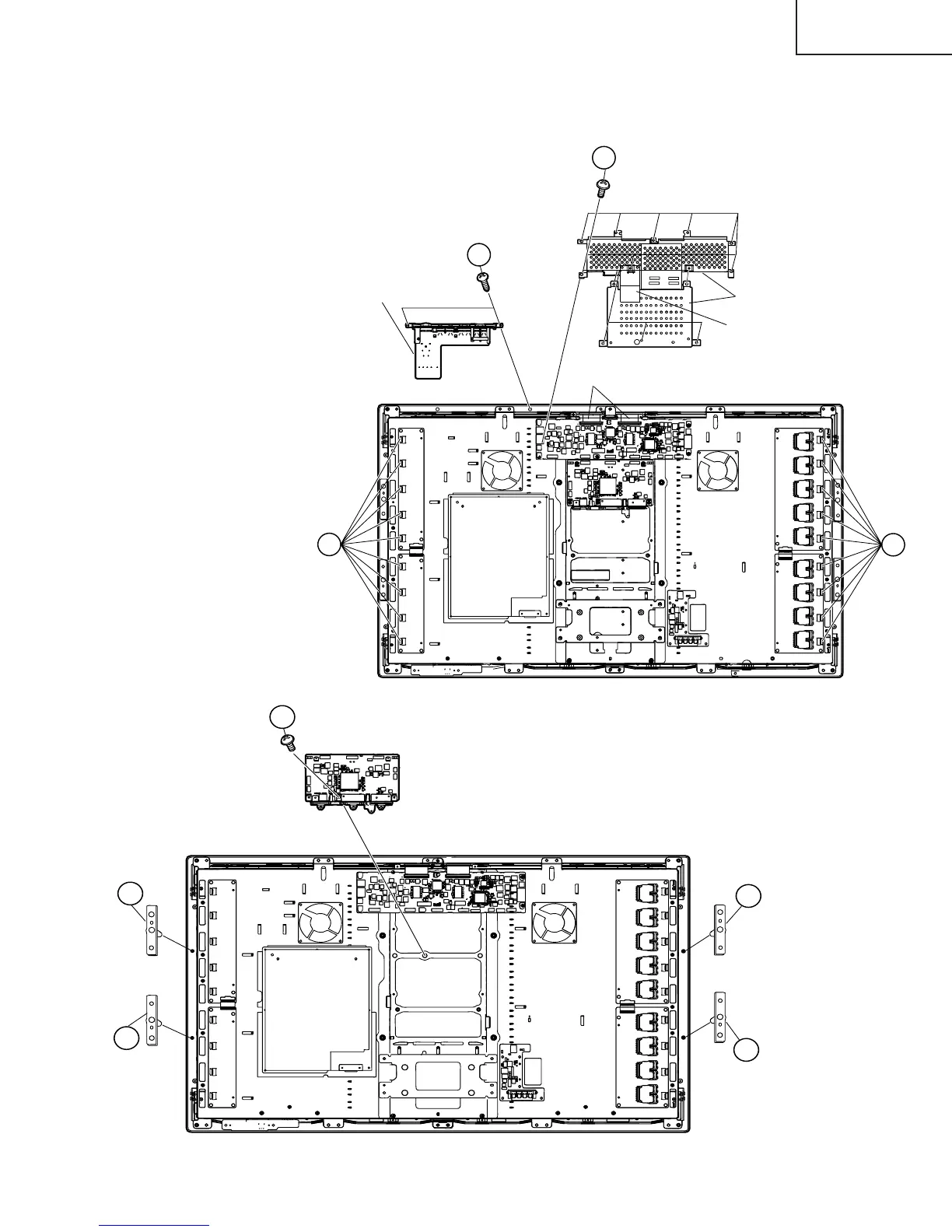

8. Remove the Earth Plate and the 13 Shielding Plate mounting screws q to detach the Earth Plate and the
Shielding Plate.
9. Remove the 2 top operation section assembly mounting screws w.
10. Remove the FPC. (with ferrite core)
11. Remove the 18 leads from fluorescent lights e.
12. Remove the 4 angles r.
13. Remove the 1 TMDS RX PWB mounting screw t.
To Next Page
