18
LC-32G4U/G4D
LC-37G4U/G4D

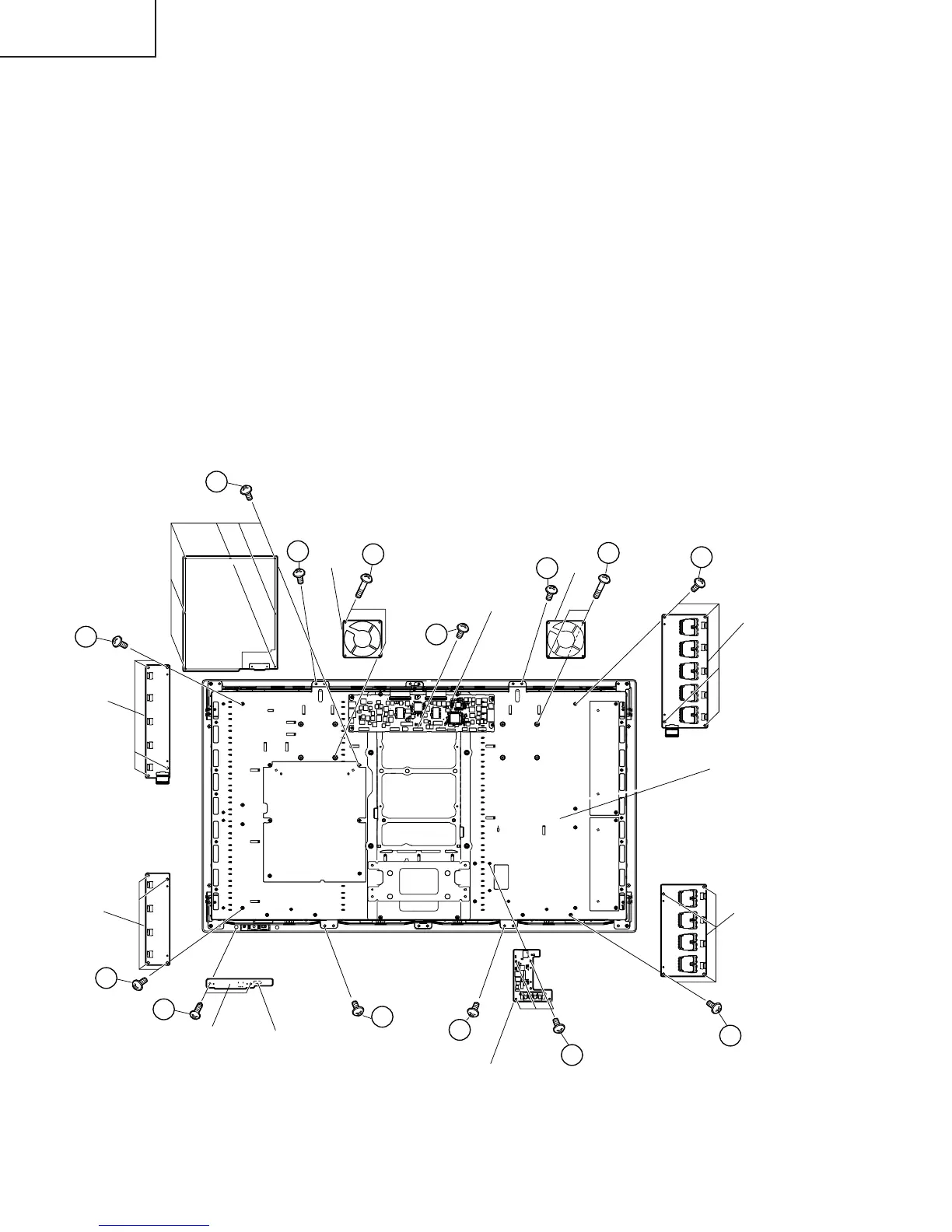

INVERTER-1
GND PWB
INVERTER-2
GND PWB
INVERTER-2 PWB
FAN
LCD CONT PWB
POWER SUPPLY PWB
SP TERMINAL PWB
R/C LED PWB
INVERTER-1 PWB
FAN
Backlight Chassis
Remove the connector.
23
20
18
22
21
24
24
19
25
25
16
25
25
17
14. Remove the LCD CONT PWB mounting screw y to detach the LCD CONT PWB.
15. Remove the 6 POWER SUPPLY PWB mounting screws u to detach the POWER SUPPLY PWB.
16. Remove the 2 R/C LED PWB mounting screws i to detach the R/C LED PWB.
17. Remove the 4 INVERTER-1 PWB mounting screws o to detach the INVERTER-1 PWB.
18. Remove the 4 INVERTER-2 PWB mounting screws p to detach the INVERTER-2 PWB.
19. Remove the 4 INVERTER-1 GND PWB mounting screws a to detach the INVERTER-1 GND PWB.
20. Remove the 4 INVERTER-2 GND PWB mounting screws s to detach the INVERTER-2 GND PWB.
21. Remove the 4 SPEAKER TERMINAL PWB mounting screws d to detach the SPEAKER TERMINAL PWB.
22. Remove the 4 fan mounting screws f to detach the 2 fans.
23. Remove the 4 chassis mounting screws g, and remove the backlight chassis from cabinet A.
To Next Page
