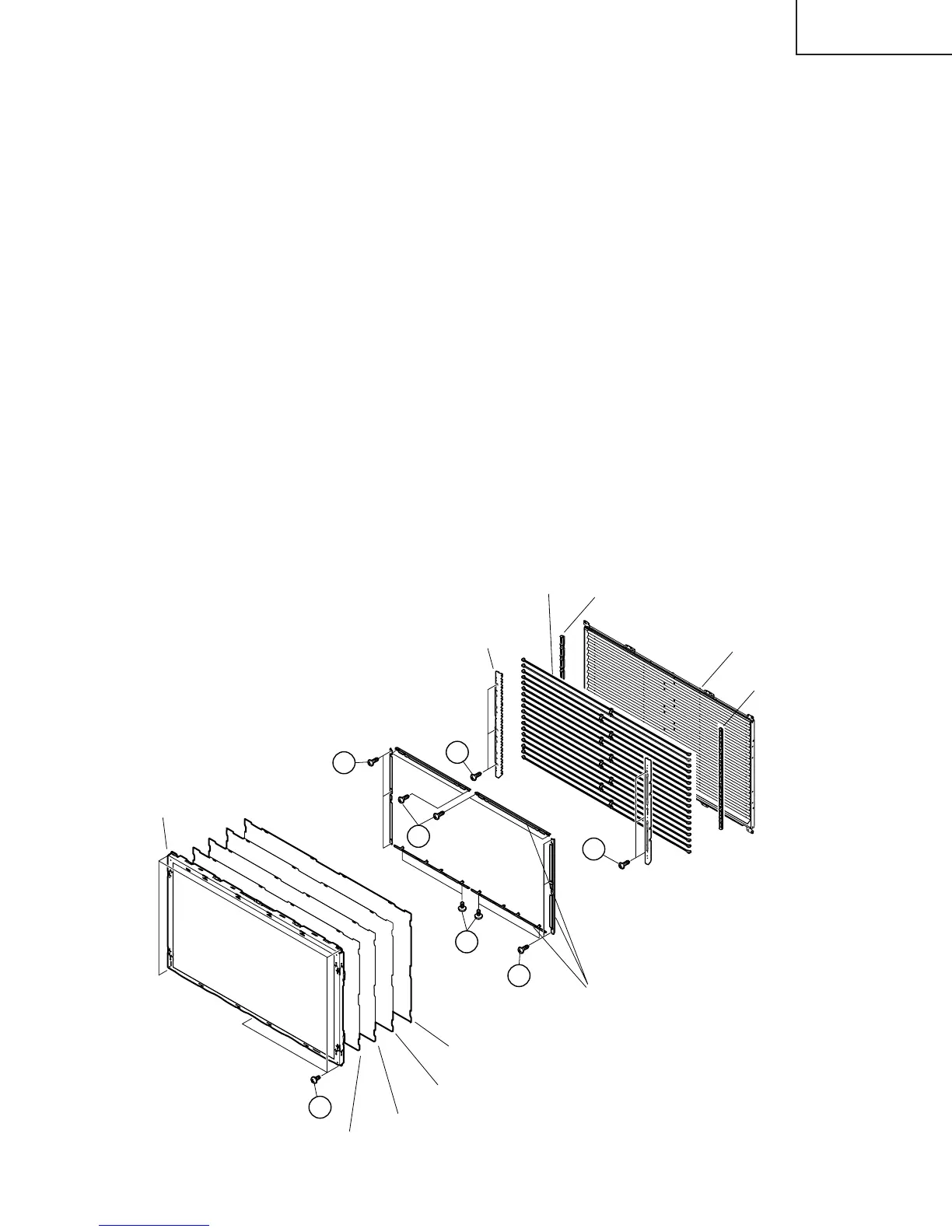

LCD Panel Unit
Reflection/Deflection Sheet
Diffusion Panel
Diffusion Sheet
Sheet Presser Angle
Prism Sheet
Lamp Holder (Top)
Lamp
Lamp Holder (Top)
Lamp Holder (Bottom)
Backlight Chassis
Lamp Holder (Bottom)
• Precautions in handling the LCD panel
1. Handle the liquid crystal panel in a clean room (Humidity: 50% or more).
2. Be sure to wear an earth wristband.
3. Be careful not to drop and shock the liquid crystal panel.
4. Use an ionizer (within 30 cm).
24. Remove the 5 screws h (LX-BZA051WJFN).
25. Remove the LCD panel unit.
26. Remove the 8 screws j (XBPSN30P06000).
27. Remove the sheet presser angles.
28. Remove the 6 screws k (XBPSN30P10000).
29. Remove the sheet presser angles.
30. Detach the reflection/deflection sheet, prism sheet, diffusion sheet, and diffusion plate.
31. Remove the 6 screws l (XBBSN30P08000).
32. Remove the lamp holders (top).
33. Detach the lamps.
* The reflection plate (PMIR-S041WJZZ) is attached to the backlight chassis using clips and two-sided tape, and it
cannot be disassembled.
