17
LC-32LD164
LC-32LD165
LC-32LD166
LC-32LD164–LC-32LD165–LC-32LD165RU–LC-32LD166
14

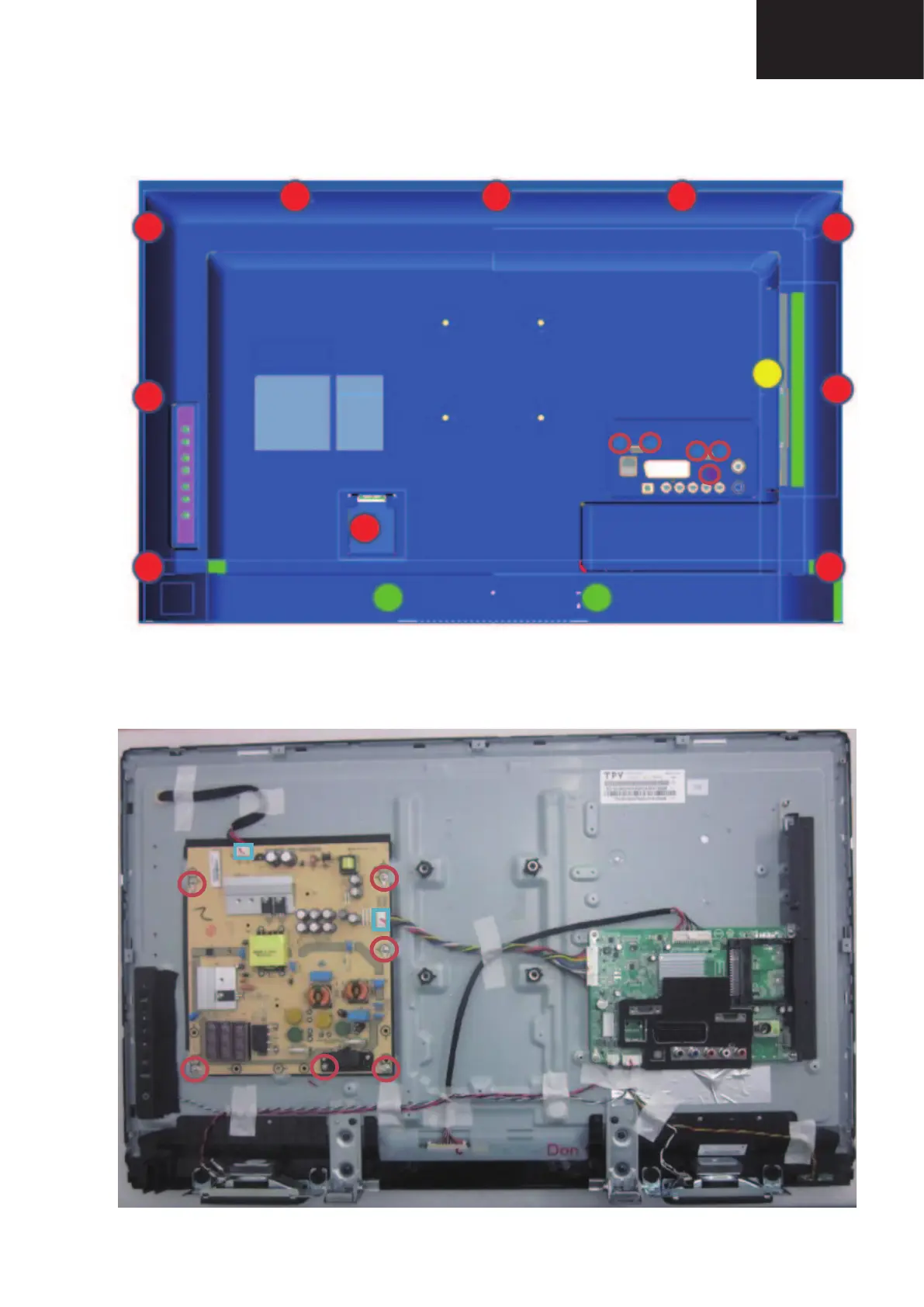

Step 2. Remove the rear cover.
Remove 18 screws as Fig 4.
Fig 4
Step 3. Remove the power board.
Remove 6 screws and unplug 2 cables as Fig 5.
Fig 5
