2. ADC Adjustment and White Balance Adjustment
It’s no need to do the ADC, do only white balance.

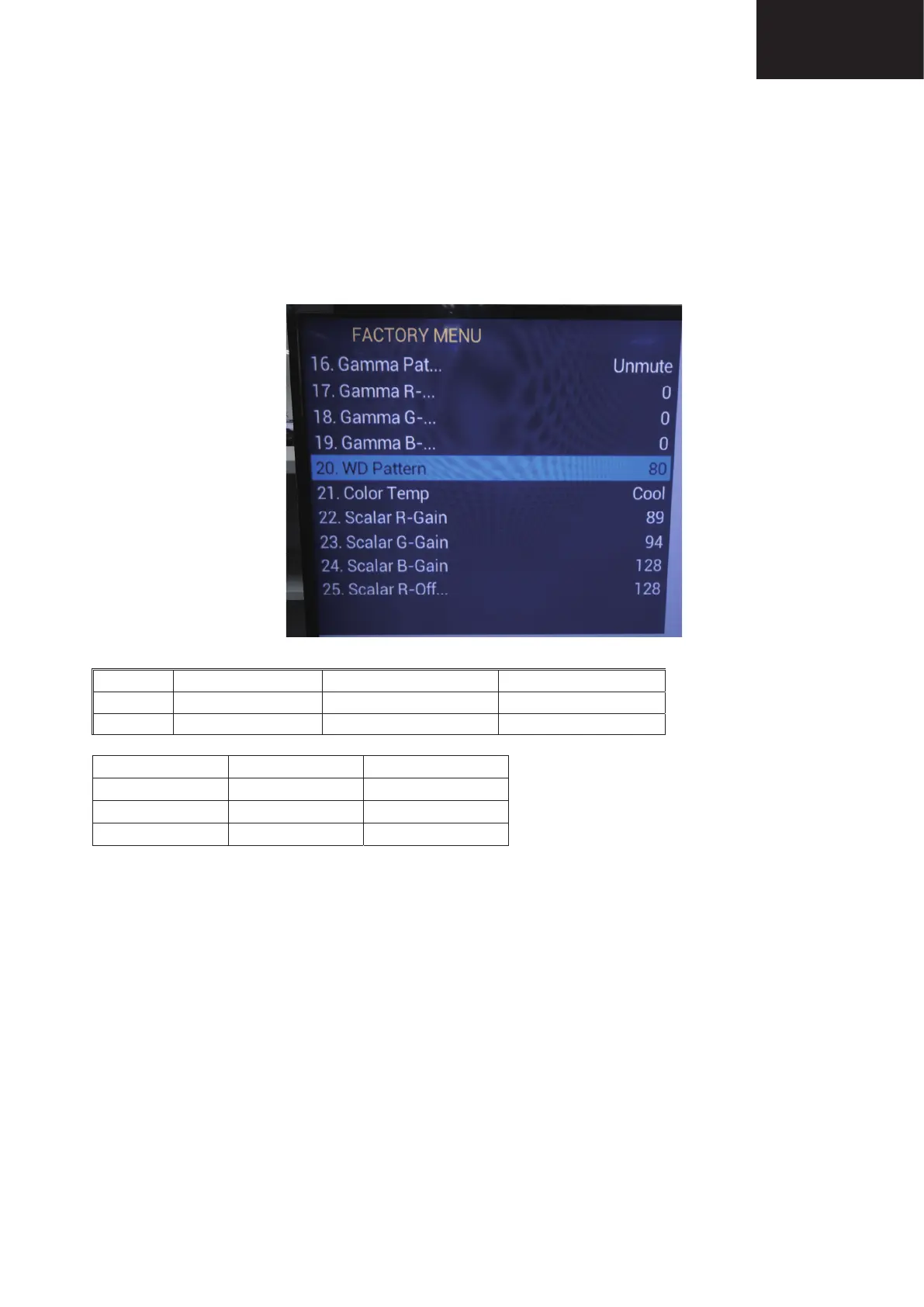

White balance adjustment: Turn on the TV, press “Menu”, then press number key 1 + 9 + 9 + 9 and “PRE PR”, it will achieve the factory mode. Current
Source is "component", and then choose Color temp as Warm / Normal / Cool, use remote control to choose “WD Pattern” for 80 .Then choose the Gain
bar to adjust the R/G/B value, the temperature adjustment meet to the required specification range. (Note: MAX LV>230)
White balance value checking: Check color temperature of AV,HDMI,VGA source is within the specifications, If not same, need to switch to the other
source and adjust to the same. If same ,the OK white balance adjustment.
Color Temperature Specification:
MIN MAX
R GAIN 80 128
G GAIN 80 128
B GAIN 80 128
Warm Normal Cool
x (center)
0.309 0.003 0.285 0.003 0.266 0.003
y (center)
0.300 0.003 0.270 0.003 0.251 0.003
