LC-32/40/46/52LE700UN

4 – 5

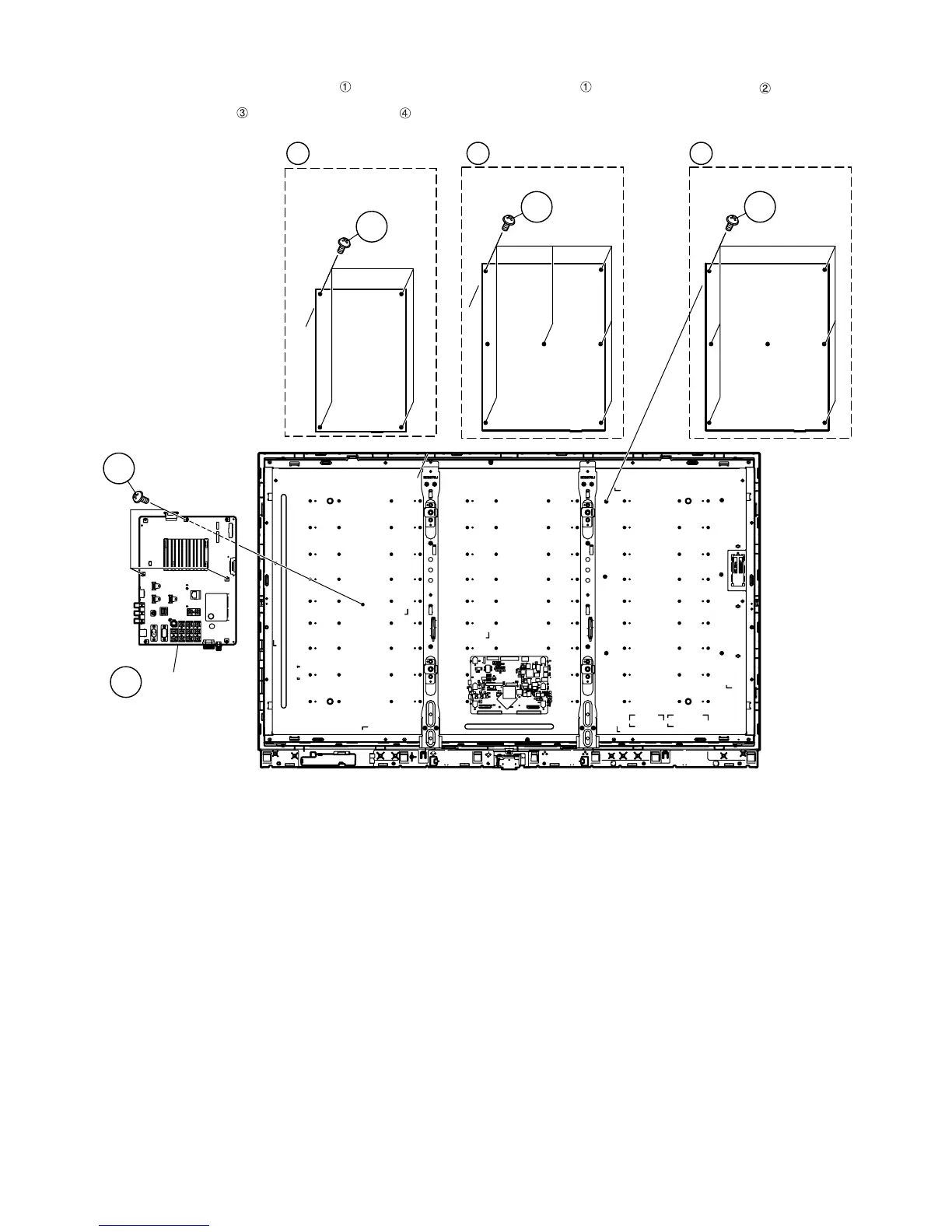

4. Removing of POWER Unit and MAIN Unit.

1. Remove the 4 lock screws (LC-32LE700UN) , 6 lock screws (LC-40/46/52LE700UN) and detach the POWER Unit .

2. Remove the 3 lock screws and detach the MAIN Unit .
