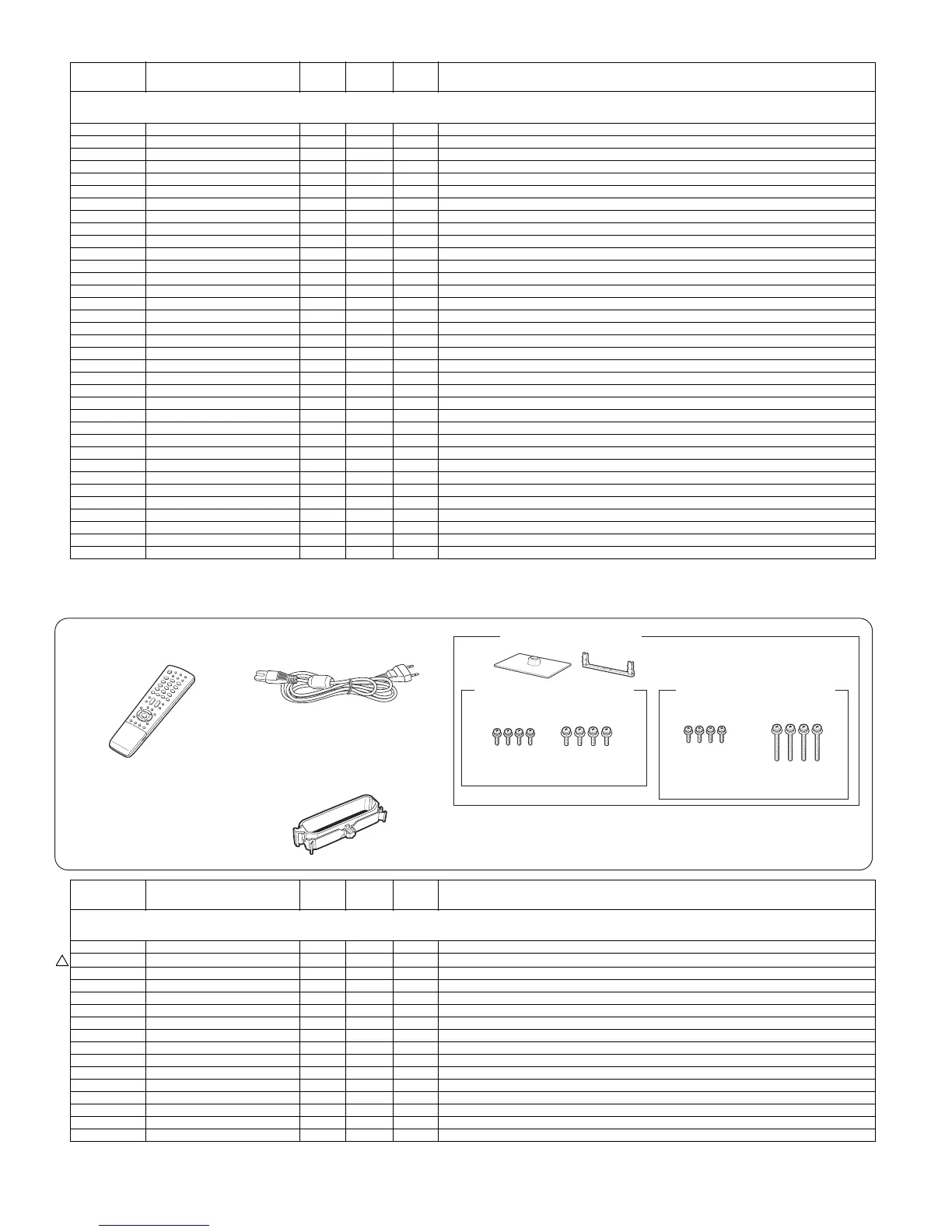

LC-32/40/46LE705E/S, LU705E/S, LX705E, LC-52LE705E/S
18
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[12] SUPPLIED ACCESSORIES
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[11] LCD PANEL MODULE UNIT (LC-52LE705)
1 DLCUCA004FM07 DU N P 52" LCD Panel Module Unit
1-1 CRDARA844WJ01 BH N P Back Light Chassis
1-2 LHLDWA284WJKZ AC J Bush Base
1-3 RUNTK4225TPZU BR N P LCD Control Unit
1-4 XHPS730P06WS0 AA J Screw, x6
1-5 QCNW-K183WJQZ AN P Connecting Cord, x2
1-7 QCNW-K255WJQZ AX N P Wire Harness
1-8 CHLDWA285WJ01 AC J Bush Cap Unit
1-9 LHLDWA280WJKZ AC N J Wire Holder, x3
1-10 RUNTKA656WJ01 AW N J LED6 PWB1 Unit, x4
1-11 RUNTKA656WJ02 AW N J LED6 PWB2 Unit, x4
1-12 RUNTKA658WJ01 AX N J LED8 PWB1 Unit, x8
1-13 RUNTKA658WJ02 AX N J LED8 PWB2 Unit, x8
1-14 QCNCWA958WJZZ AD N J Terminator, x8
1-15 LHLDZB497WJKZ AC N J Push Rivet, x81
1-16 PMiR-A279WJZZ AX N J Reflection Sheet
1-17 LHLDZB496WJKZ AC N J Support Pin, x11
1-18 PCOVUA187WJZZ BA J Diffusion Plate
1-19 PSHEPA967WJZZ AZ J Lens Sheet, x1
1-20 CHLDZB505WJ01 AT P Panel Chassis Ass'y (Top)
1-21 CHLDZB506WJ01 AU P Panel Chassis Ass'y (Bottom)
1-22 CHLDZB507WJ02 AR N P Panel Chassis Ass'y (L)
1-23 CHLDZB508WJ02 AR N P Panel Chassis Ass'y (R)
1-24 R1LK520D3FZL0Y CY P 52" LCD Panel HIRAKI Unit
1-25 LHLDZB194WJKZ AX P Clip, x6
1-26 CANGKC329WJ01 AQ P Bezel Ass'y (Top)
1-27 CANGKC330WJ01 AR P Bezel Ass'y (Bottom)
1-28 CANGKC331WJ01 AN P Bezel Ass'y (L)
1-29 CANGKC332WJ02 AP N P Bezel Ass'y (R)
1-30 LX-EZA028WJF9 AB J Screw, x18
1-31 LX-HZA039WJF7 AB J Screw, x9
1-32 TLABN2229TPZZ AA J Bar Code Label
1-33 PSHEPB029WJZZ BF N J Lens Sheet
1-34 PSHEPB012WJZZ BU P
DBEF Sheet
1-35 LX-HZA064WJF7 AB P Washer Screw, x3
[12] SUPPLIED ACCESSORIES
X1 RRMCGA771WJSA AU P Remote Control Unit
!
X2 QACCKA047WJPZ AH P AC Cord 2P
X3 LHLDWA173WJKZ AC P Cable Clamp
X4 CDAi-A595WJ02 BH P Stand Unit (for 32 inch models)
X4 CDAi-A600WJ02 BL N P Stand Unit (for 40 inch models)
X4 CDAi-A593WJ02 BM N P Stand Unit (for 46/52 inch models)
X4-1 Not Available - N - Screw Ass'y (for 32 inch models)
X4-1 Not Available - N - Screw Ass'y (except for 32 inch models)
X5 TiNS-E281WJN1 AK N P Operation Manual (for Europe except for East Europ
X5 TiNS-E282WJN1 AH N P Operation Manual (for Sweden)
X5 TiNS-E283WJN1 AP N P Operation Manual (for East Europe)
X6 Not Available - - "AAA" size inc-carbon battery, x2
X7 TCAUSA034WJZZ AA P Caution Sheet (for East Europe)
X8 TCAUZA408WJZZ AB N P Caution Card
X9 TGAN-B078WJZZ AC P Warranty Card (for East Europe)
X10 TGAN-B079WJZZ AB P Warranty Coupon (for East Europe)
Remote control unit ( x 1)
AC cord ( x 1)
Cable clamp ( x 1)
Product shape varies in
some countries.
For 32 inch models
For 40/46/52 inch models
Operation manual (this publication)
“AAA” size zinc-carbon battery ( x 2)
X1
X5
X6
X2
X3
Stand unit ( x 1)
X4
Screw ass'y ( x 1)
X4-1
Screw for
set (x 4)
Screw for
stand (x 4)
Screw for
set (x 4)
Screw for
stand (x 4)
Screw ass'y ( x 1)
X4-1
