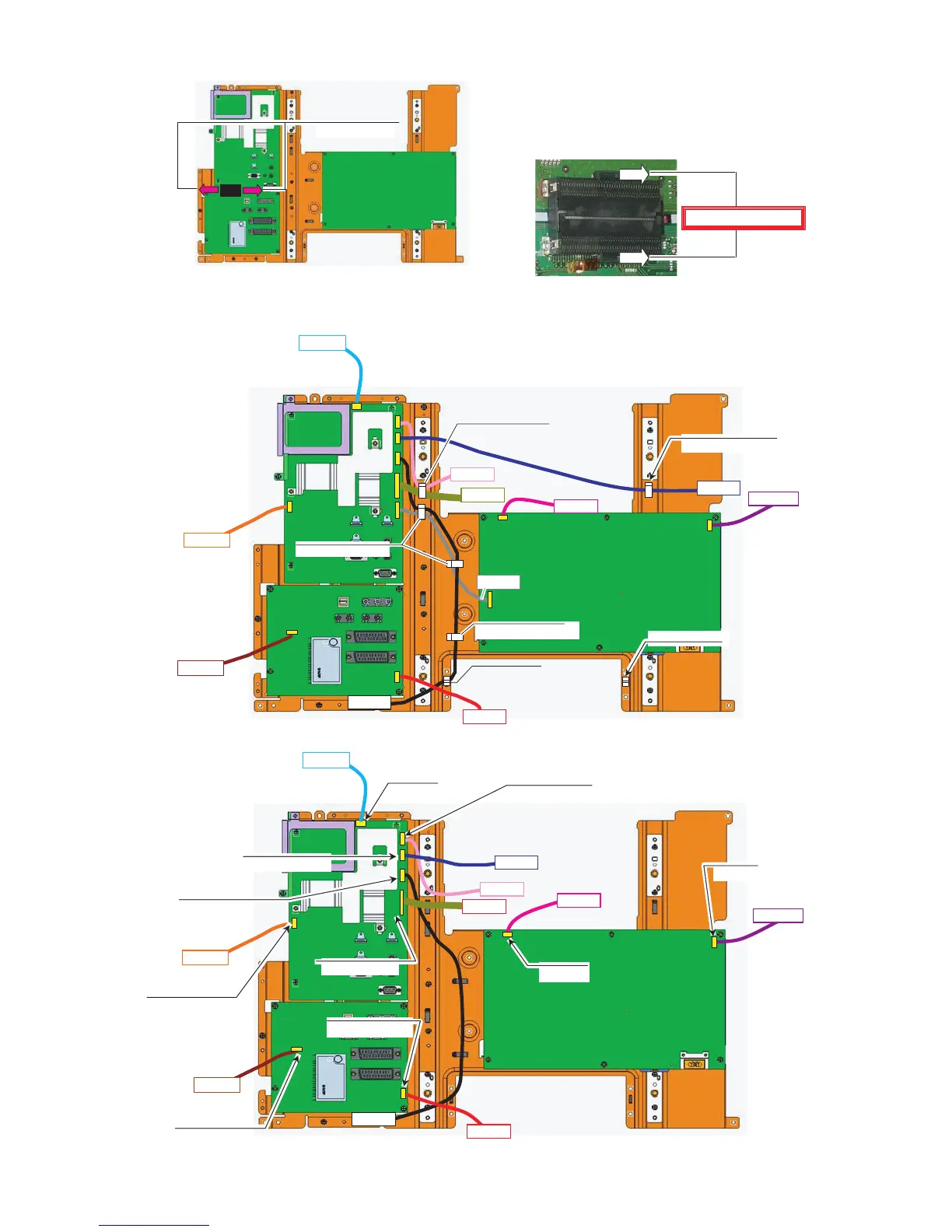

15.Remove all the connectors from PWBs.
B to B connection
Pull same time
Wire "US"
Wire "KM"
Wire "FR"
Wire "LB"
Wire "PL"
Wire "LA"
Wire "RA","PD" to WH
Wire "RA" to WH
Wire "LB" to WH
Wire "SP" to WH
Wire "SP-L" to WH
Wire
Wire
Wire "VD"
Wire
Wire
Wire "FR","LW" to WH
Wire "VD"
Wire "US"
Wire
Wire "FR"
Wire "LB"
Wire "PL"
Wire
Wire "LA"
Wire
Wire "RA"
Wire "SP"
Wire "LA"
Wire "VD"
Wire "PL"
Wire "KM"
Wire "FR"
Wire "LB"
Wire "US"
Wire "LW"
Wire "KM"
