Connecting external devices
Before connecting ...
Be sure to turn off the TV and any devices before making any connections.
Firmly connect a cable to a terminal or terminals.
Carefully read the operation manual of each external device for possible connection types. This also helps you
get the best possible audiovisual quality to maximise the potential of the TV and the connected device.
Refer to page 36 for connecting a PC to the TV.
Introduction to connections

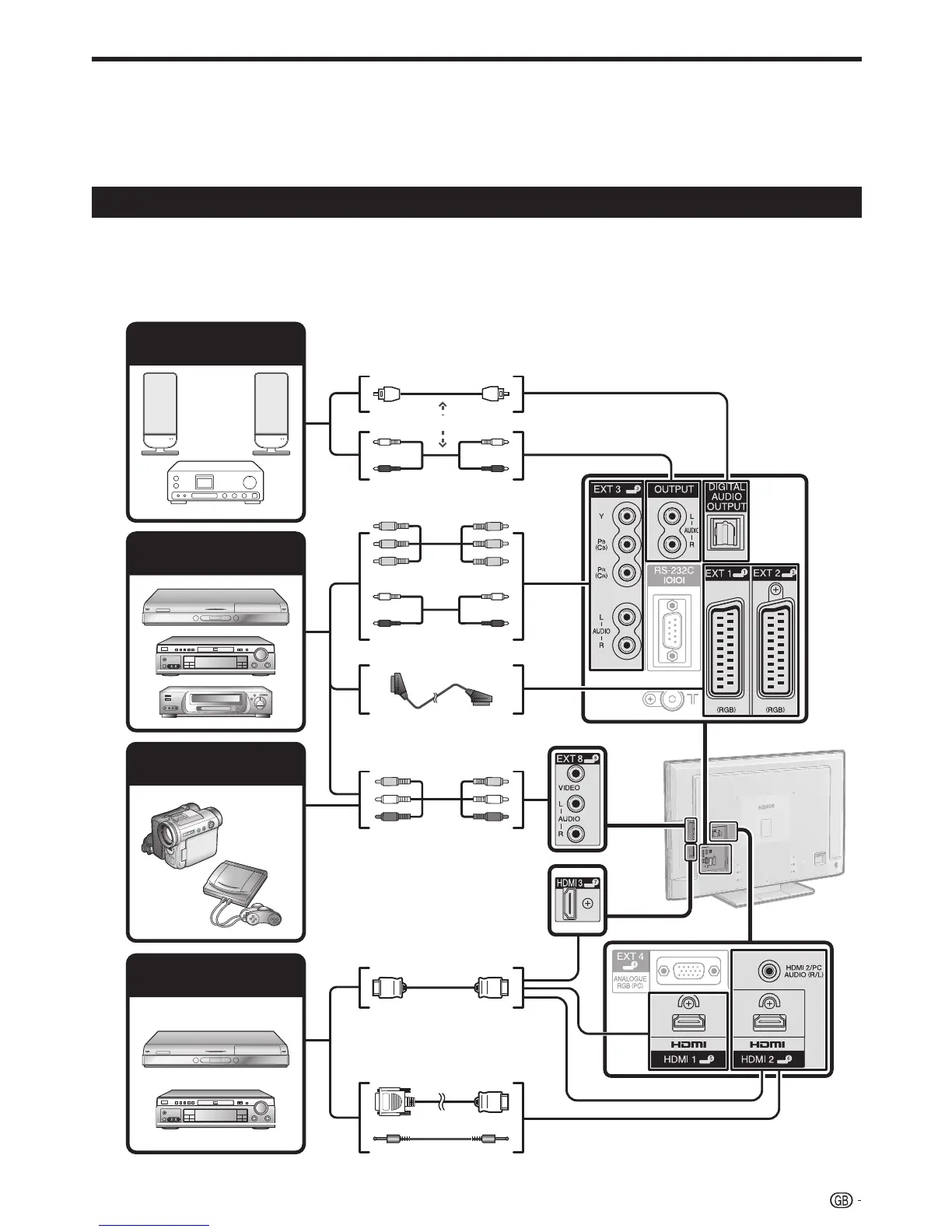

The TV is equipped with the terminals as shown below. Find the cable corresponding the TV’s terminal and
connect the device.
NOTE
The cables illustrated in pages 15–18 are commercially available items.
E
•
•
•
•
•
15
Audio device (Page 18)
Video recording device
(Pages 16 and 17)
Game console or
camcorder (Page 16)
HDMI-certified cable
DVI/HDMI Cable
ø 3.5 mm stereo minijack cable
AV cable
Audio cable
Optical audio cable
SCART cable
Component cable
Audio cable
HDMI device (Page 16)
or
To Next Page
