LC-19LE320, LC-22LE320, LC-26LE320, LC-32LE320, LC-37LE320, LC-42LE320
14

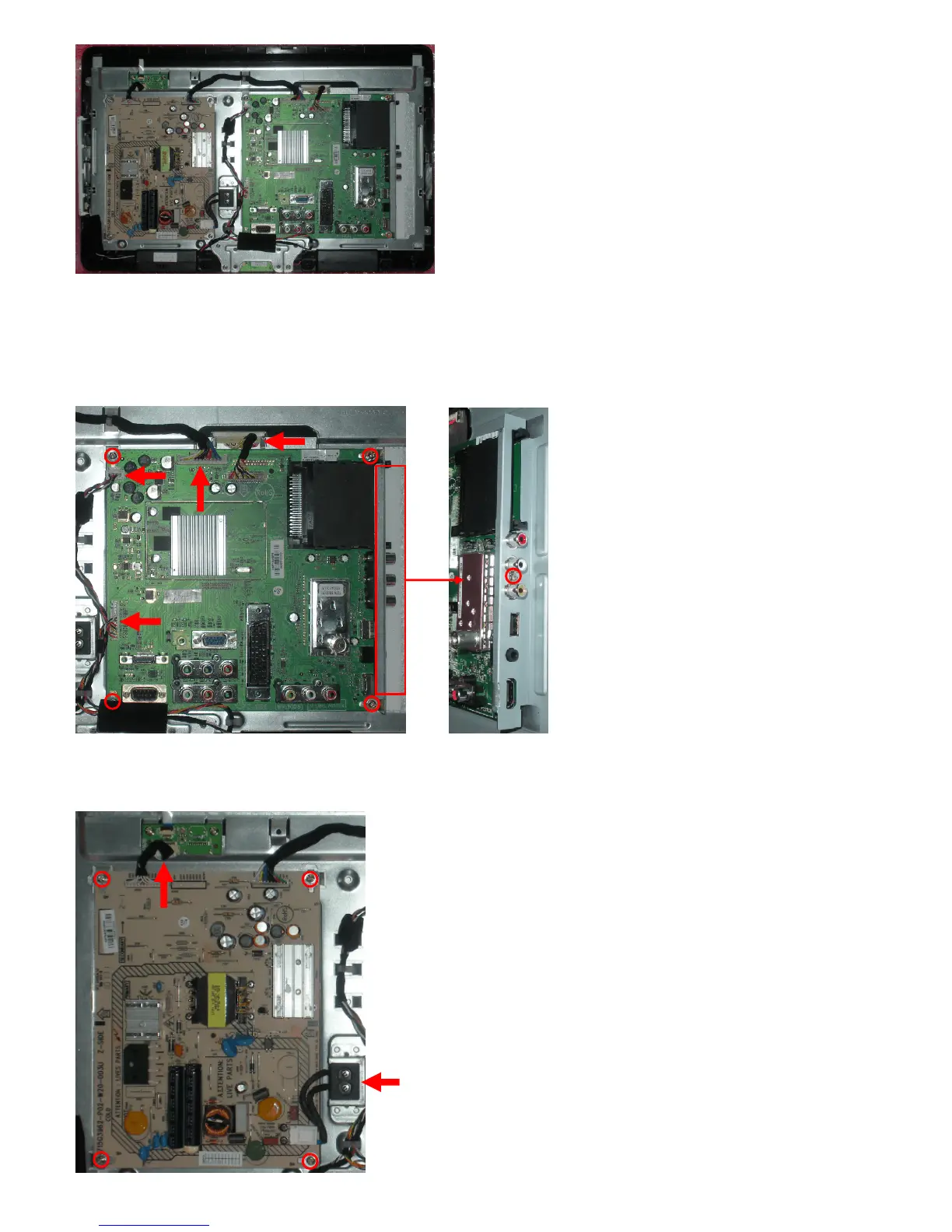

Fig.6
1. Remove the 5 screws and disconnect 3 cables except the LVDS cable, the move the main board out from the side I/O BKT, then move down the main
board a little, now disconnect the LVDS from the panel firstly, then disconnect the LVDS from the main board. Detach the Main board as Fig.7 and Fig.8.
Note: Please disconnect the LVDS cable from the panel firstly, then disconnect the LVDS from the main board.
If you disconnect the LVDS cable with the Main board firstly, maybe the panel connector will be damaged because of the short LVDS cable.
Fig.7 Fig.8
2. Remove the 4 screws and disconnect 2 cables. Detach the Power board as Fig.9.
Note: Move the AC port left from the Main frame assy, then disconnect the AC cable from the power board.
Fig.9
To Next Page
