LC-19LE320, LC-22LE320, LC-26LE320, LC-32LE320, LC-37LE320, LC-42LE320
15

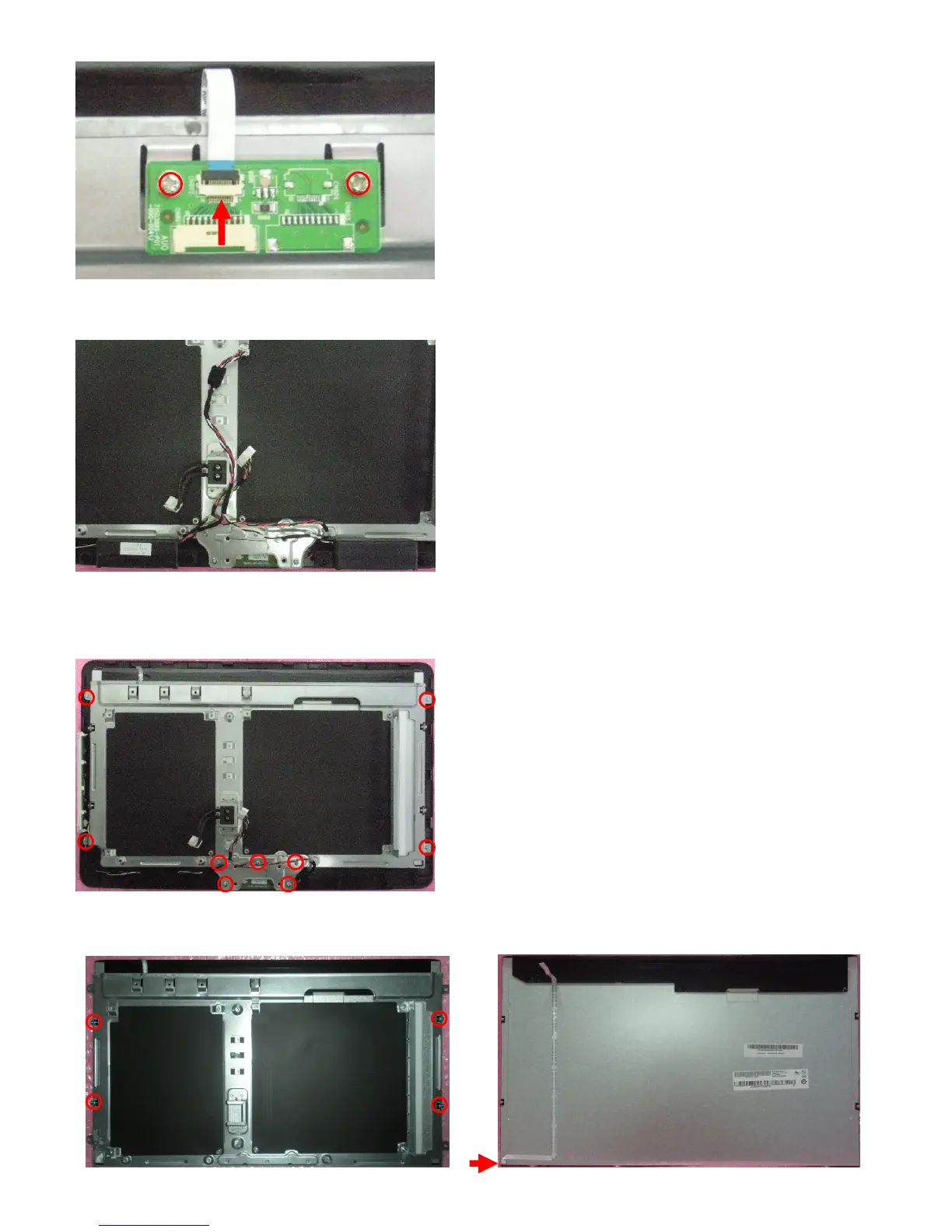

3. Remove the 2 screws and disconnect 1 cables. Detach the Convert board as Fig.10.
Fig.10
4. Release the speaker cable from its clamp, pull up and remove the speaker as Fig.11.
Fig.11
Step 4. Remove the Bracket and Bezel.
1. Remove the 9 screws. Detach the Bracket and panel as Fig.12.
Fig.12
2. Remove the 4 screws. Detach the Main frame as Fig.13. Disconnect the one FFC cable from the panel as Fig.14
Fig.13 Fig.14
