Connecting external devices
E
Before connecting ...
• Be sure to turn off the TV and any devices before making any connections.
• Firmly connect a cable to a terminal or terminals.
• Carefully read the operation manual of each external device for possible connection types. This also helps you
get the best possible audiovisual quality to maximise the potential of the TV and the connected device.
Introduction to connections

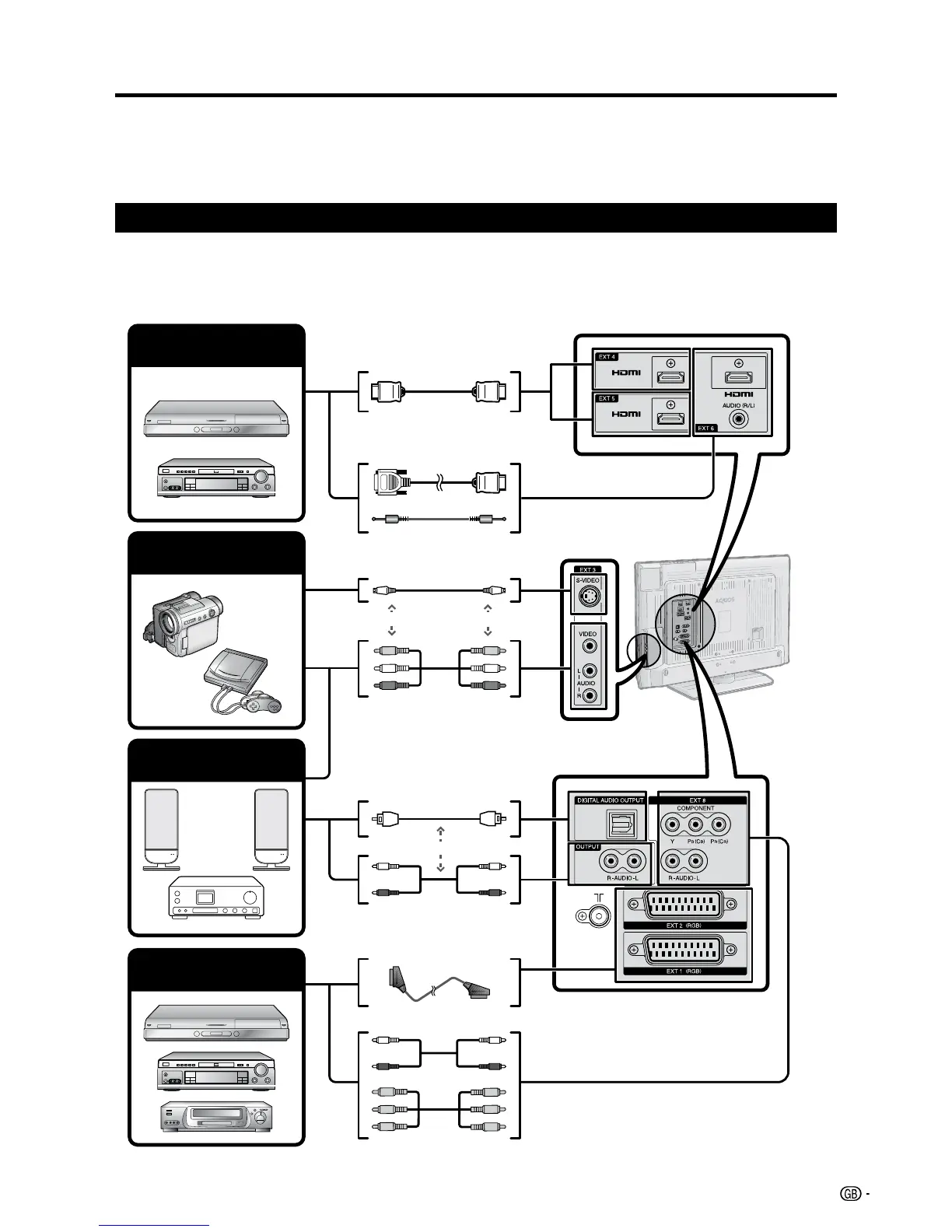

The TV is equipped with the terminals as showed below. Find the cable corresponding the TV’s terminal and
connect the device.
NOTE
• The cables illustrated in pages 15 to 18 are commercially available items.
HDMI device
(Page 16)
Game console or
camcorder (Page 16)
Video recording device
(Pages 16 and 17)
HDMI Cable
DVI/HDMI Cable
ø 3.5 mm stereo minijack cable
S-video cable*
AV cable*
Audio cable
Component cable
SCART cable
or
Audio cable
or
Optical audio cable
Audio device
(Page 18)
or
* When using an S-video cable, you also need to connect an audio cable (R/L).
