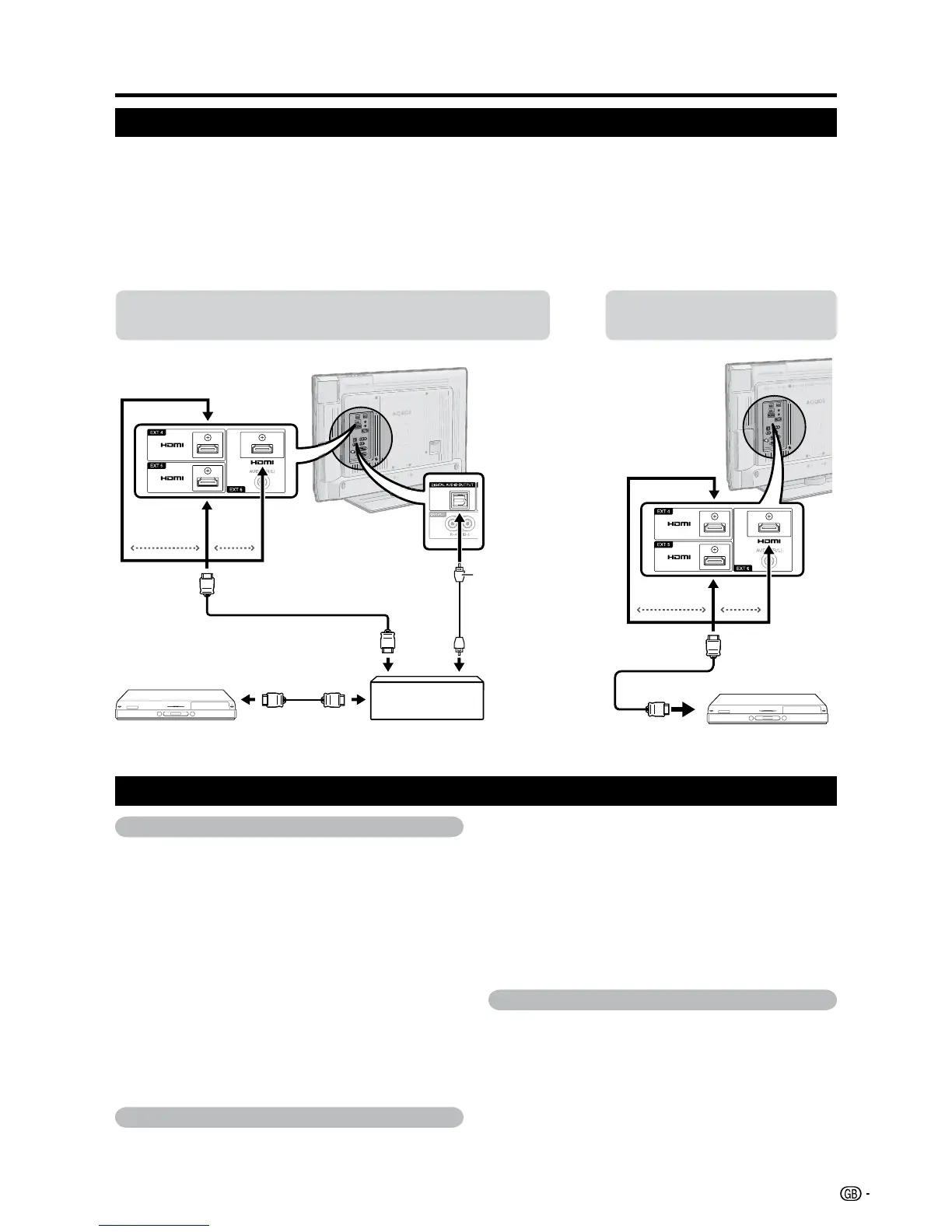

LC-32X20E/S/RU, LC-37X20E/S/RU
2 – 13
3. Remove the 2 lock screws and detach the Speaker L/R.
4. Remove all the connectors from PWBs.
5. Remove the R/C, LED Unit.
6
Speaker R
Speaker L
6
R/C, LED PWB
Wire "RA"
from OBON
R/C, LED PWB Front side
R/C, LED P WB Back side
Pull out Wire "RA" from bottom
1st,Set R/C, LED PWB Under LIB
R/C, LED PWB
(with wire)
Next,Push PWB hooked
#Set PWB to gide lib surely
Wire "RA"
Wire "RA" to WH
