LC-39LD145
LC-32LD145
17

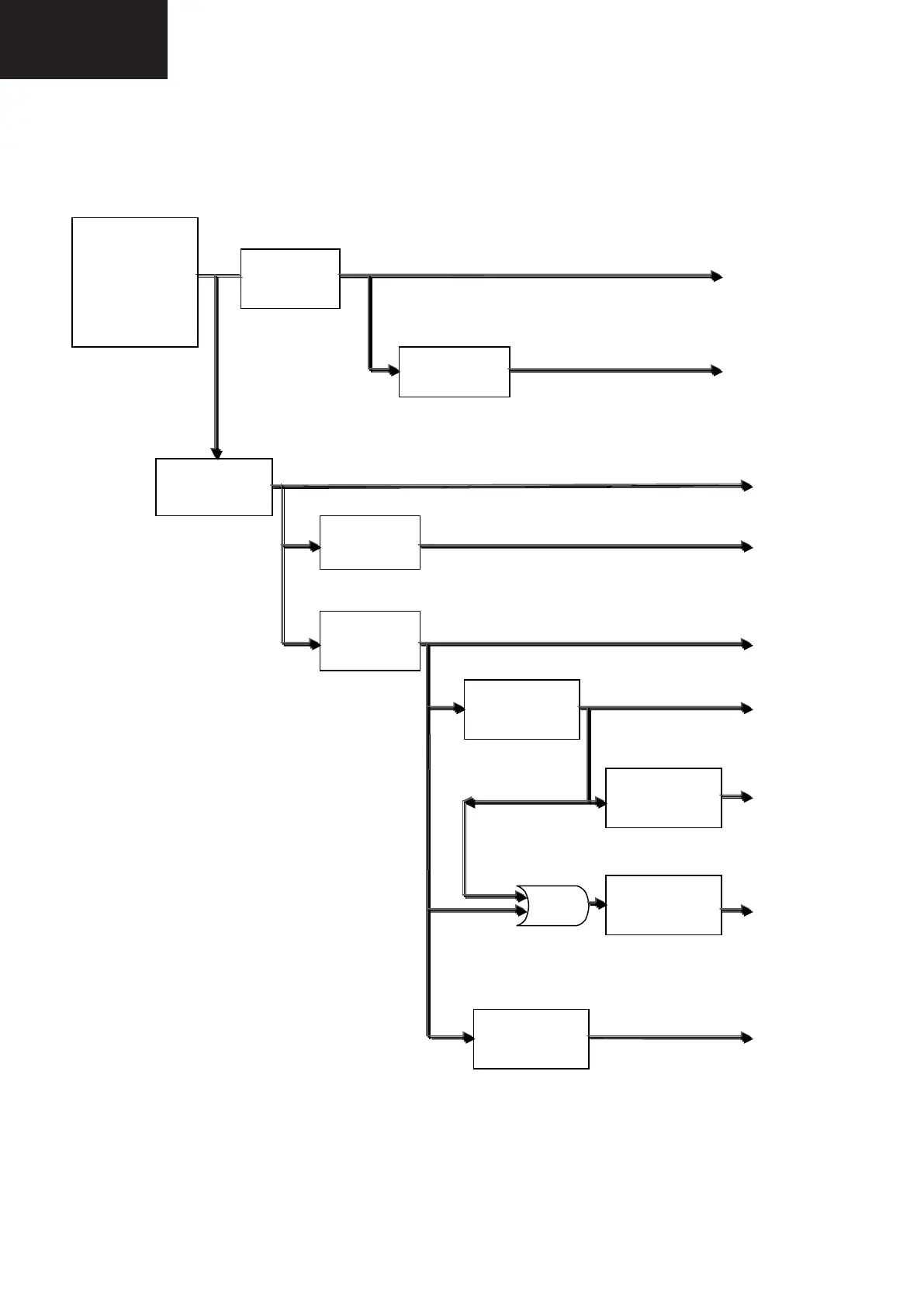

3.1. Power Management
12V_ VC 12V_VCC
1V2_MT5820
5V_STBY
3V_STBY
COMMON
5V_VCC
3.3V_VCC
1.2V_AVCC
1.5V_VCC
3.3V_AVCC
IPS
or
PW
or
ADAPTER
MOSFET
SW1
STP1
T
PS54329E
STP2
TPS54528
MOSFET
SW2
BJT
BC848B
TLV62065
COMMON
LD01
LM117
LD03
APL5910
TLV62065
COMMON
OR
