Sharp LC-39LE651E Service Manual

144
LC-39/50LE650
LC-39/50LE651
LC-39/50LE652
Inserting the stand
Insert the stand into the openings on the bottom
of the TV (Hold the stand so it will not drop from the
edge of the base area).
Insert and tighten the four screws into the four
holes on the rear of the TV.
NOTE
• To detach the stand unit, perform the above steps in reverse order.

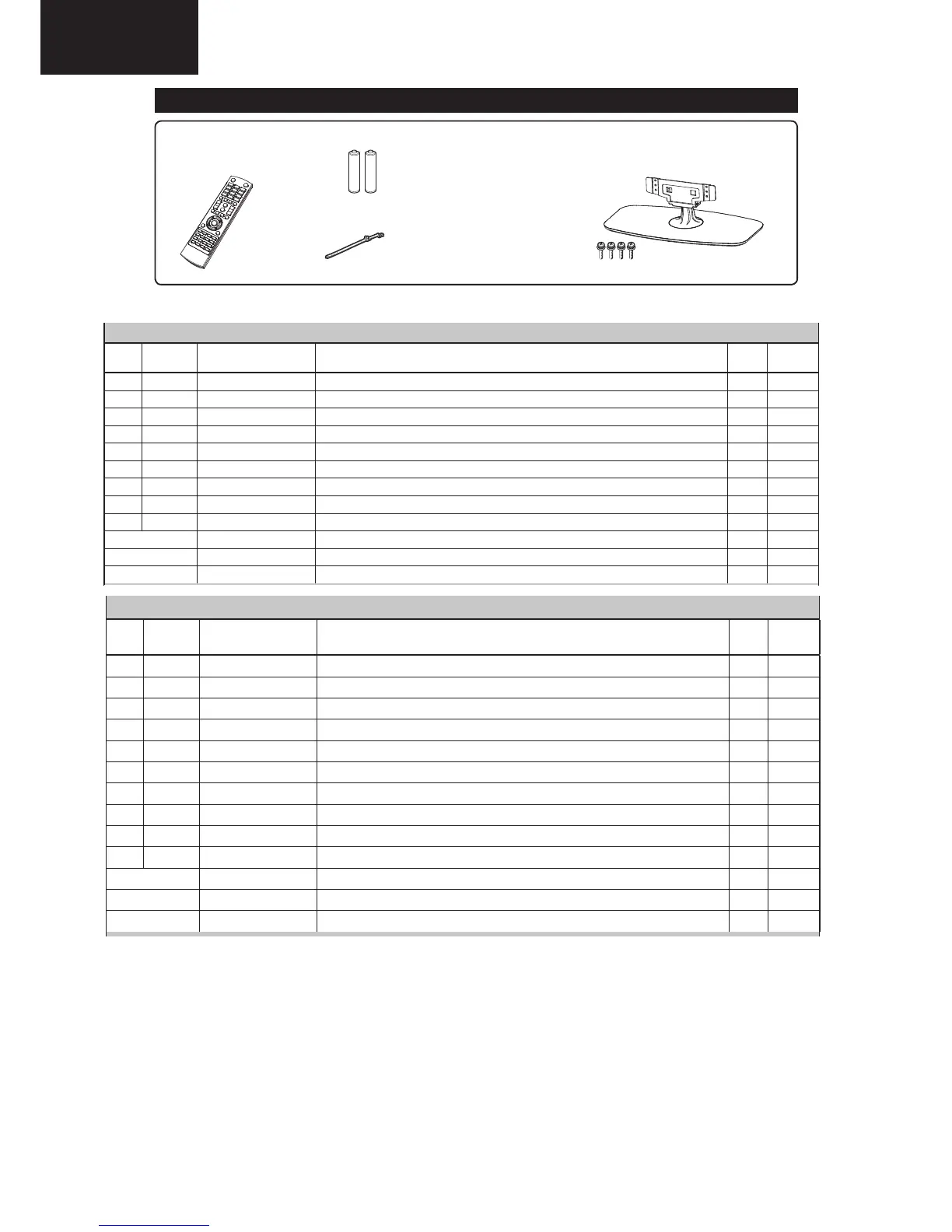

Remote control unit
(g1)
• Operation manual (This publication)
• “AAA” size battery (g2)
Preparation
Supplied accessories
Attaching the stand unit
• Before attaching (or detaching) the stand, unplug the AC cord.
• Before performing work, spread cushioning over the surface on which you will be laying the TV. This will prevent it
from being damaged.
CAUTION
• Attach the stand in the correct direction.
• Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.
Optional accessory
The listed optional accessories are available for this
LCD colour TV. Please purchase them at your nearest
shop.
• Additional optional accessories may be available in the
near future. When purchasing, please read the newest
catalogue for compatibility and check the availability.
• Stand unit (x1)
• This TV should be fixed on a wall only with the wall fix bracket available from SHARP (above table). The use of other
wall fix brackets may result in an unstable installation and may cause serious injuries.
• Fixing the LCD colour TV requires special skills and should only be performed by qualified service personnel.
Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper fixing or
fixing that results in accident or injury.
• You can ask qualified service personnel about using an optional bracket to fix the TV on a wall.
• To use this TV fixed on a wall, first remove the adhesive tape at the two locations on the rear of the TV, and then use the screws
supplied with the wall fix bracket to secure the bracket to the rear of the TV.
• When you fix the TV on a wall, you should attach the supporting post.
Fixing the TV on a wall
• Cable tie (x1)
5
No. Part name Part number
1 Wall mount bracket AN-52AG4
2 Wi-Fi adapter AN-WUD630
3 3D glasses AN-3DG35
4 3D glasses AN-3DG20-B
Soft cushion
REF No. PARTS DESCRIPTION *
PRICE
CODE
1 CCABAC975WE02 KS-CAB-A LC39LE65*E P --
2 GCABAC975WJ1B FRONT CABINET P --
3 DUNTKG135FM04 ADJUST MAIN UNIT LE650/LE750 P --
3 DUNTKG135FM7 ADJUST MAIN UNIT LE652/LE752 P --
3 DUNTKG135FM08 ADJUST MAIN UNIT LE651/LE751 P --
¡ 4 RDENCA459WJQZ POWER UNIT W/O LED DRIVER 39"/50" CMI P --
5 CDAI-A864WJ01 KS-STAND LC39LE65*E P --
6 HDECQB797WJ1A PIRAMID LIGHTING DIFFUSER (CHLDFA077WE01 ctrl button set) P --
7 DUNTKG221WE01 KEY UNIT LE65x (CHLDFA077WE01 ctrl button set) P --
8 LHLDFA077WJ1A CONTROL HOLDER LE650_LE750E (CHLDFA077WE01 ctrl button set) P --
9 GCABBC168WJ1A REAR CABINET LC39LE750 P --
10 GCOVAE525WJ1A AC CORD COVER LC50LE650_750 P --
11 LANGKD808WJFW STAND BRACKET LC39LE650_750 P --
12 LANGKD818WJFW TERMINAL BRACKET P --
LE652 12 LANGKD916WJFW TERMINAL BRACKET SATELLITE P --
13 LHLDWA303WJKA WIRE HOLDER (Rear Cabinet location) P --
14 PZETKA726WJKZ INSULATION SHEET POWER P --
15 QCNW-N266WJQZ PD WIRE 14 PINS 39" 50"(SERIES 65x/75x P --
16 QCNW-N268WJQZ LV WIRE 51 PINS 39"MODELS TOTOKU P --
17 QCNW-N269WJQZ LW WIRE 41 PINS 39" TOTOKU P --
18 QCNW-N267WJQZ RA WIRE 39" (SERIES 65x/75x) P --
19 QCNW-N265WJQZ LA WIRE 14 PINS 39" (SERIES 65x/75x) P --
20 RLCDTA283WJZZ LCD 39" 100Hz FHD V390HK1-LE6 CMI P --
21 QACCKA055WJPZ AC CORD P --
21 QACCBA106WJPZ AC CORD ( FOR UK) P --
22 RSP-ZA614WJZZ SPEAKER SET (x2 WITH CABLE) P --
23 TLABNC117WJZZ MODEL LABEL (DLAB-E832WE01 set) P --
24 TLABZD484WJZZ ENERGY LABEL 39" P --
25 XBBS740P06000 SCREW M4 x 6 P --
26 XBPS730P06WS0 SCREW PAN ST ZN M3x6 P --
27 XEPS730P08WS0 SCREW PAN ST ZN 3x8 P --
28 LX-BZA541WJF8 STAND SCREW M4x7 BK (CSAKAA186WJ02 BAG ASSEMBLY) P --
29 LX-BZA540WJF7 SCREW PAN ST FLAT HEAD M3x6 P --
REF No. PARTS DESCRIPTION *
PRICE
CODE
CSAKAA186WJ02 SCREW STAND BAG ASSEMBLY P --
LX-BZA541WJF8 STAND SCREW M4x7 BK P --
CSAKAA187WJ03 BAG ACCESSORIES SET SERIES LE650 P --
UBATUA047WJZZ BATTERY R03-x2 ROCKET P --
RRMCGB067WJSA REMOTE CONTROL UNIT (LE650 SERIES) P --
TINS-F675WJZZ OWNERS MANUAL SERIE LE65x E (EUROPE) P --
TINS-F682WJZZ OWNERS MANUAL SERIE LE65x V (EAST EUROPE) P --
TINS-F683WJZZ OWNERS MANUAL SERIE LE65x RU (RUSSIA) P --
TINS-F831WJZZ OWNERS MANUAL SERIE LE65x E (NORDICS) P --
Only Models K TGAN-A801WJN1 GUARANTEE P --
Only Models K TGAN-A802WJN1 GUARANTEE / AQUOS CARE P --
Only Model RU K
TGAN-B651WJZZ GUARANTEE SHEET RUSSIAN P --
REF No. PARTS DESCRIPTION *
PRICE
CODE
SPAKCH189WJZZ PACKING CASE 39" LC39LE650E P --
SPAKPB475WJZZ PE BAG 40" LC39LE65*/75* P --
SPAKXD842WJZZ PACKING FOAM TOP 39" P --
SPAKXD843WJZZ PACKING FOAM BOTTOM 39" P --
39" CABINET AND MECHANICAL PART LISTING
ACCESSORIES PARTS LISTING
39" PACKING PARTS LISTING
REF No. PARTS DESCRIPTION *
PRICE
CODE
1 CCABAC966WE02 KS-CAB-A LC50LE65*E P --
2 GCABAC966WJ1B FRONT CABINET P --
3 DUNTKG135FM04 MAIN PWB / ADJUST MAIN UNIT LE750/LE650 P --
3 DUNTKG135FM7 ADJUST MAIN UNIT LE652/LE752 P --
3 DUNTKG135FM08 ADJUST MAIN UNIT LE651/LE751 P --
¡ 4 RDENCA459WJQZ POWER UNIT W/O LED DRIVER 39"/50" CMI P --
5 CDAI-A865WJ01 KS_STAND BASE LC50LE650E P --
6 HDECQB797WJ1A PIRAMID LIGHTING DIFFUSER (CHLDFA077WE02 ctrl button set) P --
7 DUNTKG221WE02 KEY UNIT LE65x (CHLDFA077WE02 ctrl button set) P --
8 LHLDFA077WJ1A CONTROL HOLDER LE650_LE750E (CHLDFA077WE02 ctrl button set) P --
9 GCABBC157WJ1A REAR CABINET LC50LE750 P --
10 GCOVAE525WJ1A AC CORD COVER LC50LE650_750 P --
11 LANGKD773WJFW STAND BRACKET LC50LE650_750 P --
12 LANGKD752WJFW BOTTOM BRACKET P --
LE652 12 LANGKD880WJFW BOTTOM BRACKET SATELLITE P --
13 LANGKD753WJFW SIDE BRAKET P --
14 LHLDWA303WJKA WIRE HOLDER (Rear Cabinet location) P --
15 PZETKA722WJKZ INSULATION SHEET POWER P --
16 QCNW-N266WJQZ PD WIRE 14 PINS 39" 50"(SERIES 65x/75x P --
17 QCNW-N286WJQZ LV WIRE 51 PINS 50" TOTOKU P --
18 QCNW-N285WJQZ LW WIRE 41 PINS 50" TOTOKU P --
19 QCNW-N031WJQZ RA wire 50" (SERIES 65x/75x) P --
20 QCNW-N036WJQZ LA wire 14 pins 50" (SERIES 65x/75x) P --
21 RLCDTA282WJZZ LCD 50" 100Hz FHD V500HK1-LE6 CMI P --
22 QACCKA055WJPZ AC CORD P --
23 RSP-ZA614WJZZ SPEAKER SET (x2 WITH CABLE) P --
24 TLABNC117WJZZ MODEL LABEL (DLAB-E834WE01 set) P --
25 TLABZD469WJZZ ENERGY LABEL 50" P --
26 XBBS740P06000 SCREW M4 x 6 P --
27 XBPS730P06WS0 SCREW PAN ST ZN M3x6 P --
28 XEPS730P08WS0 SCREW PAN ST ZN 3x8 P --
29 LX-BZA540WJF7 FLAT HEAD SCREW M3X6 P --
30 LX-BZA541WJF8 STAND SCREW M4x10 BK (CSAKAA186WJ02 BAG ) P --
31 LHLDWA294WJUZ WIRE HOLDER P --
REF No. PARTS DESCRIPTION *
PRICE
CODE
CSAKAA186WJ02 SCREW STAND BAG ASSEMBLY
P --
LX-BZA541WJF8 STAND SCREW M4x10 BK P --
CSAKAA187WJ06 SCREW /BAG ACCESS SET LC50LE650/651/652
P --
UBATUA047WJZZ BATTERY R03-x2 ROCKET P --
RRMCGB067WJSA REMOTE CONTROL UNIT (LE650 SERIES) P --
TINS-F675WJZZ OWNERS MANUAL LE65x P --
TINS-F675WJZZ OWNERS MANUAL SERIE LE65x E (EUROPE) P --
TINS-F682WJZZ OWNERS MANUAL SERIE LE65x V (EAST EUROPE) P --
TINS-F683WJZZ OWNERS MANUAL SERIE LE65x RU (RUSSIA) P --
TINS-F831WJZZ OWNERS MANUAL SERIE LE65x E (NORDICS) P --
Only Models K TGAN-A801WJN1 GUARANTEE P --
Only Models K TGAN-A802WJN1 GUARANTEE / AQUOS CARE P --
Only Model RU K
TGAN-B651WJZZ GUARANTEE SHEET RUSSIAN P --
REF No. PARTS DESCRIPTION *
PRICE
CODE
SPAKCH188WJZZ PACKING CASE 50" LC50LE65*
P --
SPAKCH009WJZZ BOTTOM CASE LC50LE75*
P --
SPAKPB477WJZZ P_ BAG /HOSSO-PP FOR 46" P --
SPAKXD817WJZZ PACKING FOAM TOP 50" P --
SPAKXD818WJZZ PACKING FOAM BOTTOM 50" P --
50" CABINET AND MECHANICAL PART LISTING
ACCESSORIES PARTS LISTING
50" PACKING PARTS LISTING
