2. Removing of major Parts 50”
2.1. Remove the 4 lock screws  and detach the Stand.
2.2. Remove the 14 lock screws , 1 lock screw , 1 lock screw  and detach the AC cord cover and Rear Cabinet
LC-50LE650
LC32D44E-BK
Service Manual
CHAPTER 2. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS

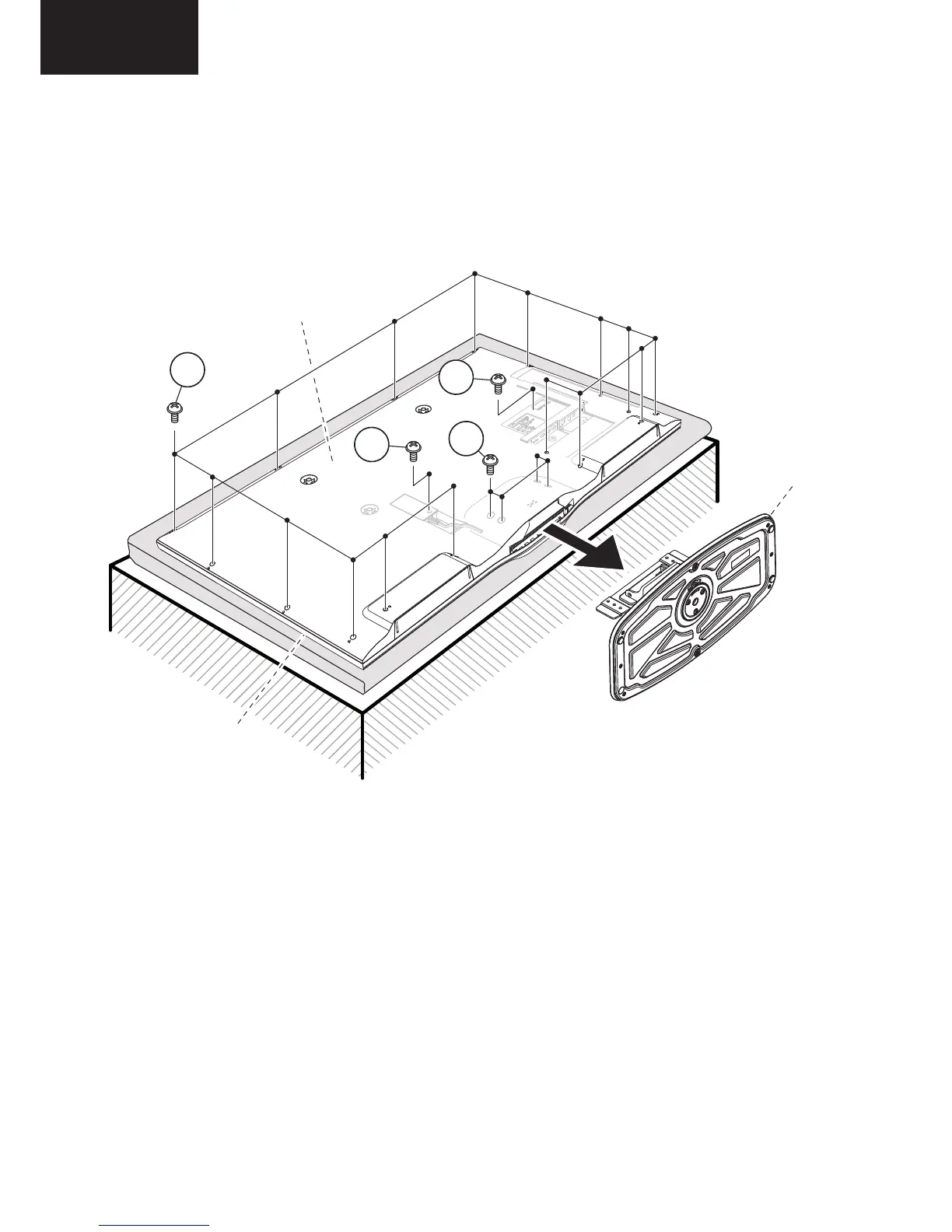

1. Remove the 4 lock screws and detach the Stand.
2. Remove the 14 lock screws , 1 lock screw , 1 lock screw and detach the AC cord cover and the Rear Cabinet.
2
1
3
4
1 / 5
1 / 5
STAND
2
front
CABINET
rear
CABINET
1
3
4
STAND
