34
LC-32LE63x
LC-40LE63x
LC-46LE63x

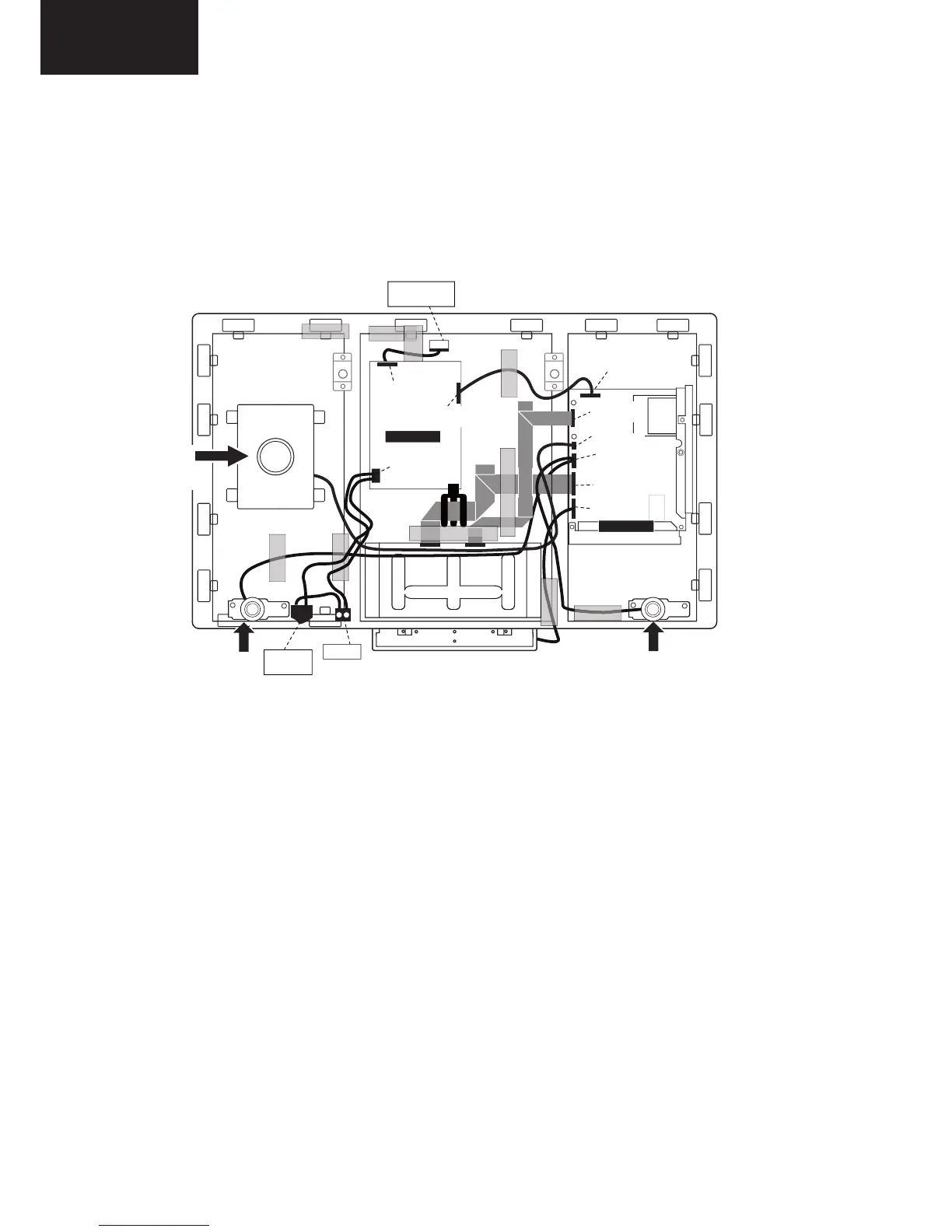

4.3.8 Removing of major Parts 40” (Continued)
4. Disconnect all the connectors from all the PWBs.
[1M19]
SPEAKER -R
(TWEETER)
MAIN
SWITCH
INLET
SPEAKER -L
(TWEETER)
[1M95]
TO DISPLAY
SUPPLY
[1M99]
[1316]
[1308]
[1G50]
[1D38]
[1735]
[1G51]
SPEAKER
(SUBWOOFER)
MAIN UNIT
POWER UNIT
