LC-40/46/52/60LE835U/830U/832U/LC-60LE831U
4 – 1
LC-40LE830U
Service Manual
CHAPTER 4. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS (LC-40LE835U/830U/832U)

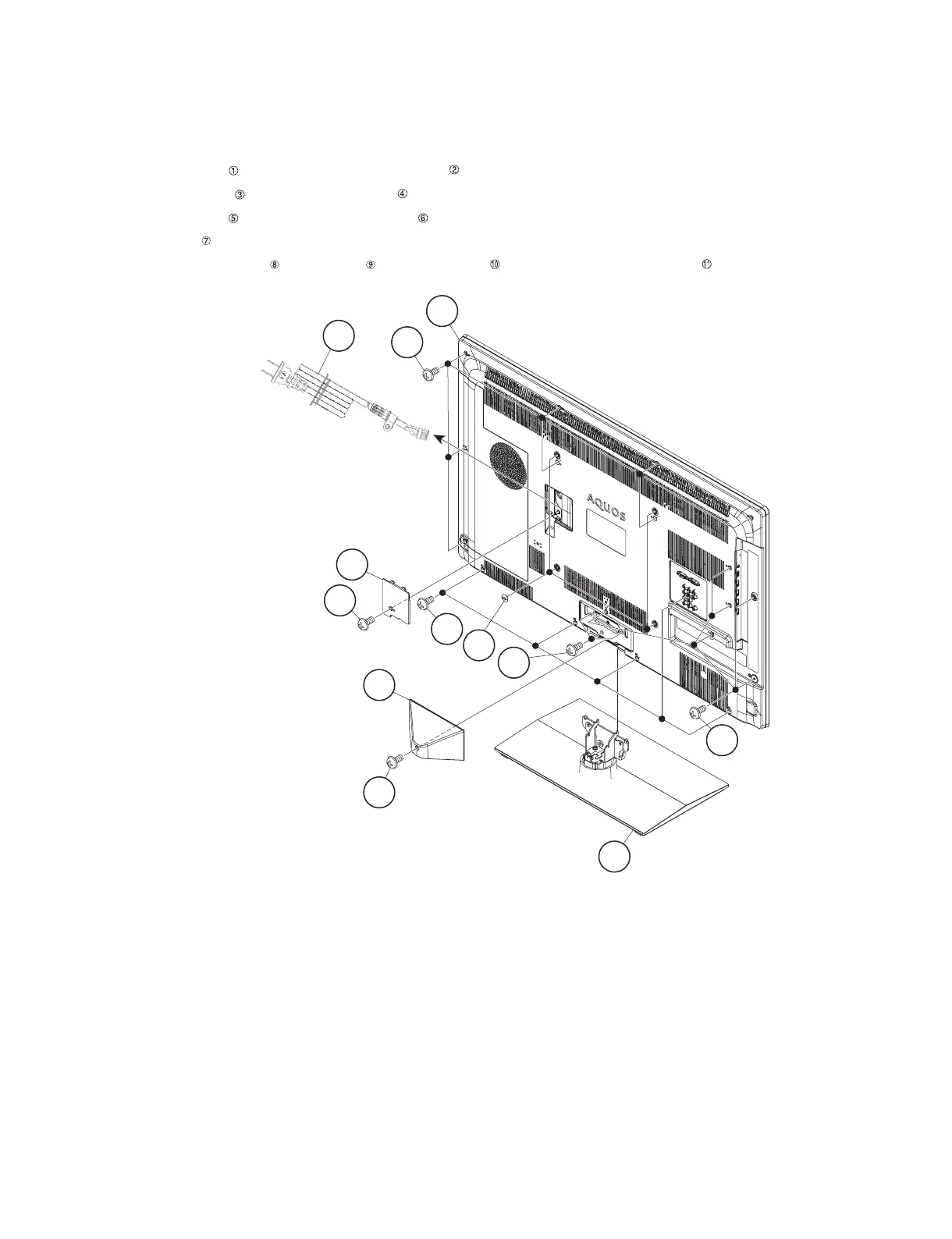

1. Removing of Stand Unit and Rear Cabinet Ass’y.
1. Remove the 1 lock screw and detach the Stand Support Cover .
2. Remove the 3 lock screws and detach the Stand Unit .
3. Remove the 1 lock screw and detach the AC Cord Cover .
4. Disconnect AC Cord .
5. Remove the 4 Vesa Hole Covers , 5 lock screws and 14 lock screws and detach the Rear Cabinet Ass’y .
Rear Cabinet Ass'y
2Stand Support Cover
6AC Cord Cover
11
10
5
1
AC Cord
7
4Stand Unit
9
10
3
8
To Next Page
