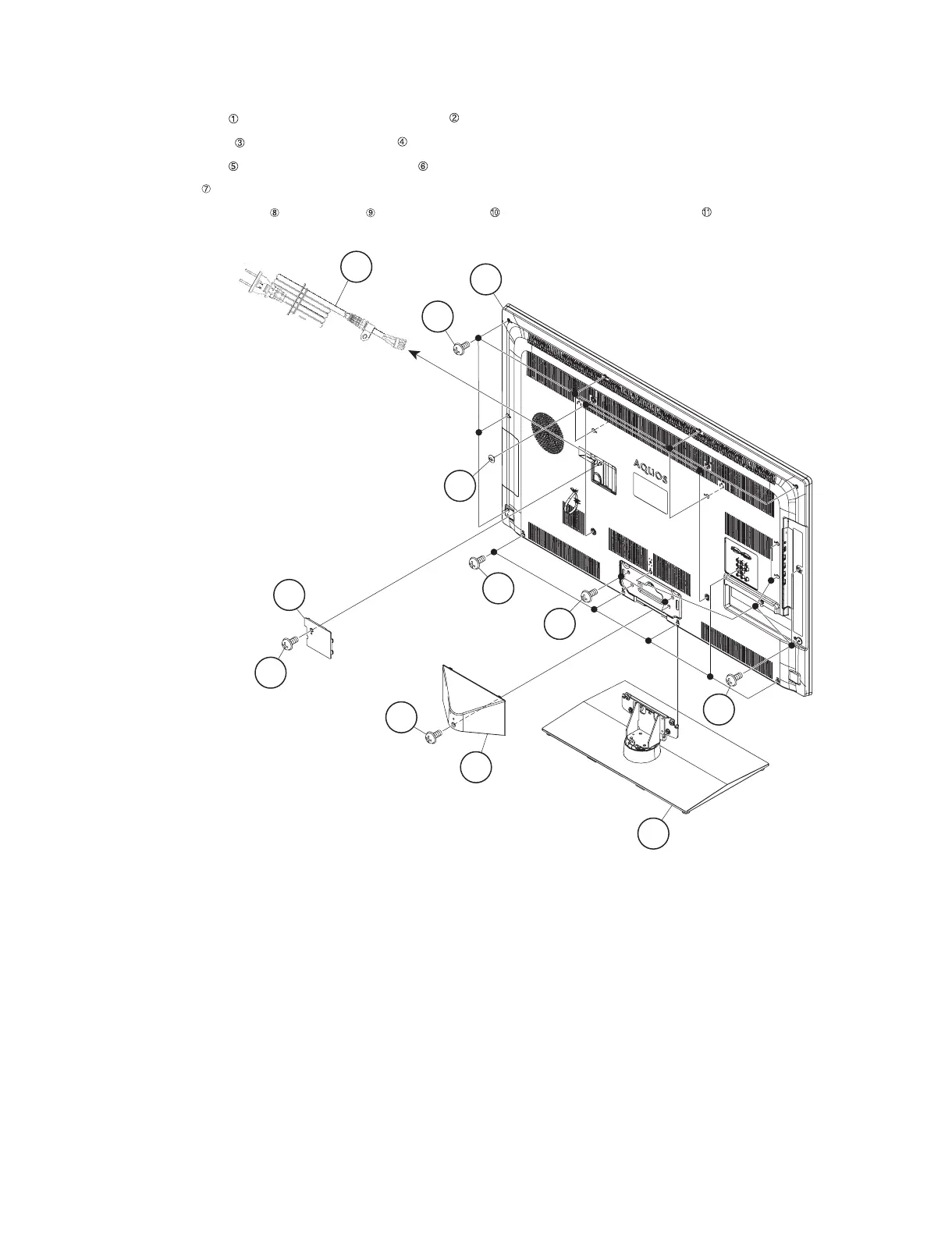

[2] REMOVING OF MAJOR PARTS (LC-46LE835U/830U/832U)
1. Removing of Stand Unit and Rear Cabinet Ass’y.
1. Remove the 1 lock screw and detach the Stand Support Cover .
2. Remove the 4 lock screws and detach the Stand Unit .
3. Remove the 1 lock screw and detach the AC Cord Cover .
4. Disconnect AC Cord .
5. Remove the 4 Vesa Hole Covers , 5 lock screws and 14 lock screws and detach the Rear Cabinet Ass’y .
2Stand Support Cover
1
4Stand Unit
3
8
6AC Cord Cover
5
AC Cord
7
9
10
Rear Cabinet Ass'y
11
10
