Sharp LC-40LE832U - Page 34

LC-40/46/52/60LE835U/830U/832U/LC-60LE831U
4 – 18

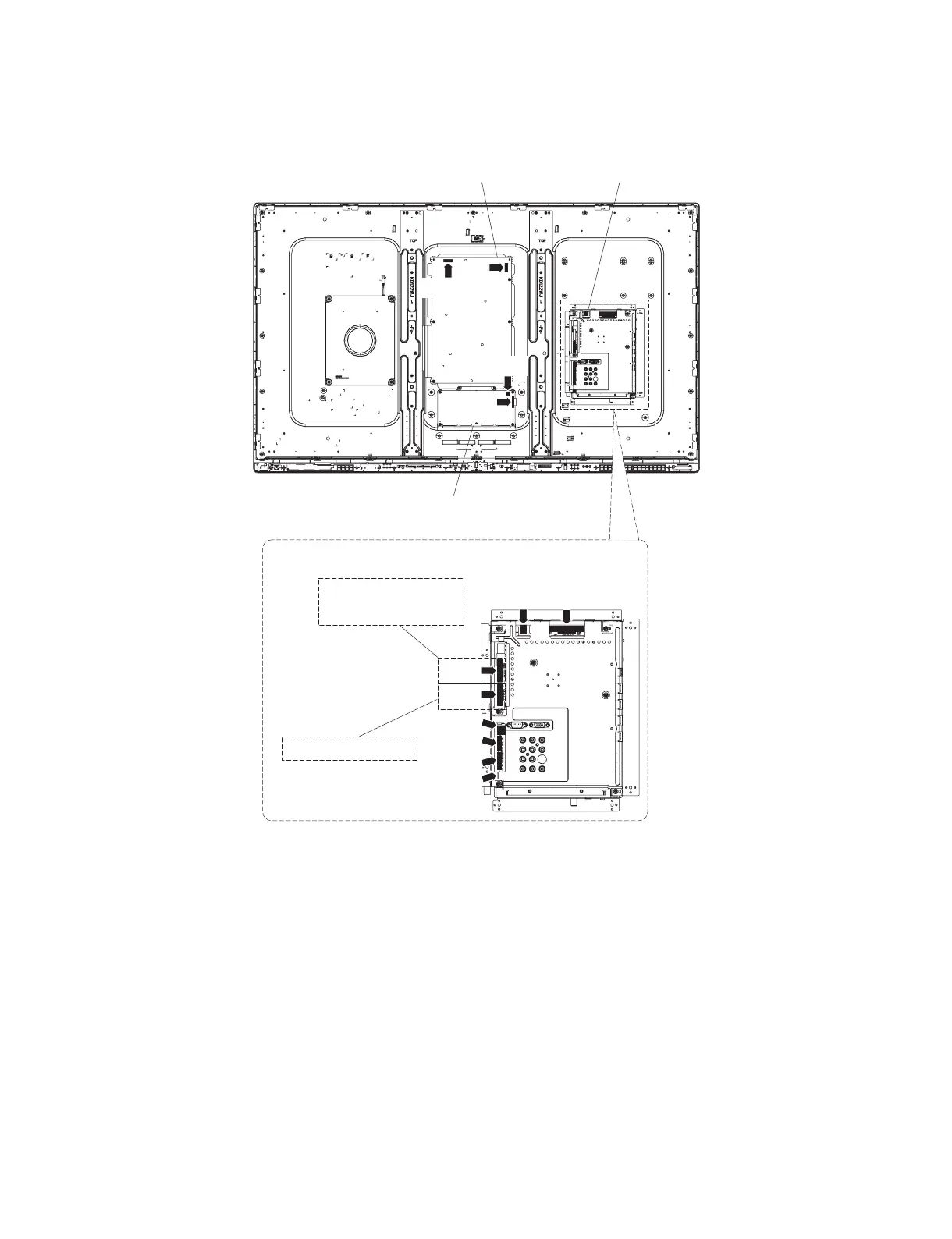

3. Removing of Connectors
1. Disconnect the following connectors from the MAIN Unit. (SB, PD, LW (LC-60LE835U), PL, RC, Cl, UB, LV (LC-60LE830U/831U/832U))
2. Disconnect the following connectors from the POWER/LED Drive Unit. (PD, LA)
3. Disconnect the following connectors from the LCD Control Unit. (LW, PL)
MAIN UnitPOWER/LED Drive Unit
LCD Control Unit
[PD]
[LA]
[LW]
[PL]
MAIN Unit
LC-60LE830U/
831U/832U
[SB]
[PD]
[UB]
[CI]
[RC]
[PL]
[LW]
[LV]
LC-60LE835U
