LC-40/46LE810E, LC-40/46LX810E
4 – 10

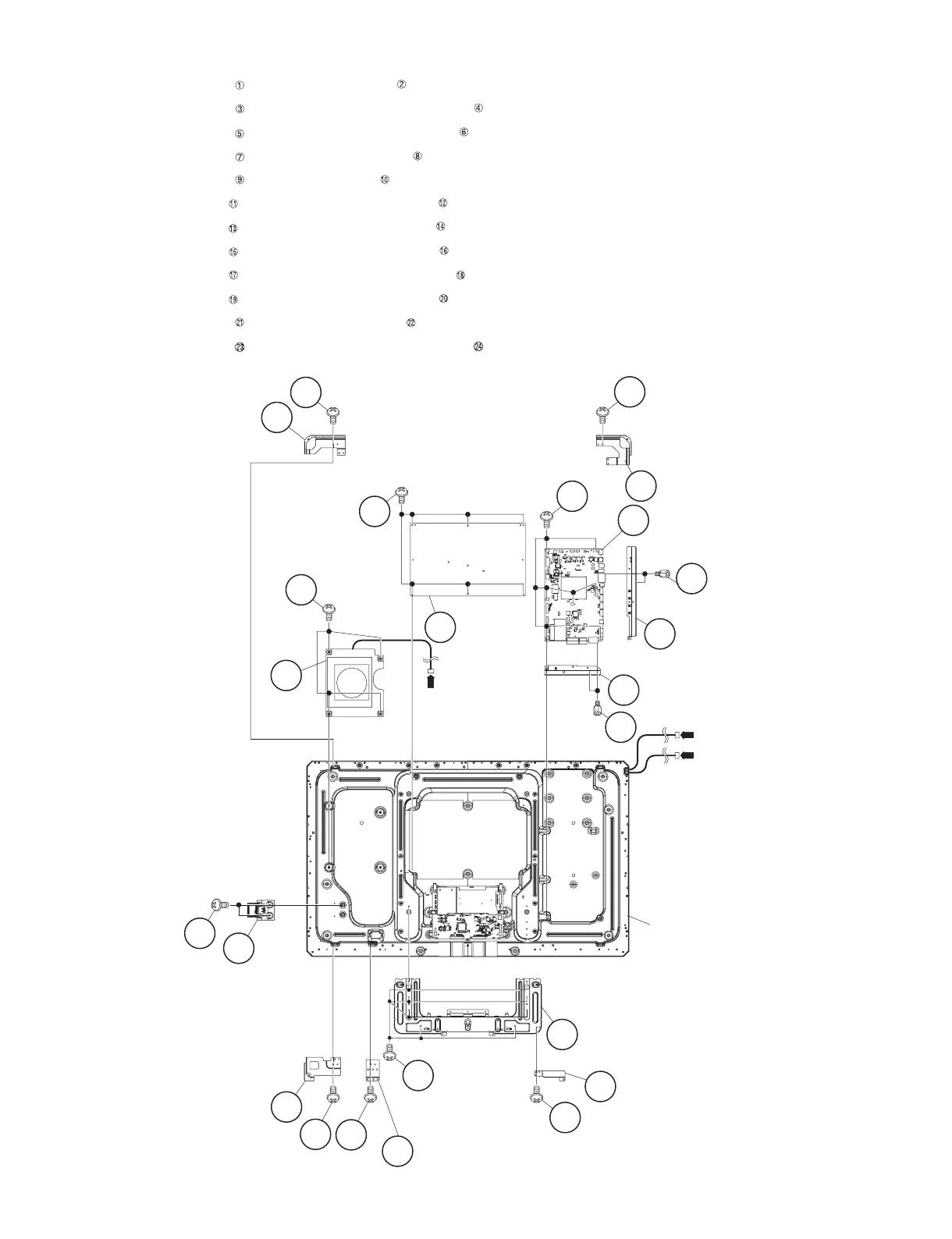

5. Removing of MAIN Unit, POWER Unit, Sub Woofer, Stand Angle.
1. Remove the 7 lock screws and detach the MAIN Unit
2. Remove the 2 lock screws and detach the Terminal Angle (Bottom) .
3. Remove the 2 lock screws and detach the Terminal Angle (Side) .
4. Remove the 6 lock screws and detach the POWER Unit .
5. Remove the 4 lock screws and detach the Woofer .
6. Remove the 1 lock screw and detach the LCD Angle (Top-R) .
7. Remove the 1 lock screw and detach the LCD Angle (Top-L) .
8. Remove the 1 lock screw and detach the LCD Angle (B-C-A) .
9. Remove the 1 lock screw and detach the LCD Angle (Bottom-L) .
10.Remove the 1 lock screw and detach the LCD Angle (B-C-B) .
11.Remove the 8 lock screws and detach the Stand Angle .
12.Remove the 2 lock screws and detach the ECO Switch with Holder .
