Sharp LC-42D64U User Manual

LC-42/46/52D64U
4 – 5

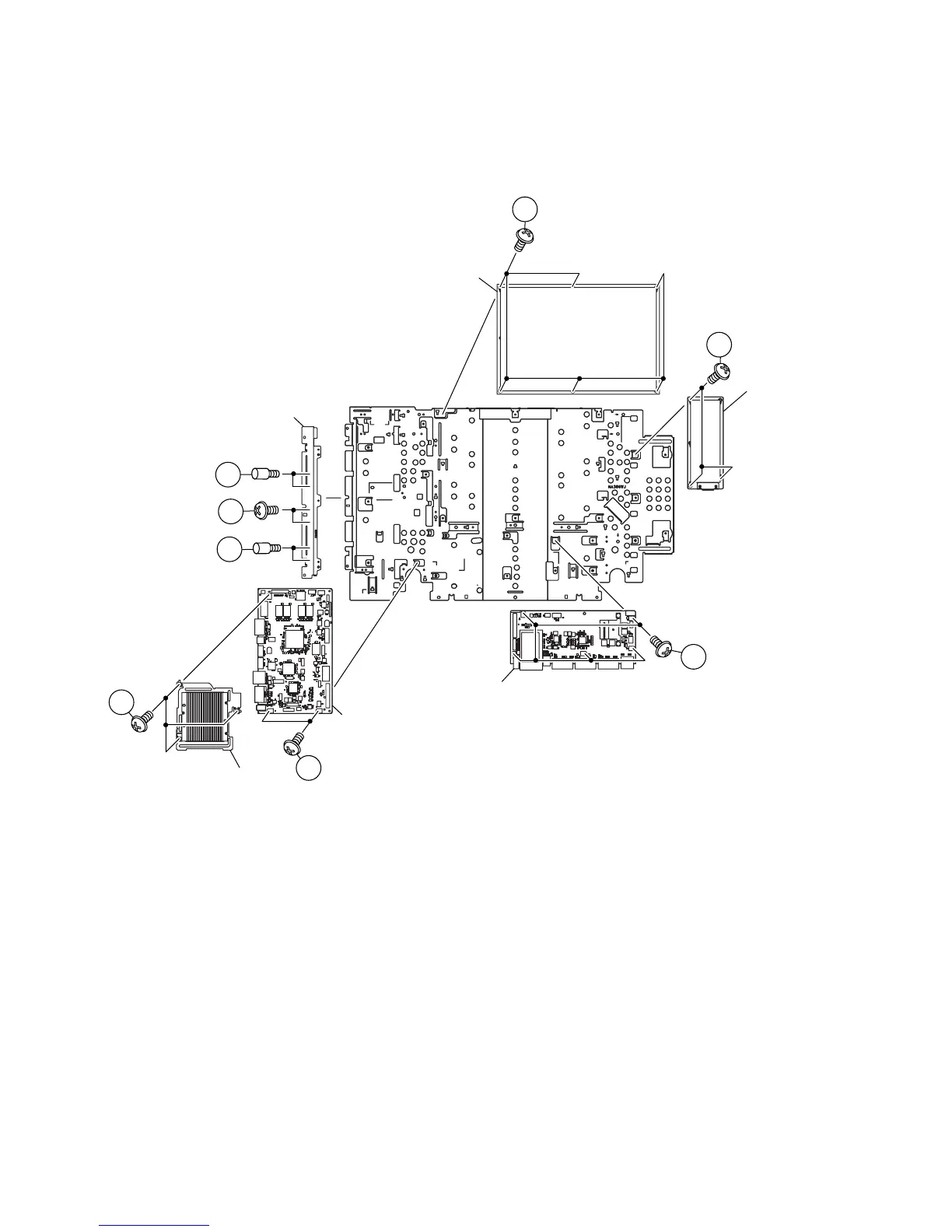

8. Remove the 2 lock screws, 2 lock Shaft, 2 lock Shaft and detach the Terminal Side Angle.
9. Remove the 3 lock screws and detach the AC INLET Unit.
10.Remove the 6 lock screws and detach the POWER Unit.
11.Remove the 5 lock screws and detach the TERMINAL Unit.
12.Remove the 3 lock screws and detach the MAIN PWB Radiator.
13.Remove the 2 lock screws and detach the MAIN Unit.
AC INLET Unit
POWER Unit
TERMINAL Unit
Terminal Side Angle
MAIN PWB Radiator
MAIN Unit
9
10
8
8
8
11
12
13
