Sharp LC-42D64U - N358 Composite Signal Adjustment (Tuner); Component 15 K Signal Adjustment; Component 33 K Signal Adjustment; Analog RGB Signal Adjustment

LC-42/46/52D64U
5 – 11
7.3. N358 composite signal adjustment (Tuner)
7.4. Component 15K signal adjustment
7.5. Component 33K signal adjustment
7.6. Analog RGB signal adjustment
Adjustment item Adjustment conditions Adjustment procedure
1 Adjustment N358 signal Feed the NTSC (3.58) split field color bar signal (75% color saturation)
to VIDEO 1 input. Feed the RF signal (by use of US-10ch) to TUNER-A.
2 Auto adjustment
performance
Page 3/32 Bring the cursor on [•N358 ALL ADJ] and press [ENTER].
[•N358 ALL ADJ FINISH] appears when finished.
Adjustment item Adjustment conditions Adjustment procedure
1 Adjustment 480i signal Feed the 100% color bar signal to INPUT 1 component input.
2 Auto adjustment
performance
Page 5/32 Bring the cursor on [•COMP 15K ADJ] and press [ENTER].
[•COMP 15K ADJ FINISH] appears when finished.
Adjustment item Adjustment conditions Adjustment procedure
1 Adjustment 1080i signal Feed the 100% color bar signal to INPUT 1 component input.
2 Auto adjustment
performance
Page 6/32 Bring the cursor on [•COMP 33K ADJ] and press [ENTER].
[•COMP 33K ADJ FINISH] appears when finished.
Adjustment item Adjustment conditions Adjustment procedure
1 Adjustment Analog RGB signal: XGA
(1024 x 768) 60Hz
SYNC: HV separate
Feed the XGA 100% color bar signal to ANALOG RGB input.
2 Auto adjustment
performance
Bring the cursor on [•ANALOG RGB ADJ] and press [ENTER].
[•ANALOG RGB ADJ OK] appears when finished.

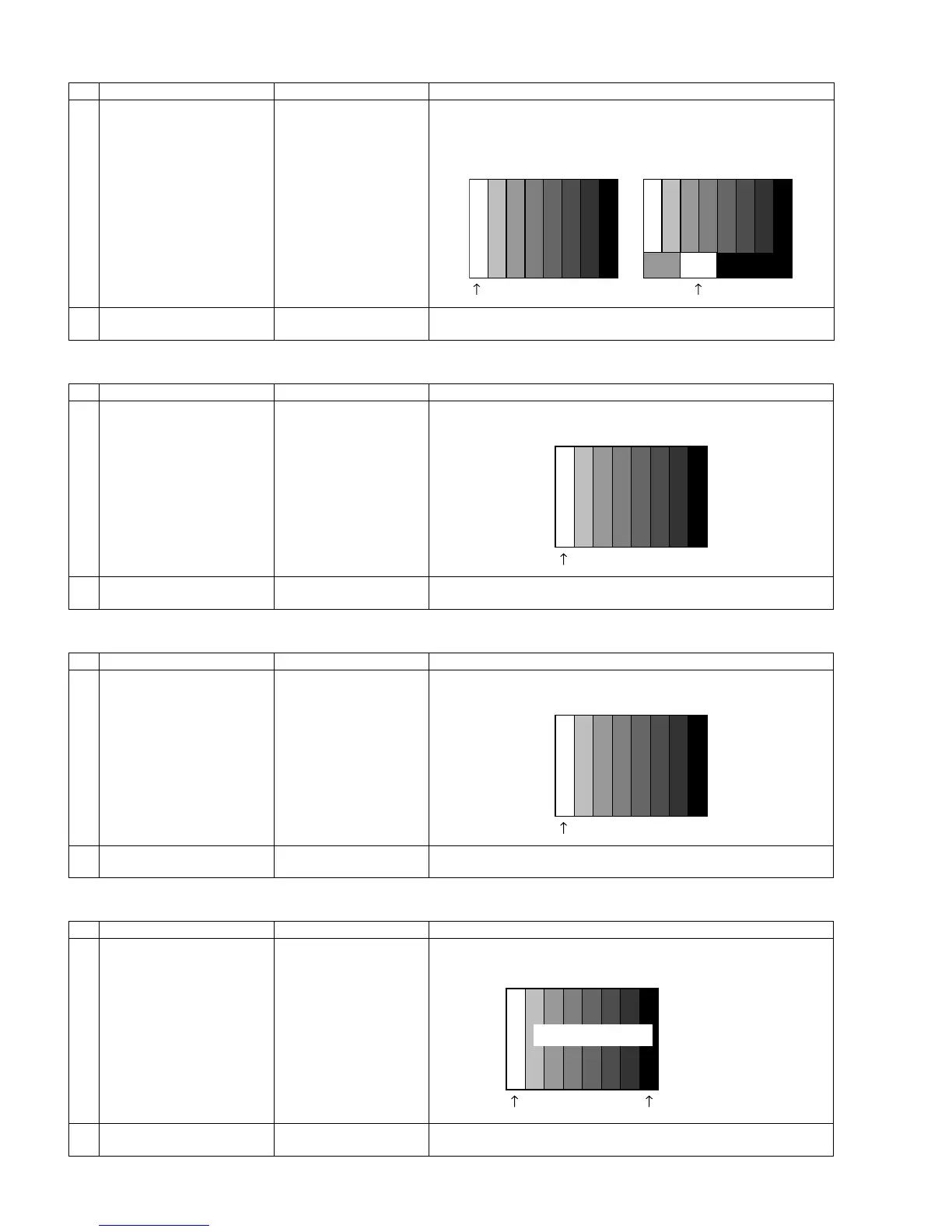

[Video input signal] [US-10CH]
100% white 100% white
100% white
100% white
100% white 0% black
XGA
100% color bar
100% Color saturation
