LC-42XL2E/S/RU, LC-46XL2E/S/RU, LC-46X20E/S/RU, LC-52XL2E/S/RU, LC-52X20E/S/RU
5 – 6
2.3. IC803 (VHiSii9181+-1Q)

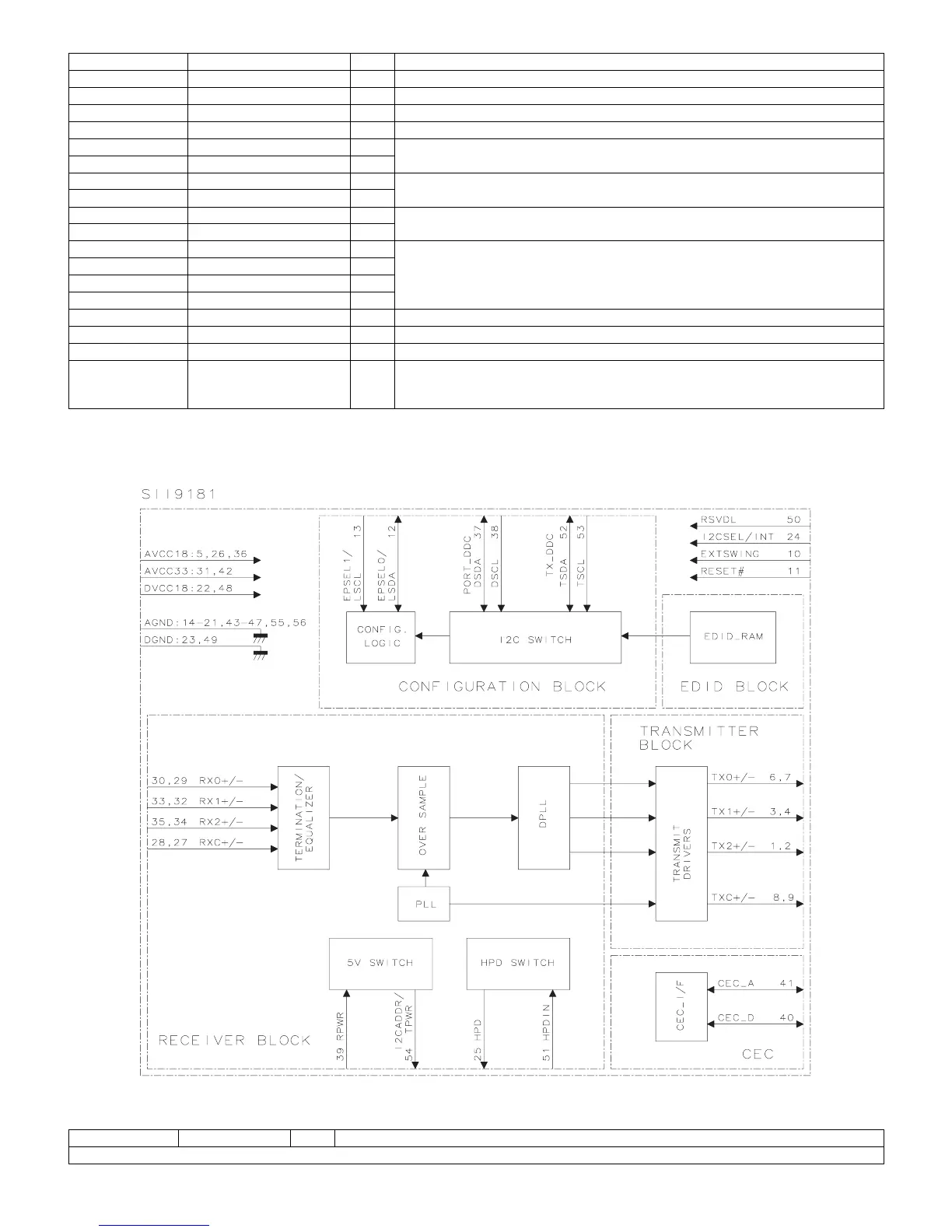

2.3.1 Block Diagram
2.3.2 Pin Connections and short description
49 DCOUT O DC output for S-terminal.
51 VOUT3 O Monitor output (composit signal)
50 COUT3/VOUT6 O Monitor output (Chroma or composite signal)
52 YOUT3/ VOUT5 O Monitor output (Luminance or composite signal)
54 PROUT2 O Colour difference PR-signal output.
58 PROUT1 O
55 PBOUT2/ COUT2 O Colour difference PB-signal or chroma signal output.
59 PBOUT1/ COUT1 O
56 CYOUT2/ YOUT2/ VOUT2 O Colour difference signal, Luminance or composite signal output.
60 CYOUT1/ YOUT1/ VOUT1 O
64 O1 O Output port.
66 O2 O
72 O3 O
78 O4 O
53, 57 VDD1 — Power supply (+9V)
8, 47 VDD2 — Power supply (+5V)
18, 44, 62 GND — Ground
4, 6, 10, 11, 12, 13,
17, 19, 39, 41, 43,
48, 61, 63
NC — Unconnected pins.
Pin No. Pin Name I/O Pin Function
System Switching
Pin No. Pin Name I/O Pin Function
