LC-42XL2E/S/RU, LC-46XL2E/S/RU, LC-46X
20E
/S/RU, LC-52XL2E/S/RU, LC-52X20E/S/RU
2 – 50

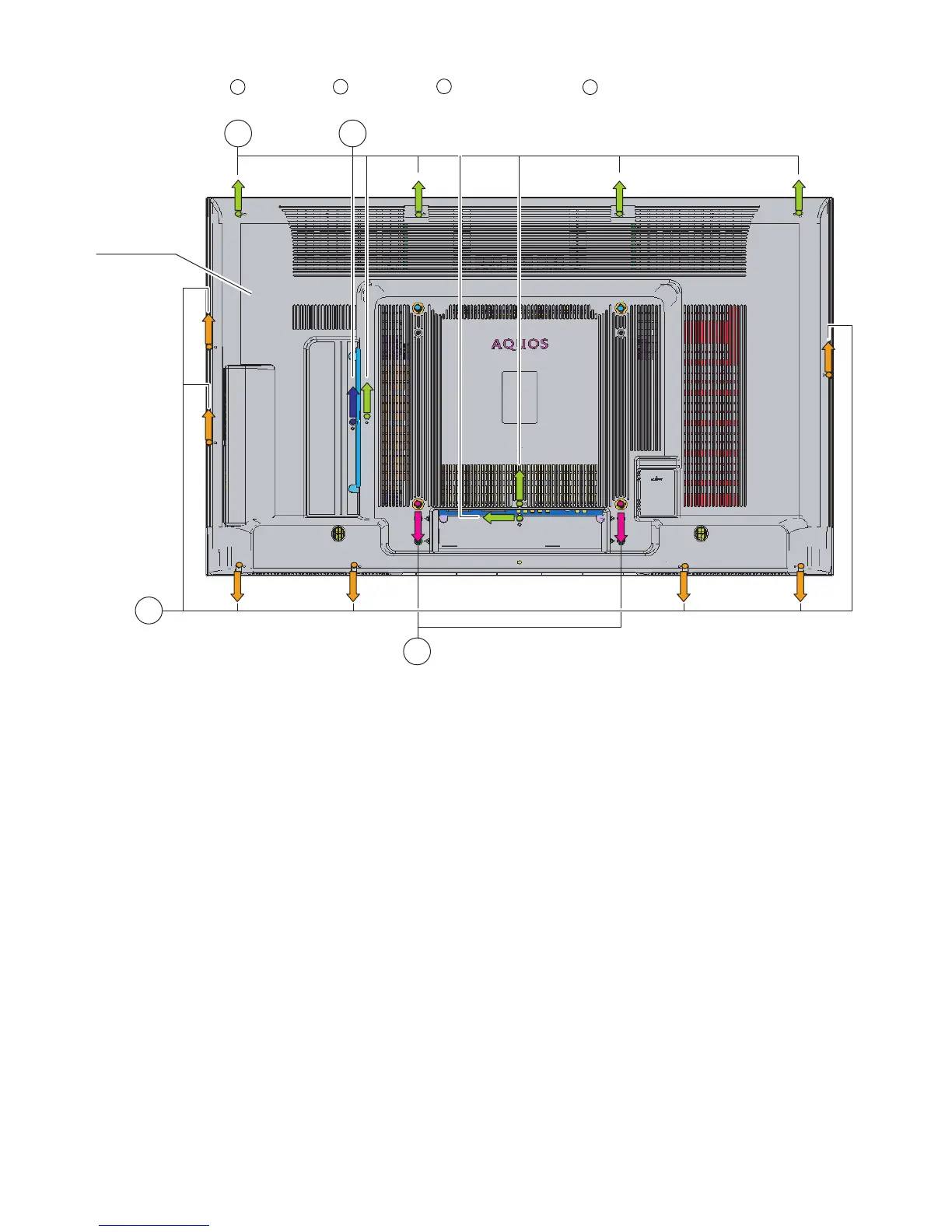

[5] REMOVING OF MAJOR P
ARTS (LC-52X20E/S/RU)
1.
Remove the 1 lock screw
, 2 lock screws
, 7 lock scre
ws
and the 7 lo
ck screws
. Detach the Rear Cabinet.
1
2
3
4
Rear
Cabinet
1
2
3
4
66
68
Table of Contents
Default Chapter
1
Table of Contents
1
Service Manual
1
Safety Precaution
2
Important Service Safety Precaution
2
Precautions for Using Lead-Free Solder
3
Chapter 1. Operation Manual Specifications (Lc-42/46/52Xl2E/S/Ru)
4
Specifications (Lc-46/52X20E/S/Ru)
5
Operation Manual (Lc-42/46/52Xl2E/S/Ru)
6
Operation Manual (Lc-46/52X20E/S/Ru)
11
Dimensions (Lc-42/46/52Xl2E/S/Ru)
16
Dimensions (Lc-46/52X20E/S/Ru)
17
Chapter 2. Removing of Major Parts
18
(Lc-42Xl2E/S/Ru)
18
Removing of Major Parts (Lc-46Xl2E/S/Ru)
18
Removing of Major Parts (Lc-46X20E/S/Ru)
43
Removing of Major Parts (Lc-52Xl2E/S/Ru)
55
Removing of Major Parts (Lc-52X20E/S/Ru)
67
Chapter 3 . Adjustment Procedure
81
Adjustment Procedure
81
Adjustment Process Mode Menu
83
Video Signal Adjustment Procedure
93
White Balance Adjustment
95
Upgrading the Software
97
Chapter 4. Troubleshooting Table Troubleshooting Table
99
Chapter 5. Major IC Informations
121
Major IC Informations
121
Chapter 6. Block Diagram/Wiring Diagram
163
System Block Diagram
163
Terminal Block Diagram
164
Main Block Diagram
165
Power Block Diagram
166
Wiring Diagram (Lc-42Xl2E/S/Ru)
167
Wiring Diagram (Lc-46Xl2E/S/Ru)
168
Wiring Diagram (Lc-46X20E/S/Ru)
169
Wiring Diagram (Lc-52Xl2E/S/Ru)
170
Wiring Diagram (Lc-52X20E/S/Ru)
171
Chapter 7. Printed Wiring Board
172
Main Unit Printed Wiring Board
172
Terminal Unit Printed Wiring Board
176
R/C, Led Unit Printed Wiring Board
178
Key Unit Printed Wiring Board
178
Mini Av Unit Printed Wiring Board
179
Illumination Unit Printed Wiring Board
181
Power Unit Printed Wiring Board
182
Ac Inlet Unit Printed Wiring Board
184
Chapter 8. Schematic Diagram
185
Description of Schematic Diagram
185
Schematic Diagram
186
Parts Guide
