LC-42XL2E/S/RU, LC-46XL2E/S/RU, LC-46X20E/S/RU, LC-52XL2E/S/RU, LC-52X20E/S/RU
2 – 51
2. Remove all the connectors from PWBs.

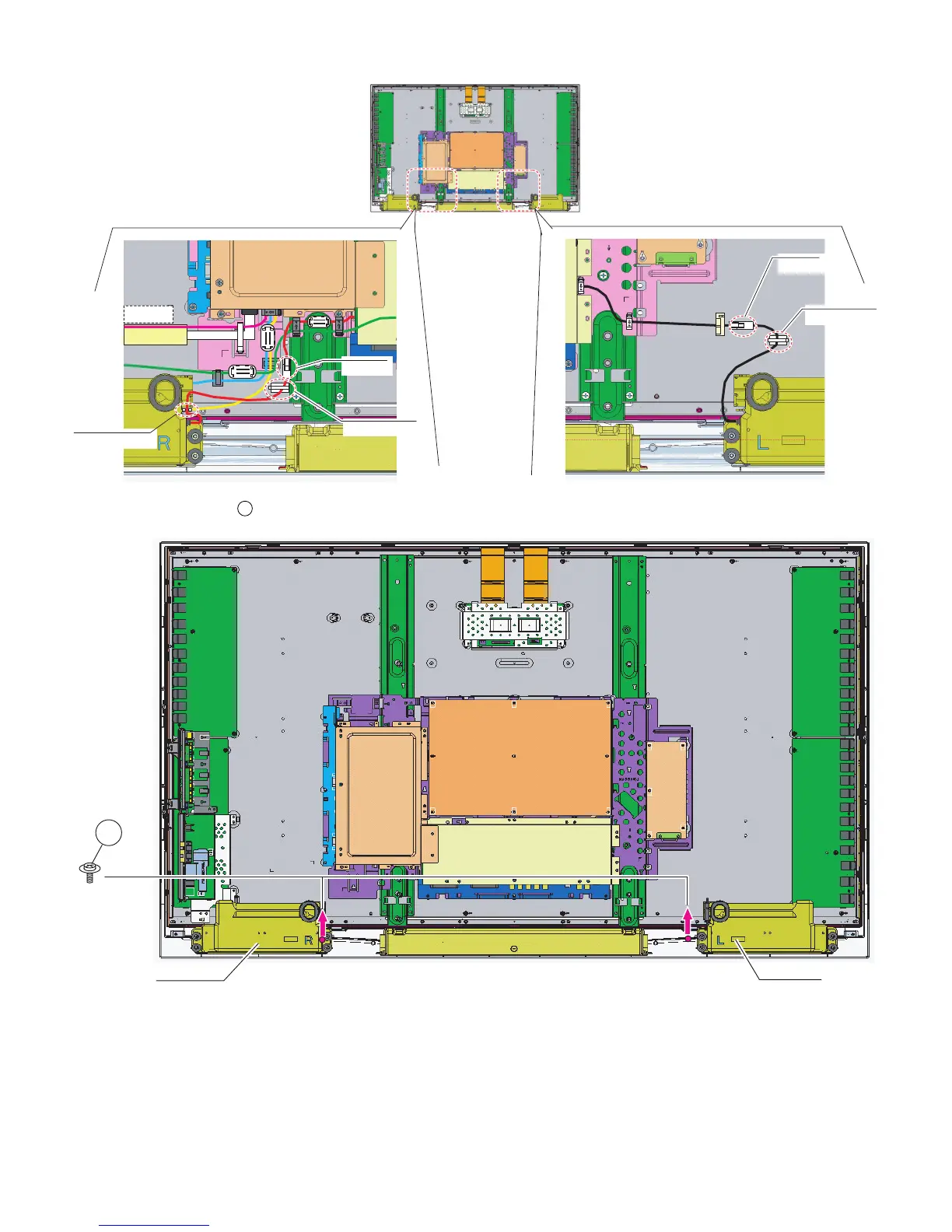

3. Remove the 2 lock screws . and detach the Speaker L/R.
Wire "SP"
Wire "SP" to WH
Wire "SP"
Wire "SP" to WH
Wire "SP" to PIN
5
Speaker R
Speaker L
5
