4. Remove all the connectors from PWBs.
5. Remove the R/C, LED Unit.

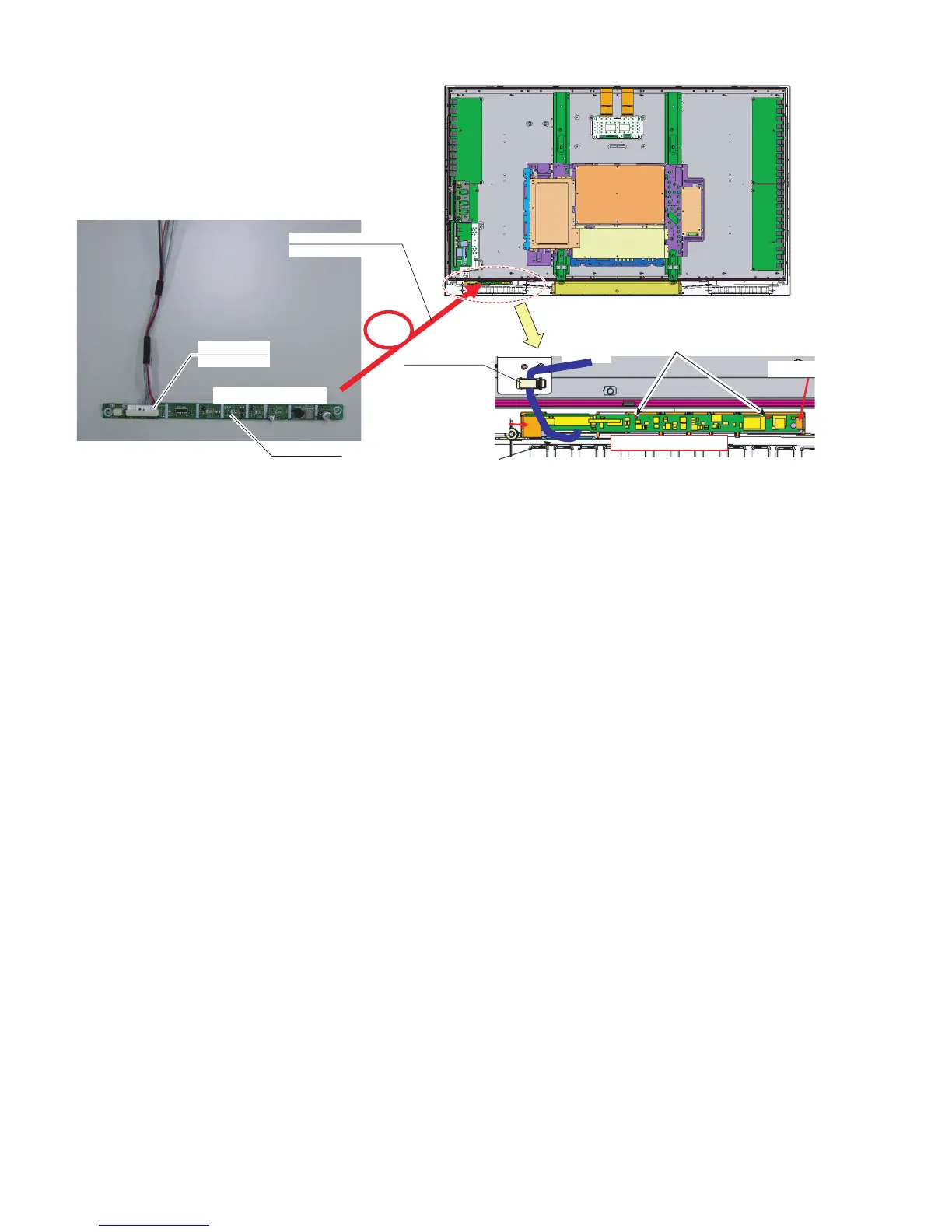

R/C, LED PWB
Wire "RA"
from OBON
Wire "RA"
R/C, LED PWB Front side
R/C, LED PWB Back side
Pull out Wire "RA" from bottom
Set R/C, LED PWB Under LIB
R/C, LED PWB
(with wire)
Next,Push PWB hooked
#Set PWB to gide lib surely
Wire "RA" to WH
