LC-42XL2E/S/RU, LC-46XL2E/S/RU, LC-46X20E/S/RU, LC-52XL2E/S/RU, LC-52X20E/S/RU
2 – 8

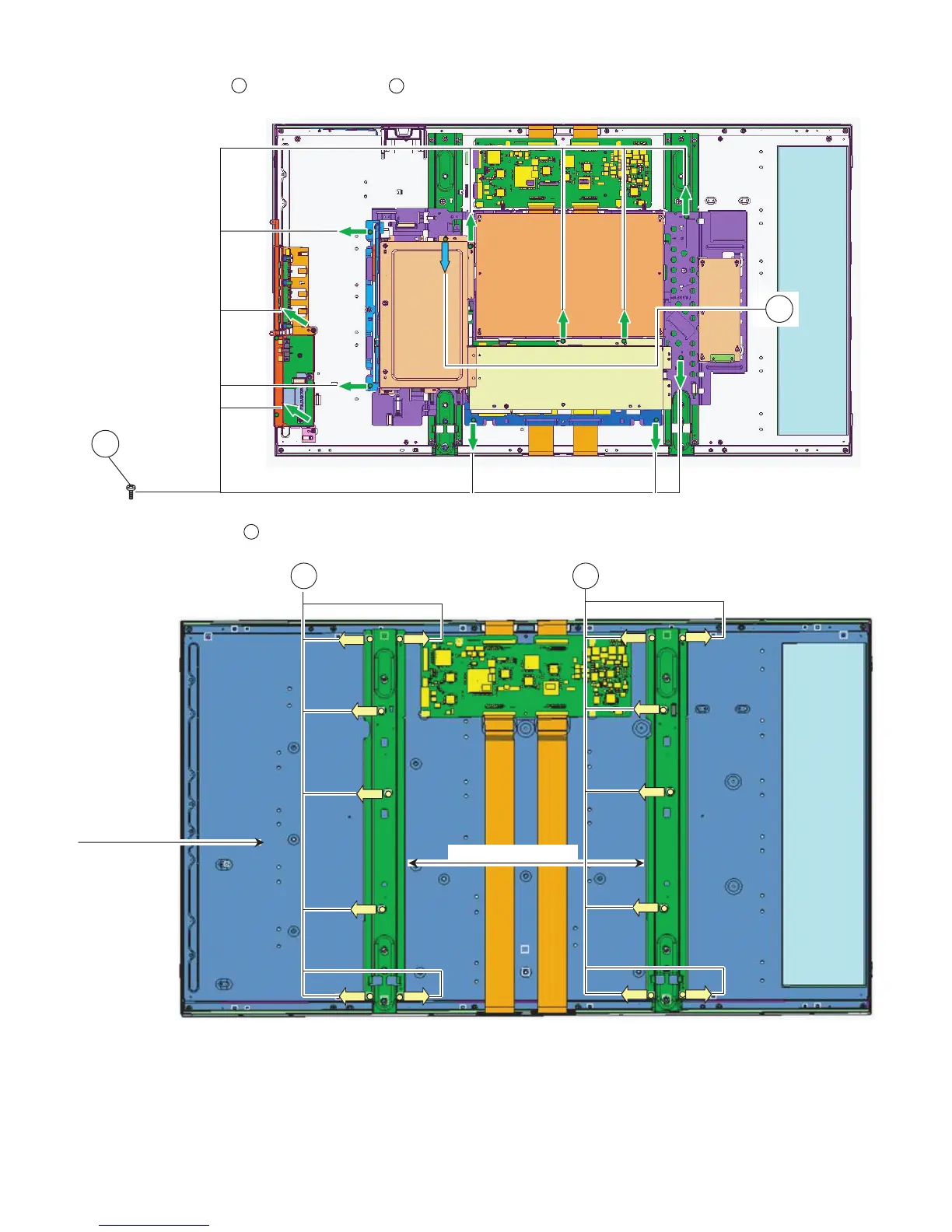

12.Remove the 1 lock screw , and the 11 lock screws . Detach the Chassis Tray and MINI AV Sub Ass’y.
13.Remove the 14 lock screws . and detach the Panel Support Angle.
10
11
11
10
12
PNL S UPPORT ANG
LCD MODULE
1212
