LC-42XL2E/S/RU, LC-46XL2E/S/RU, LC-46X20E/S/RU, LC-52XL2E/S/RU, LC-52X20E/S/RU
2 – 21

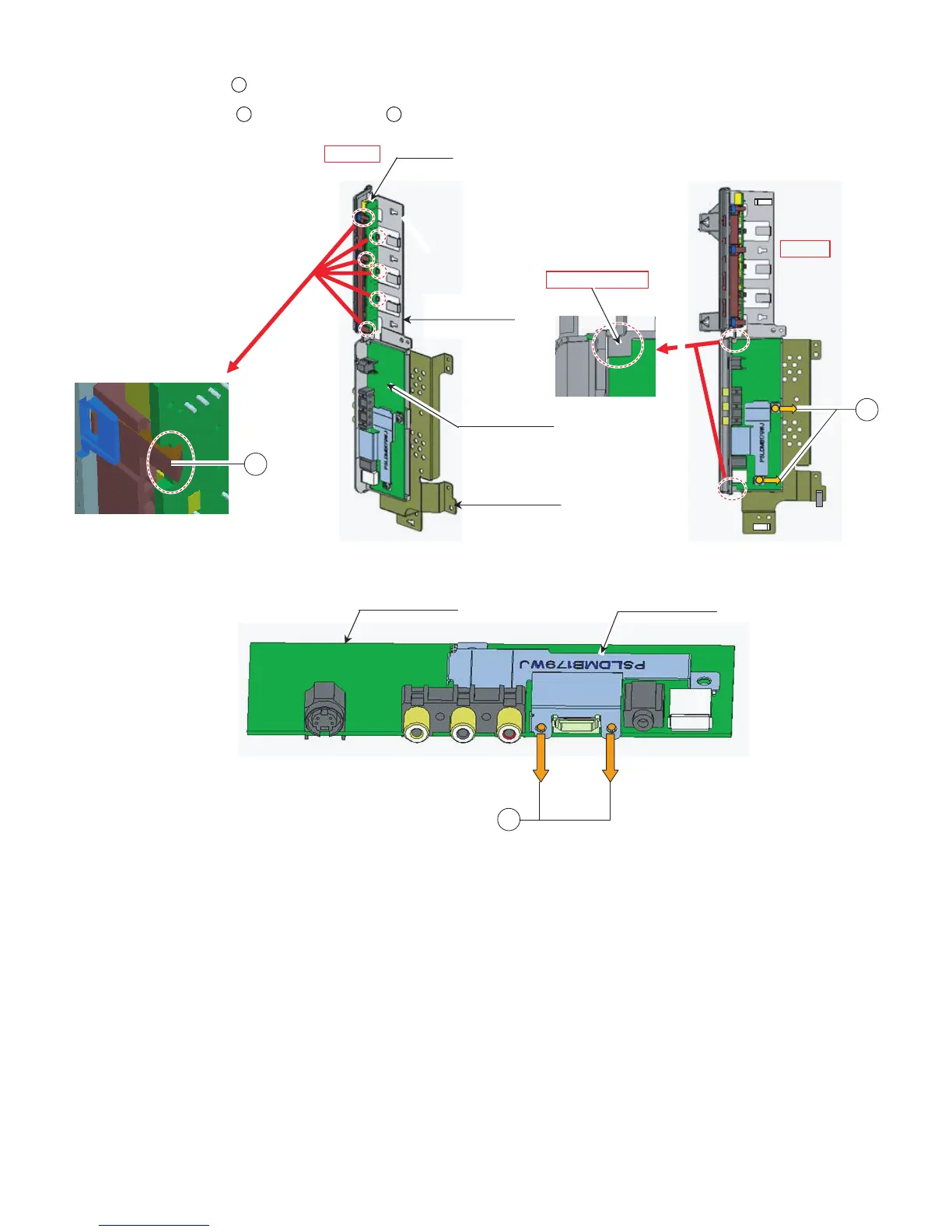

14.Remove the 6 lock hooks . and detach the KEY Unit.
15.Remove the 2 lock screws , and the 2 lock screws . Detach the MINI AV Unit.
12
13 14
M-AV KEY COV
KEY PWB
MINI AV PWB
MINI AV ANG
Slant View
Top View
#Set PWB under LIB
13
14
12
MINI AV PWB
MINI-AV SHIELD
