Sharp LC-42XL2S User Manual

LC-42XL2E/S/RU, LC-46XL2E/S/RU, LC-46X20E/S/RU, LC-52XL2E/S/RU, LC-52X20E/S/RU
2 – 40

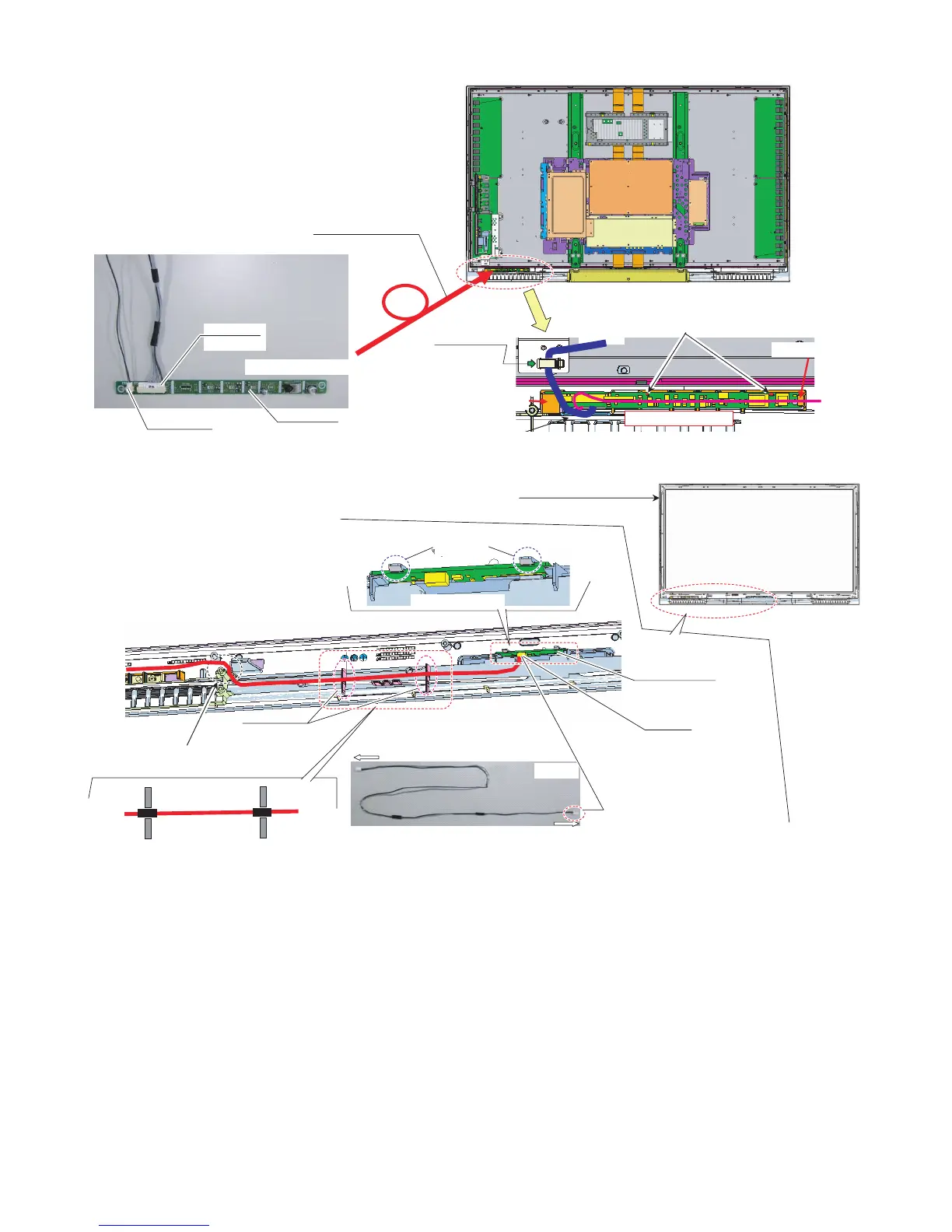

4. Remove all the connectors from PWBs.
5. Remove the R/C, LED Unit and Illumination Unit.
R/C, LED PWB
Wire "RA"
from OBON
Wire "IL"
from Illumination
R/C, LED PWB Front side
R/C, LED PWB
(with wire)
Wire "RA"
R/C, LED PWB Back side
Pull out Wire "RA" from bottom
Set R/C, LED PWB Under LIB
Next,Push PWB hooked
#Set PWB to gide lib surely
Wire "RA" to WH
Wire "IL"
#Please let the IL wire go
through over R/C, LED PWB.
FRONT CABINET
Wire "IL"
Wire "IL" to rib
Illumination Unit
Wire "IL"
#Hook Surely
#Connector side Down
#Wire "IL" pass between SP Boss
and Panel hooker
R/C, LED PWB side
Illumination Unit side
Wire "IL"
Wire "IL"
Lib
Lib
