Sharp LC-42XL2S - Page 74

LC-42XL2E/S/RU, LC-46XL2E/S/RU, LC-46X20E/S/RU, LC-52XL2E/S/RU, LC-52X20E/S/RU
2 – 57

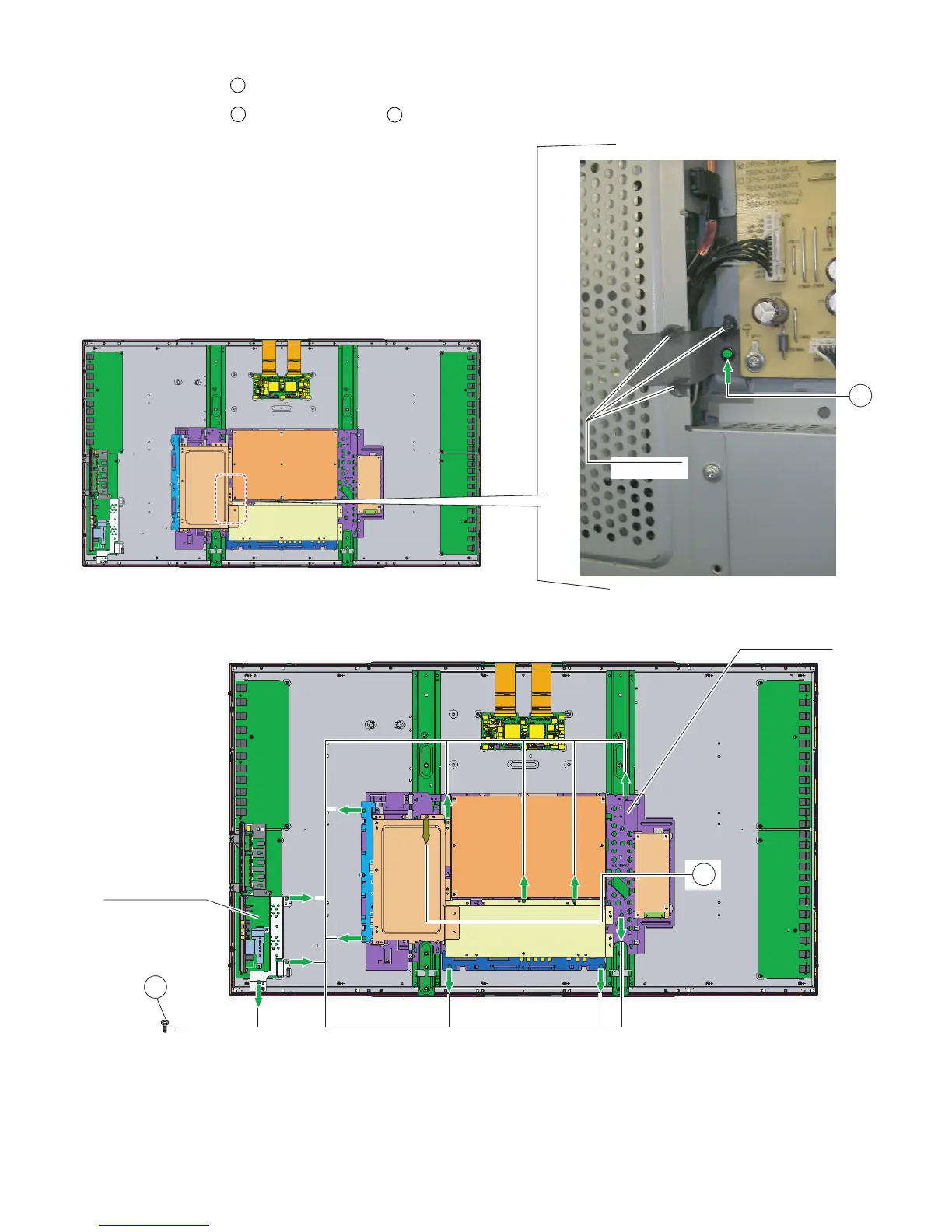

10.Remove all the connectors from PWBs.
11.Remove the 1 lock screw .
12.Remove the 1 lock screw , and the 12 lock screws . Detach the Chassis Tray and MINI AV Sub Ass’y.
10
11
12
Silicone Bond
10
12
11
MINI-AV SUB ASSY
CHASSIS TRAY
