99
6 x
L
R
Attaching/detaching the stand
ATTACHING THE STAND
Attaching the stand feet
To complete the stand feet installation you will require a cross head screw driver.
Screws that are included.
6 x
L
R
6 x
L
R
1
2

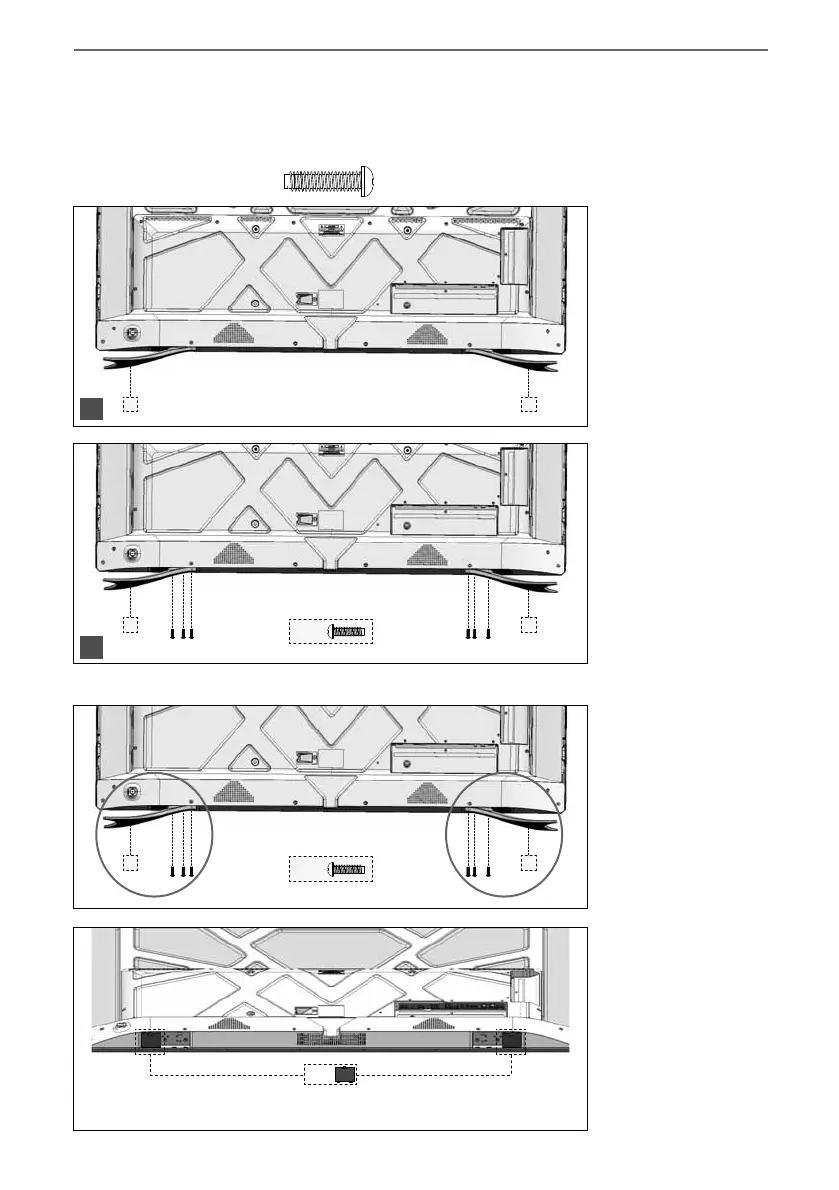

(fi g.1) Place the TV set on a
fl at and clean surface with
the panel facing downwards
to avoid damage, then fi x
the stand feet shown.
The feet are marked L (left)
and R (right).
(fi g.2) Secure the stand
feet to the underside
of the TV set using the6
screws provided.
Detaching the stand
2 x
Remove the screws
highlighted then remove
the stand feet from the
underside of the TV set.
When wall mounting the
TV set, we recommend
covering the openings, that
are used for connecting the
stand feet, at the underside
of your TV set by using the
wall mounting clips provided.
Sharp - User Guide - SHA-MAN-0228 - XUF8772ES.indd Sec1:9Sharp - User Guide - SHA-MAN-0228 - XUF8772ES.indd Sec1:9 27/04/2017 15:28:2927/04/2017 15:28:29
