Sharp LC-49CUF8472ES Service Manual

78
6.3.3 Upgrade interface and led ash mode

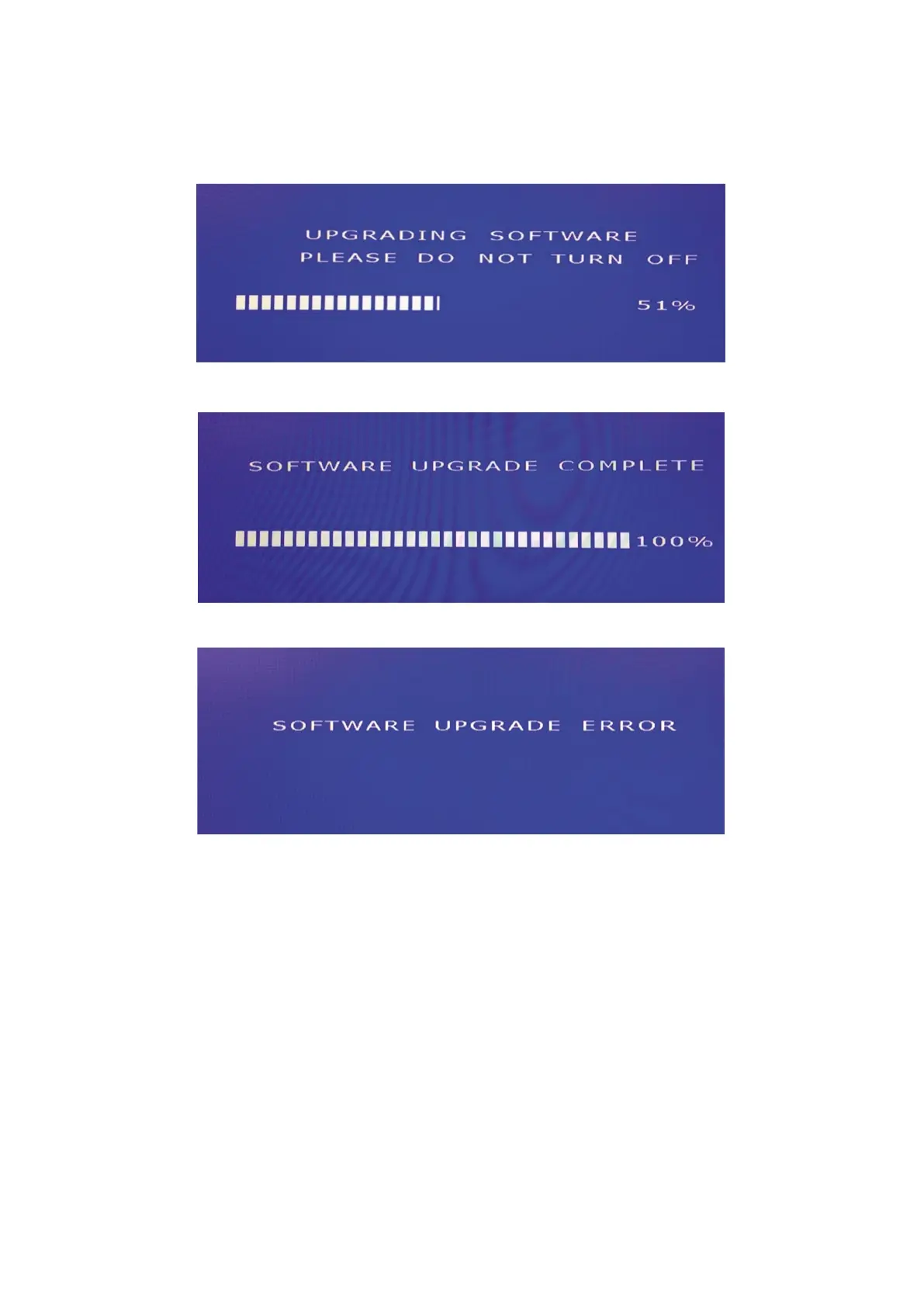

Upgrade interface
• Durning upgrade process, screen will display upgrade progress information.
• 100% mean the upgrade is complete,then pull out USB storage and restart TV.
• Error mean upgrade fail, we should try twice.
Led ash mode
Durning upgrade, we can know upgrade status by watching LED ash status.
Durning upgrade
RED 1000ms GREEN 1000ms ashing, until upgrade succeed or fail.
Upgrade succeed
RED 250ms GREEN 250ms ashing, Long time to blink until power o.
Upgrade fail
RED 1750ms GREEN 250ms ashing, Long time to blink until power o.
6.3.4 USB upgrade
User Menu Upgrade with USB
• Turn on the TV set
• Copy the bin le to the root directory of USB device
• Plug the USB device to the USB port
• Select "Software Update(USB)" on the OSD and follow the instructions. TV will switch-o
automatically

Sharp LC-49CUF8472ES Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	49 \
Display brightness	280 cd/m²
Display technology	LED
Native aspect ratio	16:9
LED backlighting type	Direct-LED
Contrast ratio (dynamic)	1000000:1
Display diagonal (metric)	123 cm
Motion interpolation technology	-
3D	No
Supported file systems	FAT16, FAT32, NTFS
Annual energy consumption	130 kWh
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (max)	140 W
Power consumption (standby)	0.5 W
Power consumption (typical)	115 W
Power consumption (PowerSave)	89 W
Tuner type	Analog & digital
Analog signal format system	PAL, SECAM
Digital signal format system	DVB-C, DVB-S, DVB-S2, DVB-T, DVB-T2, DVB-T2 HD
Audio decoders	DTS, Dolby Digital, DTS Studio Sound, Dolby Digital Plus
RMS rated power	20 W
Number of speakers	2
Video apps	YouTube
Product color	Black
Panel mounting interface	600 x 300 mm
Audio formats supported	AAC, AC3, EAC3, LPCM, M4A, MP3, OGG, WMA
Image formats supported	BMP, JPEG, JPG, PNG
Video formats supported	ASF, AVI, FLV, M2TS, M4V, MKV, MP4, MPG, RM, RMVB, SWF, TS, VOB, WMV
HDMI ports quantity	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Compatible memory cards	SD
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Sustainability certificates	ENERGY STAR
Certification	CE, CB
Package depth	138 mm
Package width	1205 mm
Package height	735 mm
Package weight	15100 g

Weight and Dimensions

Depth (with stand)	229.5 mm
Height (with stand)	845.4 mm
Depth (without stand)	68.7 mm
Width (without stand)	1098.5 mm
Height (without stand)	686.2 mm
Weight (without stand)	11500 g
