• after upgrading nished.
Factory Setting Upgrading
Operation Procedure
After Unzip the upgrade package, put the Unzip le “allupgrade_6488.bin” into USB ash disk on
root directory, and then insert the USB ash into board.
Press <menu>+1147 to enter the factory menu setting, search for the “SW UPGRADE” item by
scrolling up and down, and then elect to enter the SW upgrade mode.
Once enter SW upgrade mode please check whether the upgrade le was exist and the le name
was correct, and then select upgrade TV start to upgrade software.
Upgrade Prompt
• Turn o TV
• Copy upgrade le to USB storage Root directory
• Insert USB storage to TV
• Turn on TV, if upgrade le is correct, TV will start upgrade automatically.
• When upgrading, the TV set will light panel according to the panel parameter, and display the
progress bar. If the panel parameter of board matches the panel, you will see the

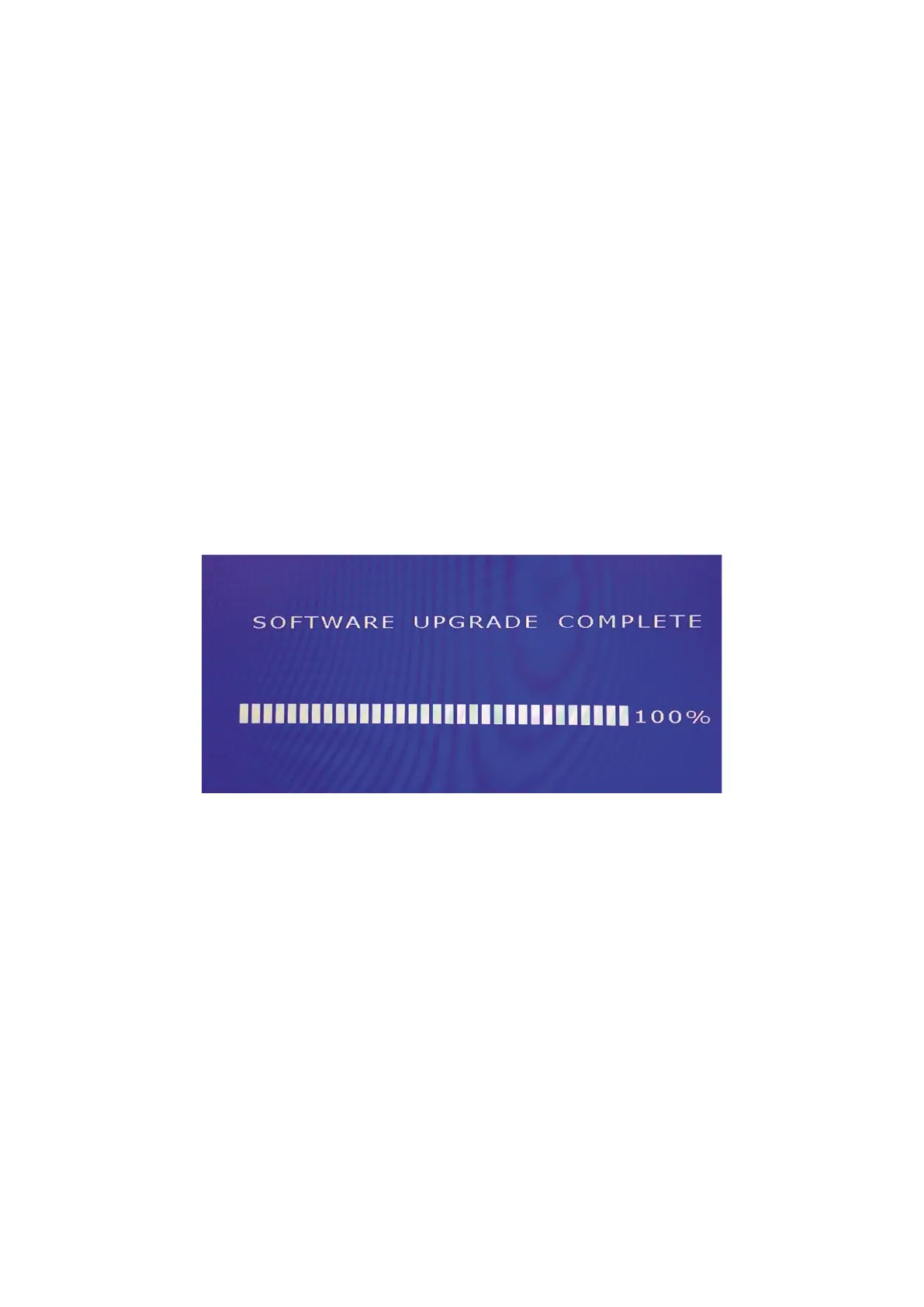

• following image:
• After upgrade succeed, please put o USB storage
• Restart TV.
6.3.5 Serial Upgrading
Tools prepare
Earphone Serial Port board: B.CNSISP7A
USB extension cord
Serial port tool software

Sharp LC-49CUF8472ES Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	49 \
Display brightness	280 cd/m²
Display technology	LED
Native aspect ratio	16:9
LED backlighting type	Direct-LED
Contrast ratio (dynamic)	1000000:1
Display diagonal (metric)	123 cm
Motion interpolation technology	-
3D	No
Supported file systems	FAT16, FAT32, NTFS
Annual energy consumption	130 kWh
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (max)	140 W
Power consumption (standby)	0.5 W
Power consumption (typical)	115 W
Power consumption (PowerSave)	89 W
Tuner type	Analog & digital
Analog signal format system	PAL, SECAM
Digital signal format system	DVB-C, DVB-S, DVB-S2, DVB-T, DVB-T2, DVB-T2 HD
Audio decoders	DTS, Dolby Digital, DTS Studio Sound, Dolby Digital Plus
RMS rated power	20 W
Number of speakers	2
Video apps	YouTube
Product color	Black
Panel mounting interface	600 x 300 mm
Audio formats supported	AAC, AC3, EAC3, LPCM, M4A, MP3, OGG, WMA
Image formats supported	BMP, JPEG, JPG, PNG
Video formats supported	ASF, AVI, FLV, M2TS, M4V, MKV, MP4, MPG, RM, RMVB, SWF, TS, VOB, WMV
HDMI ports quantity	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Compatible memory cards	SD
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Sustainability certificates	ENERGY STAR
Certification	CE, CB
Package depth	138 mm
Package width	1205 mm
Package height	735 mm
Package weight	15100 g

Weight and Dimensions

Depth (with stand)	229.5 mm
Height (with stand)	845.4 mm
Depth (without stand)	68.7 mm
Width (without stand)	1098.5 mm
Height (without stand)	686.2 mm
Weight (without stand)	11500 g
