Sharp LC-49CUF8472ES Service Manual

80

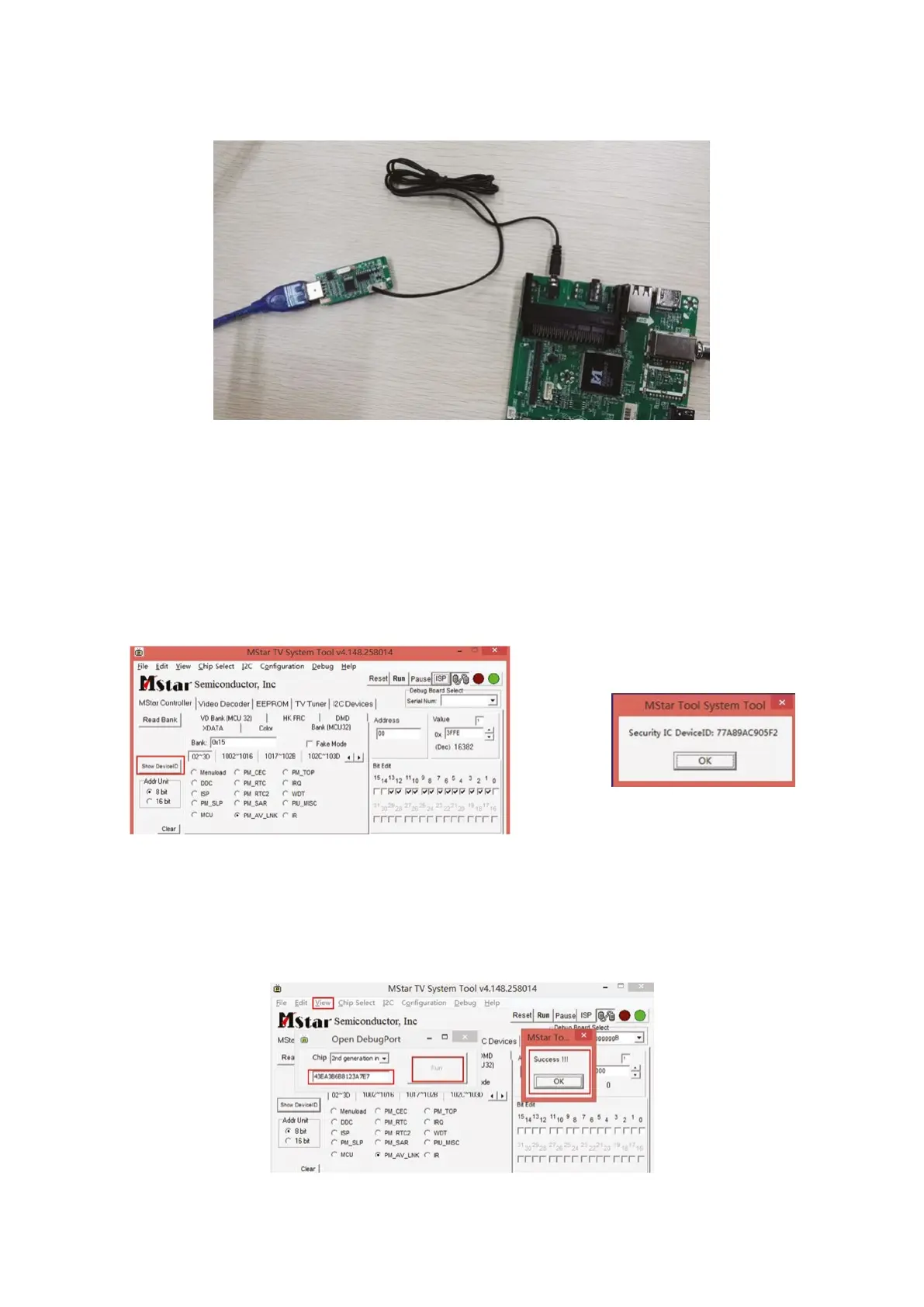

Connect method
connect method follow next image
Operation Procedure
Use tool and les in 加密芯片_muji.rar or 加密芯片_Manhattan.rar
1. Connect the Uart debug tool, Disconnect the tool which you used to get log information.
2. Open the MSTV_Tool.exe.
3. Press the button“Show Device ID” to show the Device ID.
4. Connect the Uart debug tool, Disconnect the tool which you used to get log information.
5. Open the MSTV_Tool.exe.
6. Press the button “Show Device ID” to show the Device ID.
7. please send you device ID to us (xinzhaoqiang@cvte.com) ,we will send the key to you.
8. Select View->OpenDebugPort and enter the OpenDebugPort menu, input the key string you
get in step4 at the OpenDebugPort menu and press Run button of the OpenDebugPort
menu. Check and make sure run successfully.

Sharp LC-49CUF8472ES Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	49 \
Display brightness	280 cd/m²
Display technology	LED
Native aspect ratio	16:9
LED backlighting type	Direct-LED
Contrast ratio (dynamic)	1000000:1
Display diagonal (metric)	123 cm
Motion interpolation technology	-
3D	No
Supported file systems	FAT16, FAT32, NTFS
Annual energy consumption	130 kWh
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (max)	140 W
Power consumption (standby)	0.5 W
Power consumption (typical)	115 W
Power consumption (PowerSave)	89 W
Tuner type	Analog & digital
Analog signal format system	PAL, SECAM
Digital signal format system	DVB-C, DVB-S, DVB-S2, DVB-T, DVB-T2, DVB-T2 HD
Audio decoders	DTS, Dolby Digital, DTS Studio Sound, Dolby Digital Plus
RMS rated power	20 W
Number of speakers	2
Video apps	YouTube
Product color	Black
Panel mounting interface	600 x 300 mm
Audio formats supported	AAC, AC3, EAC3, LPCM, M4A, MP3, OGG, WMA
Image formats supported	BMP, JPEG, JPG, PNG
Video formats supported	ASF, AVI, FLV, M2TS, M4V, MKV, MP4, MPG, RM, RMVB, SWF, TS, VOB, WMV
HDMI ports quantity	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Compatible memory cards	SD
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Sustainability certificates	ENERGY STAR
Certification	CE, CB
Package depth	138 mm
Package width	1205 mm
Package height	735 mm
Package weight	15100 g

Weight and Dimensions

Depth (with stand)	229.5 mm
Height (with stand)	845.4 mm
Depth (without stand)	68.7 mm
Width (without stand)	1098.5 mm
Height (without stand)	686.2 mm
Weight (without stand)	11500 g
