LC-50LB150U Sharp 50" LED TV
www.sharpusa.com

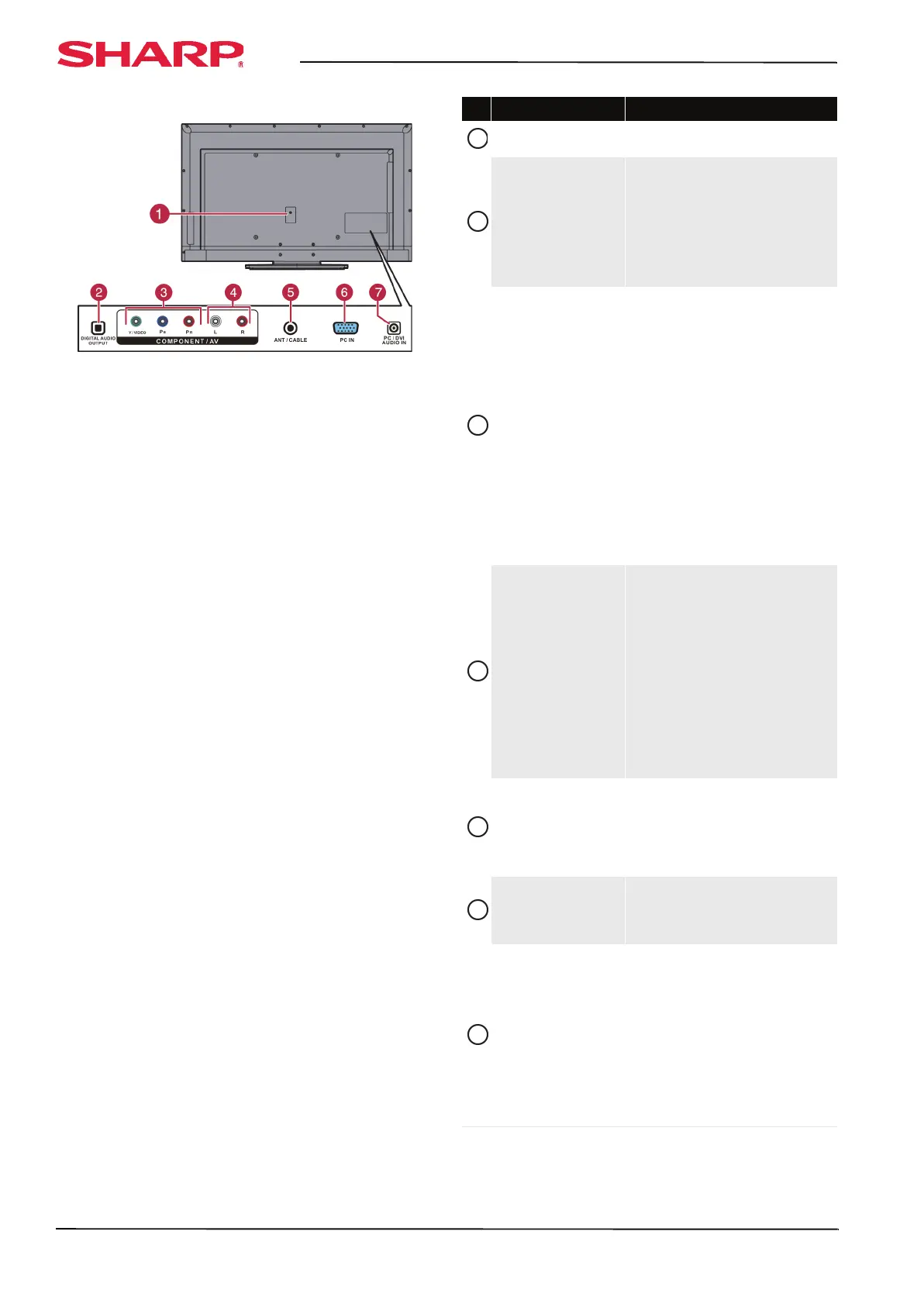

Back
# Item Description
Power connector
Plug the power cord into this
connector.
DIGITAL AUDIO
OUTPUT (optical)
Connect a digital audio
amplifier, a home theater
system, or a sound bar to this
jack to listen to TV audio
through the external speakers.
For more information, see
“Using digital audio” on
page 33.
COMPONENT/AV
Y/VIDEO, P
B, PR
OR
COMPONENT/AV
Y/VIDEO
The COMPONENT/AV Y/VIDEO
jack works as one of the three
component video jacks or as a
composite video jack.
Connect the video for a
component video device to
these jacks. For more
information, see “Using
component video (better)” on
page 16, 22, or 26.
OR
Connect the video for a
composite video device to the
COMPONENT/AV Y/VIDEO
jack. For more information, see
“Using composite video (good)”
on page 17, 23, or 27.
L and R (audio)
Connect the audio for a
component video device to
these jacks. For more
information, see “Using
component video (better)” on
page 16, 22, or 26.
OR
Connect the audio for a
composite video device to
these jacks. For more
information, see “Using
composite video (good)” on
page 17, 23, or 27.
ANT/CABLE
Connect an antenna or cable TV
to this jack. For more
information, see “Using coaxial
(good)” on page 18 or
“Connecting an antenna or
cable TV (no box)” on page 19.
PC IN
Connect the video (VGA) for a
computer to this jack. For more
information, see “Using VGA
(most common)” on page 28.
PC/DVI AUDIO IN
Connect the audio for a
computer to this jack. For more
information see “Using VGA
(most common)” on page 28.
OR
Connect the audio for a DVI
device to this jack. For more
information see, “Using DVI
(same as HDMI but requires an
audio connection)” on
pages 15, 21, or 30.
1
2
3
4
5
6
7

Sharp LC-50LB150U Specifications

General

Brand	Sharp
Model	LC-50LB150U
Category	LED TV
Language	English
