LC-60/70LE660U,C6600U
4 – 4
4. Removing LCD CONTROL Unit, MAIN Unit, POWER/LED DRIVER Unit, Stand Fix Angle Ass'y and VESA
Angle Ass'y

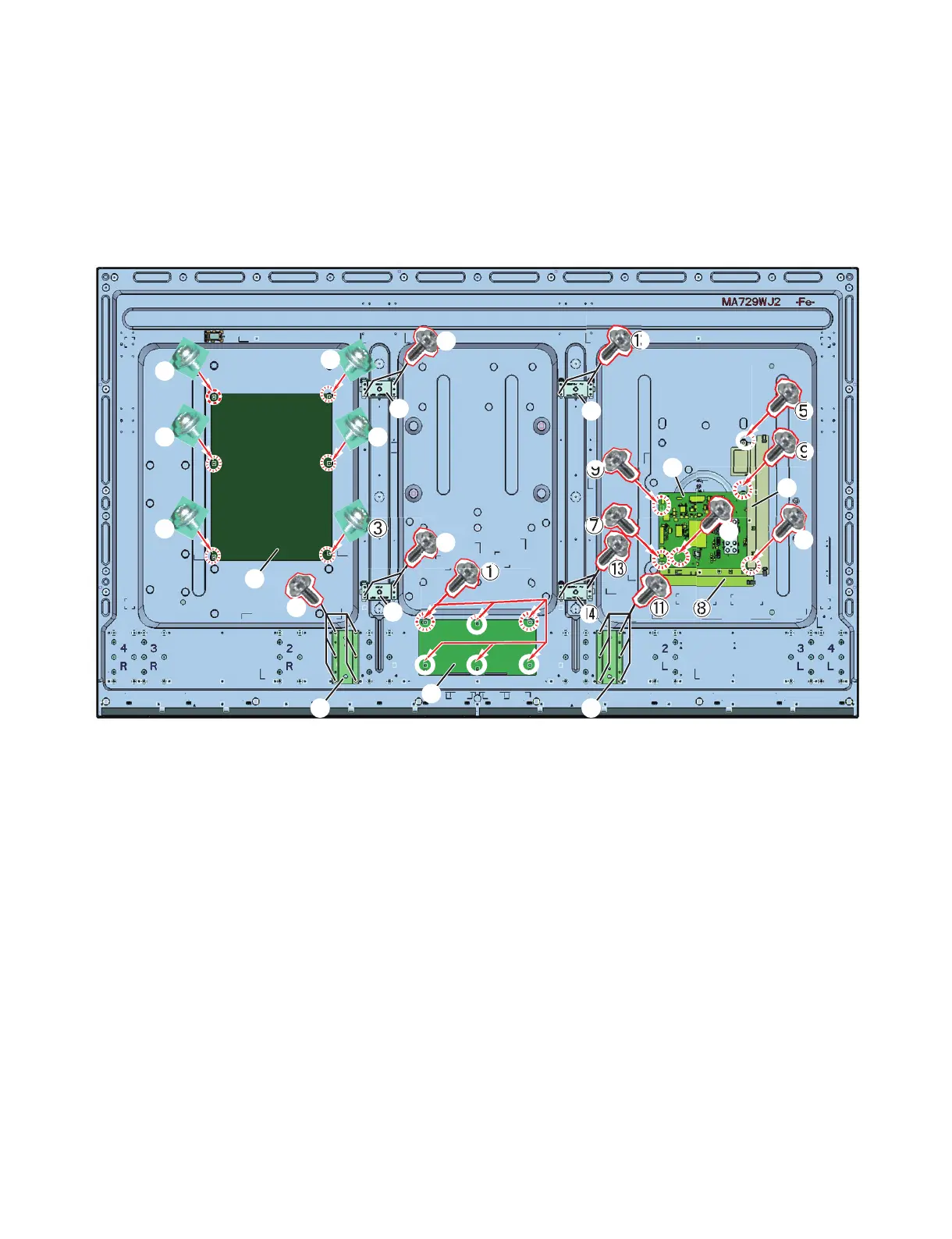

1. Remove the 6 lock screws (1) and detach the LCD CONTROL Unit (2).
2. Remove the 6 lock screws (3) and detach the POWER/LED DRIVER Unit (4).
3. Remove the 2 lock screws (5) and detach the Terminal Angle (Side) (6).
4. Remove the 1 lock screw (7) and detach the Terminal Angle (Bottom) (8).
5. Remove the 3 lock screws (9) and detach the MAIN Unit (10)
6. Remove the 12 lock screws (11) and detach 2 Stand Fix Angle Ass'y (12)
7. Remove the 8 lock screws (13) and detach 4 VESA Angle Ass'y (14)
